Diagnostic Procedure

CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I

Select "LOAD SIGNAL" and check indication under the following conditions.

SWITCH CONDITION TEST REFERENCE CHART

Condition	Indication
Rear window defogger switch ON	ON
Rear window defogger switch OFF	OFF

OK or NG

OK: GO TO 2.
NG: GO TO 3.

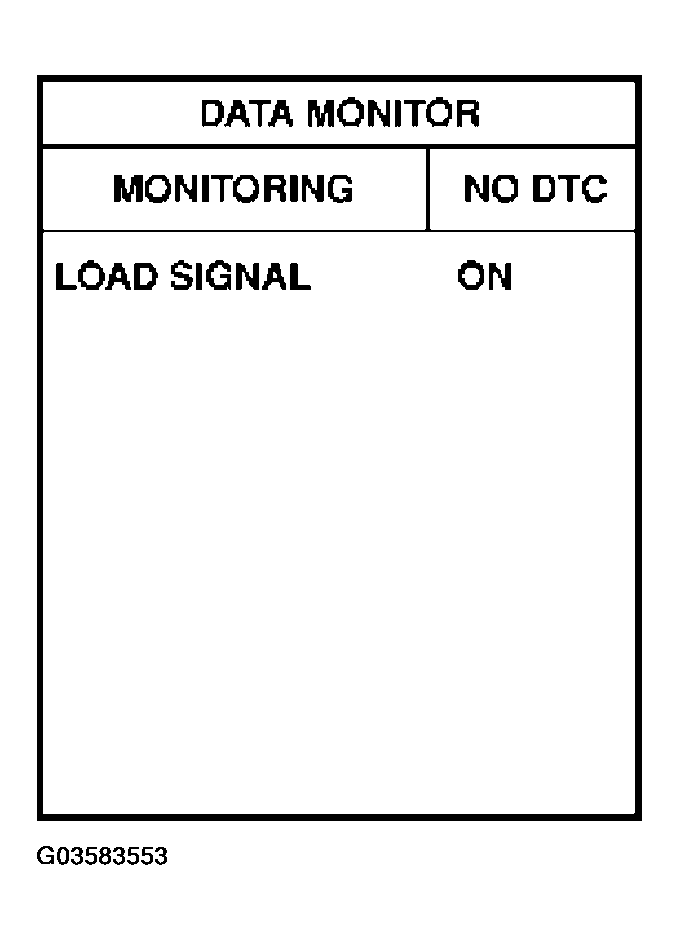

Fig 1: Consult-II Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II

Check "LOAD SIGNAL" indication under the following conditions.

SWITCH CONDITION TEST REFERENCE CHART

Condition	Indication
Lighting switch ON at 2nd position	ON
Lighting switch OFF	OFF

OK or NG

OK: INSPECTION END
NG: GO TO 4.

Fig 2: Consult-II Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK REAR WINDOW DEFOGGER SYSTEM
Refer to REAR WINDOW DEFOGGER - G35 COUPE article in ACCESSORIES & EQUIPMENT.
1. : INSPECTION END
CHECK HEADLAMP SYSTEM
Refer to HEADLAMP (FOR USA) - COUPE or HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM - G35 COUPE article.
1. : INSPECTION END
