Inspection Procedure

1. Turn ignition switch OFF.
2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to data link connector, which is located under LH dash panel near the hood opener handle.
3. Turn ignition switch ON.

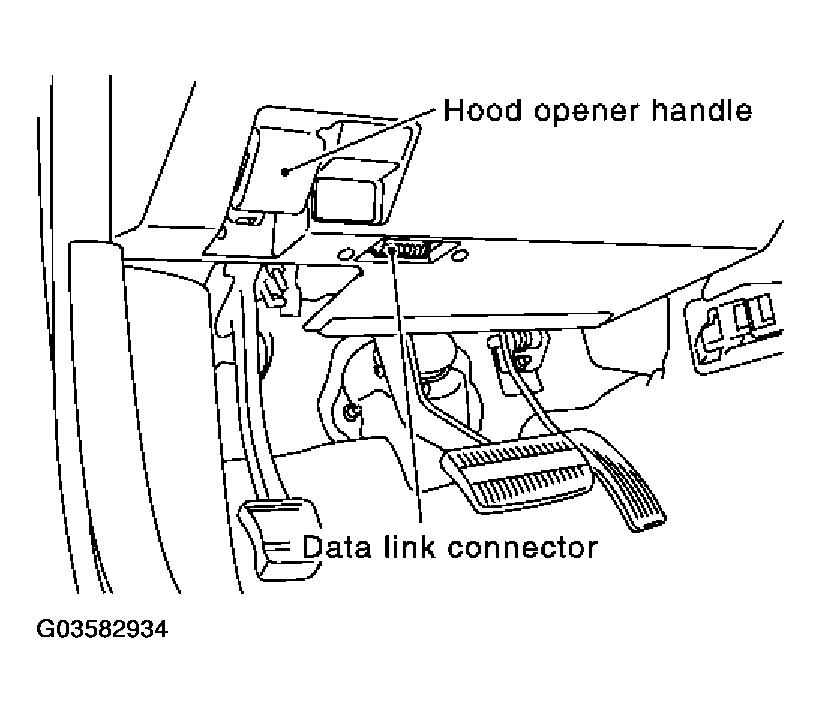

   Fig 1: Locating Data Link Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Touch "START (NISSAN BASED VHCL)".

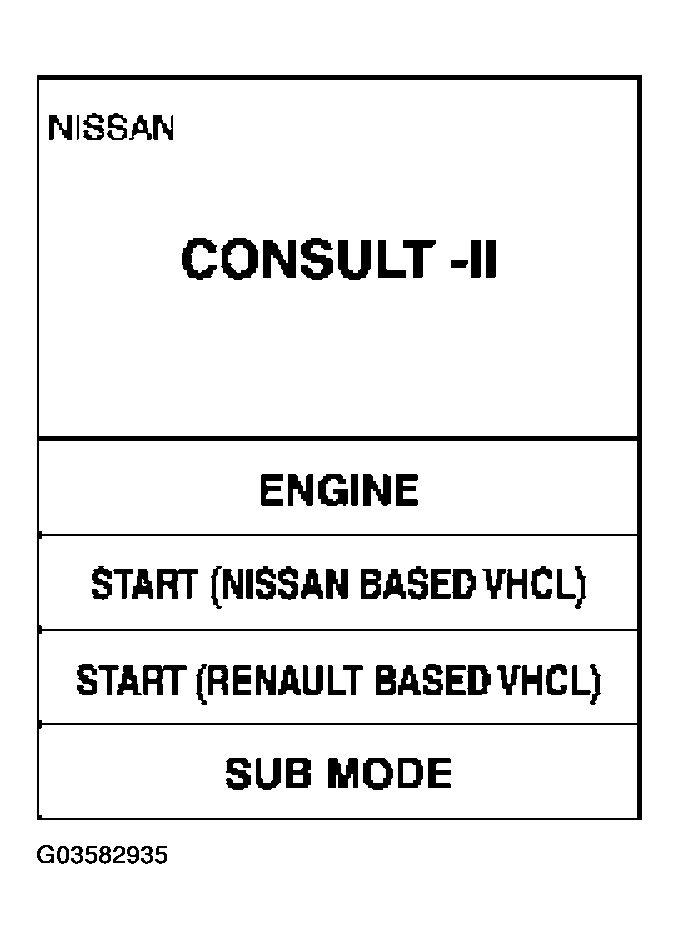

   Fig 2: Displaying "START (NISSAN BASED VHCL)"

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Touch "ENGINE".

   If "ENGINE" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT in GENERAL INFORMATION article.

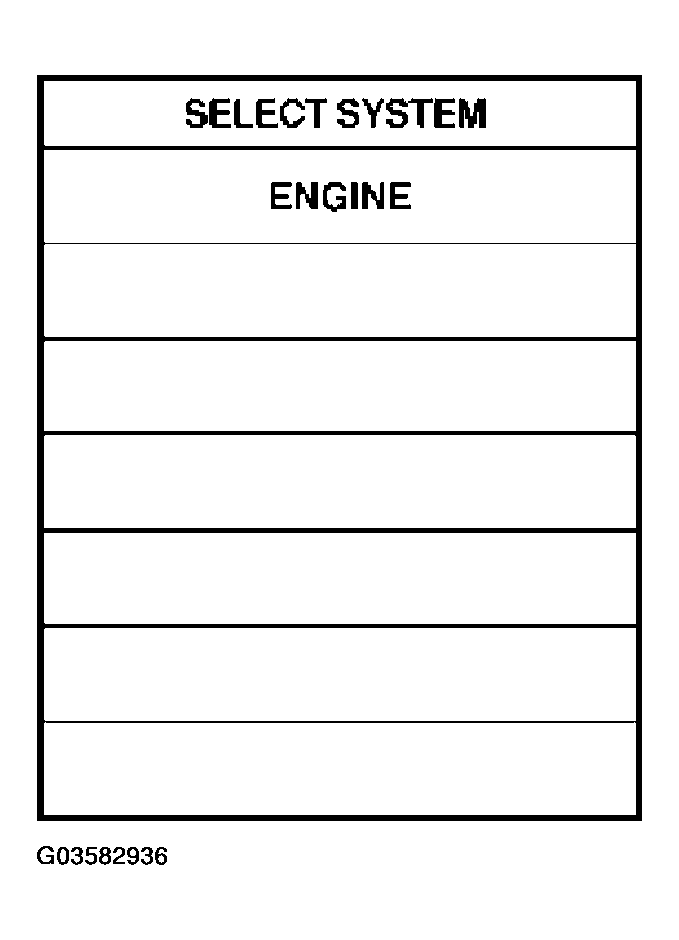

   Fig 3: Displaying Select System Mode

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Perform each diagnostic test mode according to each service procedure.

For further information, see the .

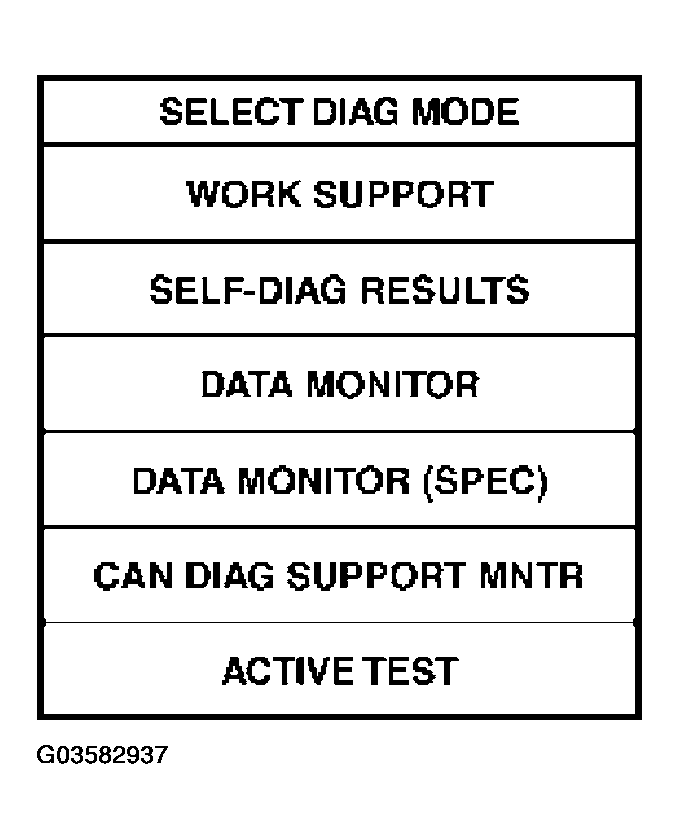

Fig 4: Displaying Select Diag Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
