Stop Lamp Switch (For A/T Models)

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.
    STOP LAMP SWITCH CONTINUITY TEST CONDITION CHART

    Condition Continuity
    When brake pedal is fully released. Should not exist.
    When brake pedal is depressed. Should exist.

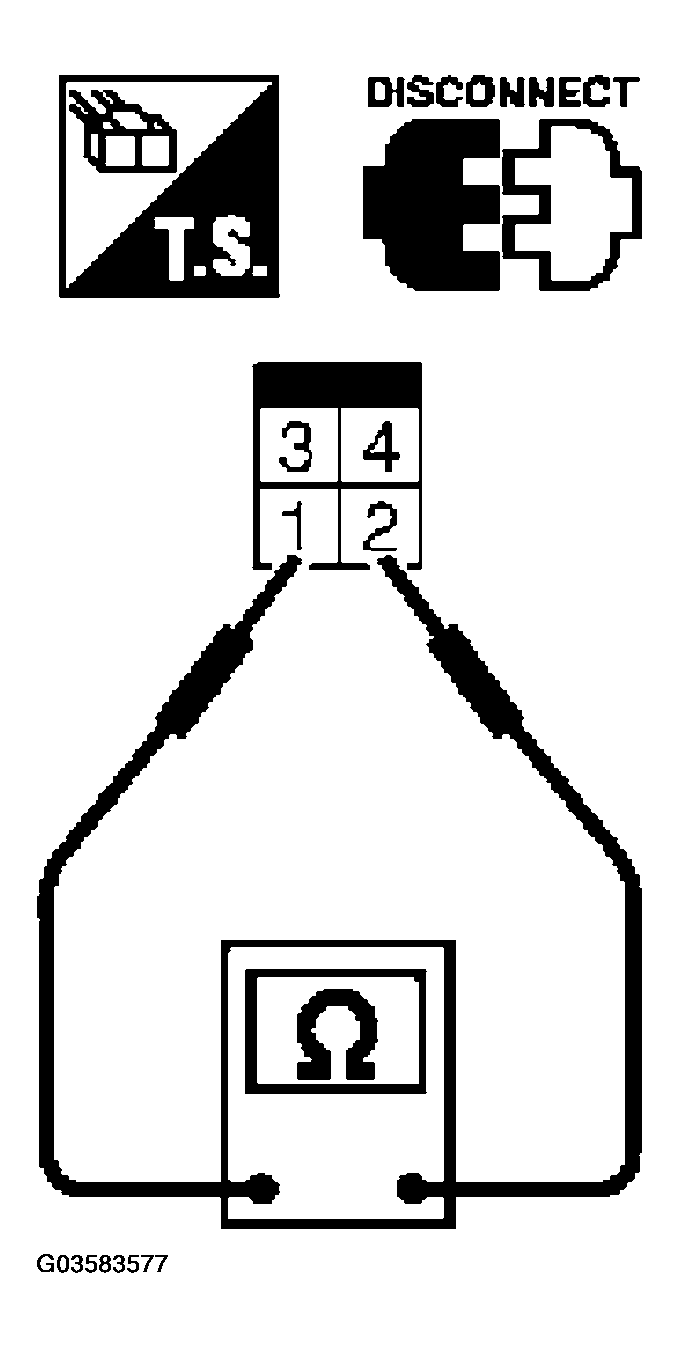

    Fig 1: Checking Harness Continuity Between Stop Lamp Switch Terminals 1 And 2 (4-Terminal - A/T)
    G03583577Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, adjust stop lamp switch installation, and perform step 3 again.
