Ignition Coil With Power Transistor

  1. Turn ignition switch OFF.
  2. Disconnect ignition coil harness connector.
  3. Check resistance between ignition coil terminals as follows.
    COIL RESISTANCE REFERENCE CHART

    Terminal No. (Polarity) Resistance Ω [at 25°C (77°F)]
    1 and 2 Except 0 or "INFINITY"
    1 and 3 Except 0
    2 and 3

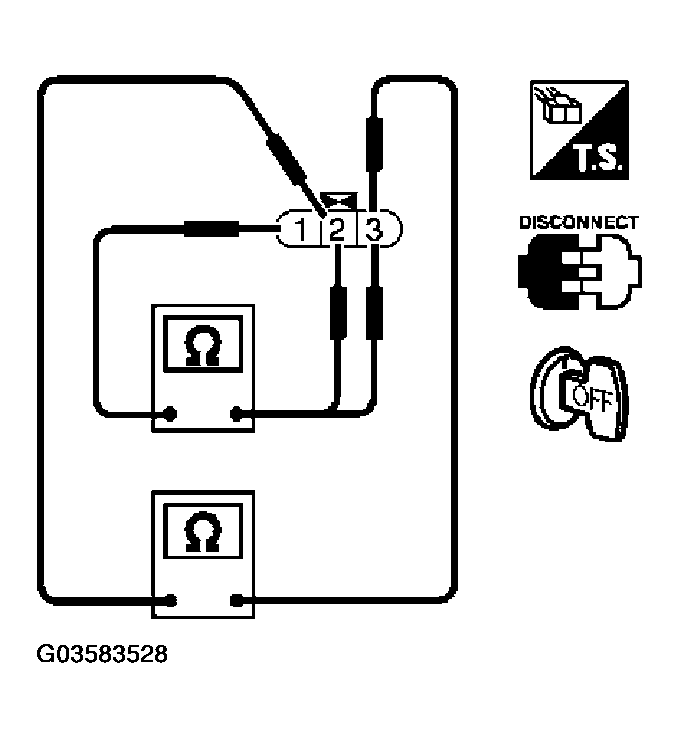

    Fig 1: Checking Resistance Between Ignition Coil Terminals
    G03583528Courtesy of NISSAN MOTOR CO., U.S.A.
