Vacuum Hose Drawing

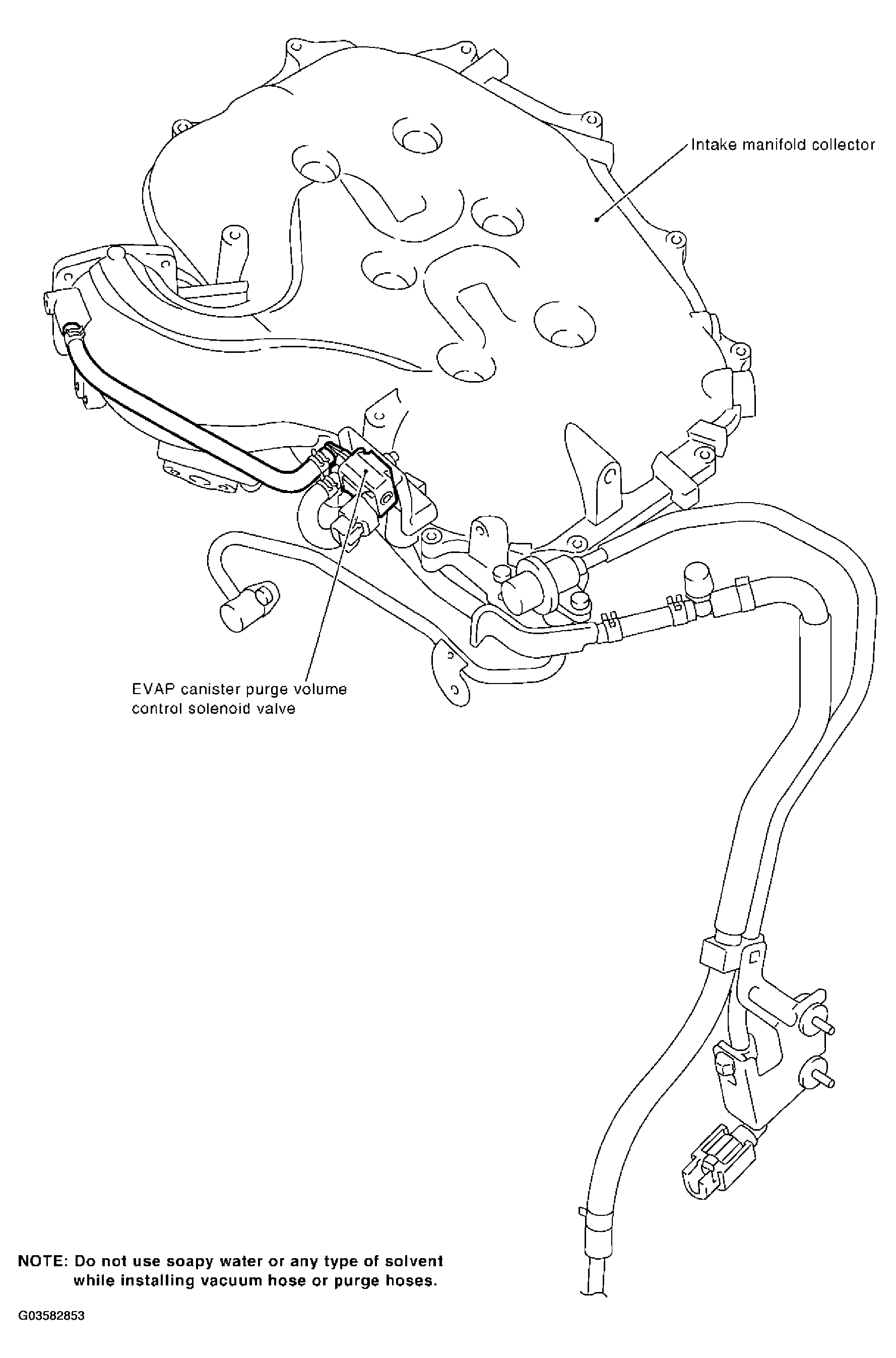

Fig 1: Vacuum Hose Diagram
G03582853Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to " SYSTEM DIAGRAM  " for Vacuum Control System.
