Generic Scan Tool (GST) Function: Description

Generic Scan Tool (OBDII scan tool) complying with SAE J1978 has 8 different functions explained below.

ISO9141 is used as the protocol.

The name "GST" or "Generic Scan Tool" is used in this service manual.

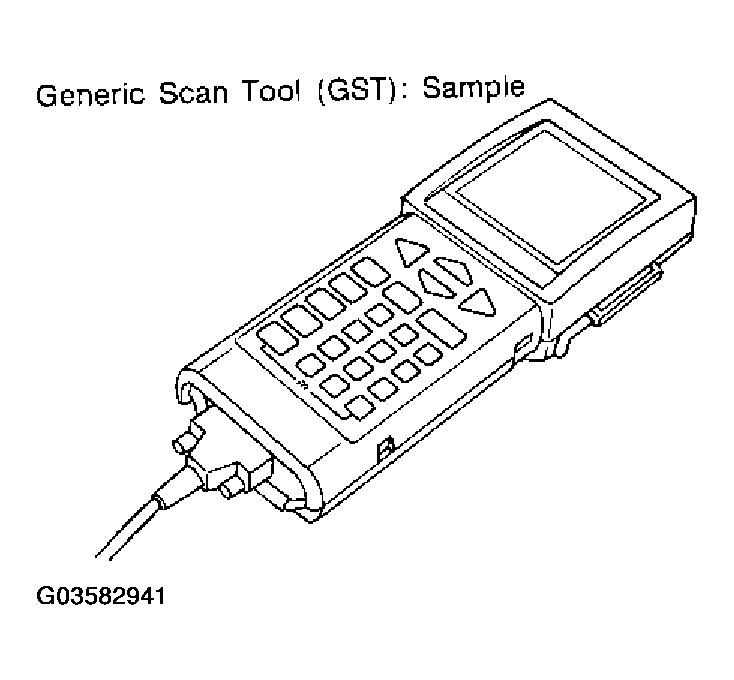

Fig 1: Generic Scan Tool (GST)

Courtesy of NISSAN MOTOR CO., U.S.A.
