Inspection Procedure

Turn ignition switch OFF.
Connect "GST" to data link connector, which is located under LH dash panel near the hood opener handle.

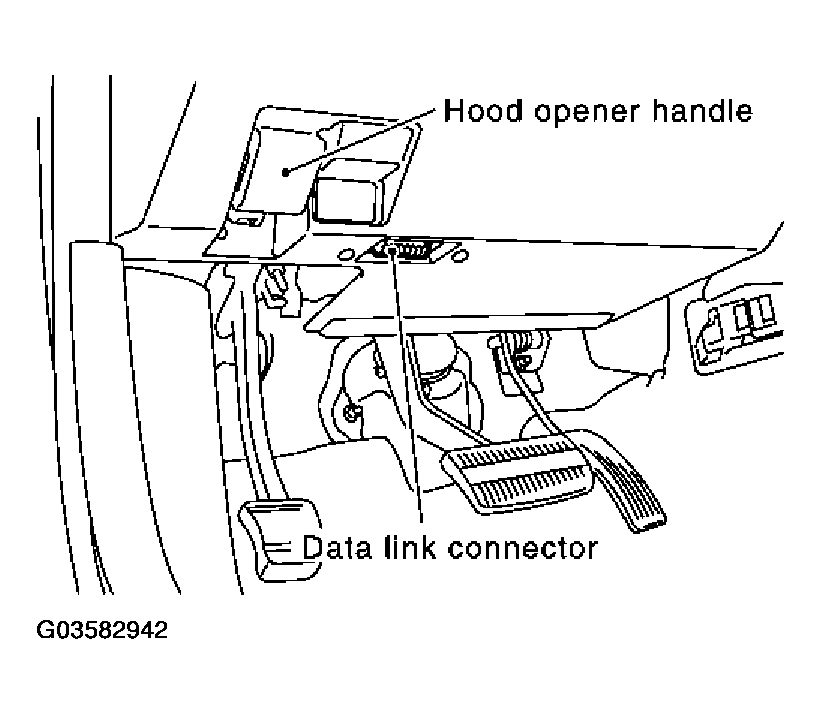

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this section, sample screens are shown.)

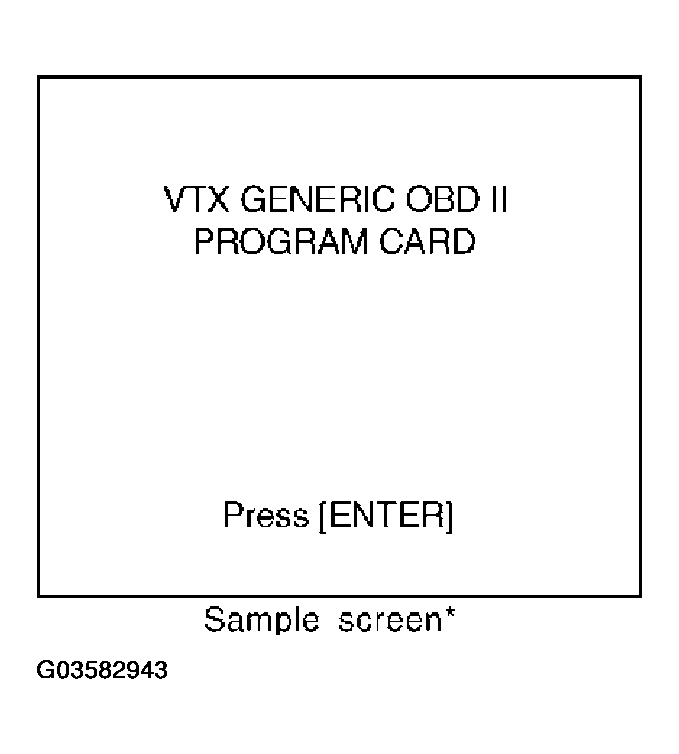

Fig 2: Displaying Sample GST Screens
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic mode according to each service procedure.
For further information, see the Operation Manual of the tool maker .

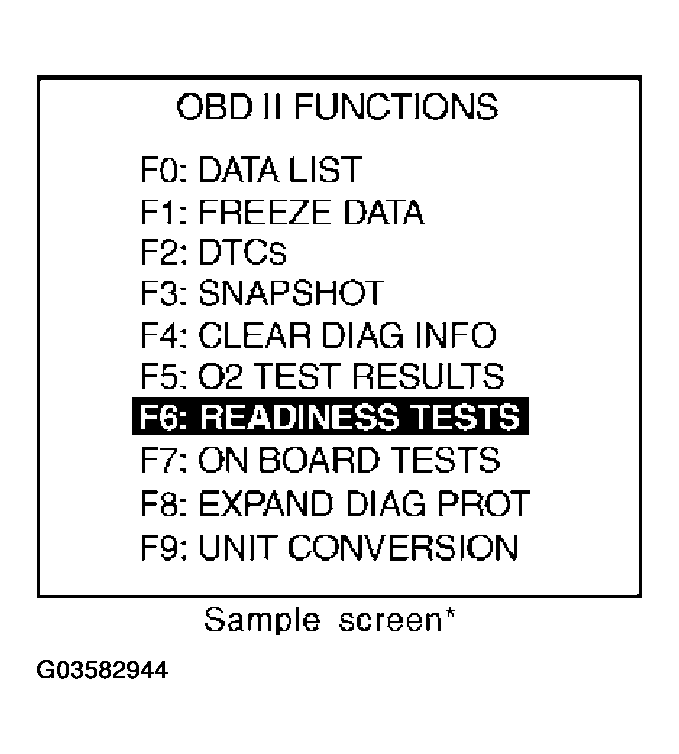

Fig 3: Displaying Service Procedures
Courtesy of NISSAN MOTOR CO., U.S.A.
