Stop Lamp Switch

Turn ignition switch OFF.
Disconnect stop lamp switch harness connector.
Check harness continuity between stop lamp switch terminals 3 and 4 under the following conditions.

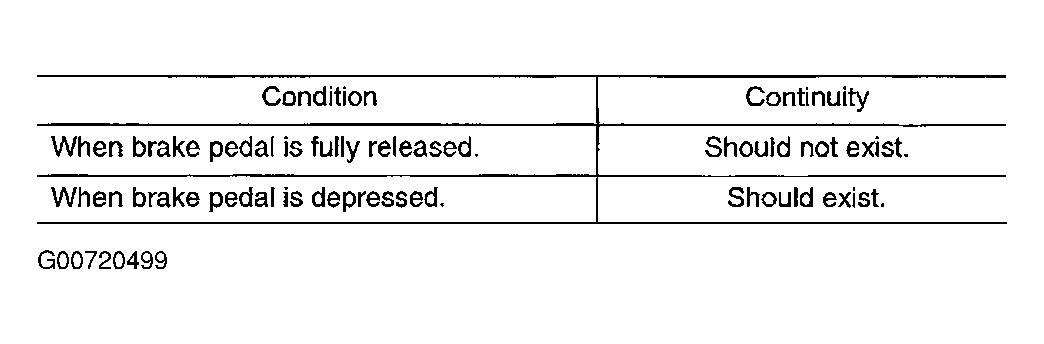

Fig 1: Stop Lamp Switch Terminals 3 And 4 Continuity Table
Courtesy of NISSAN MOTOR CO., U.S.A.

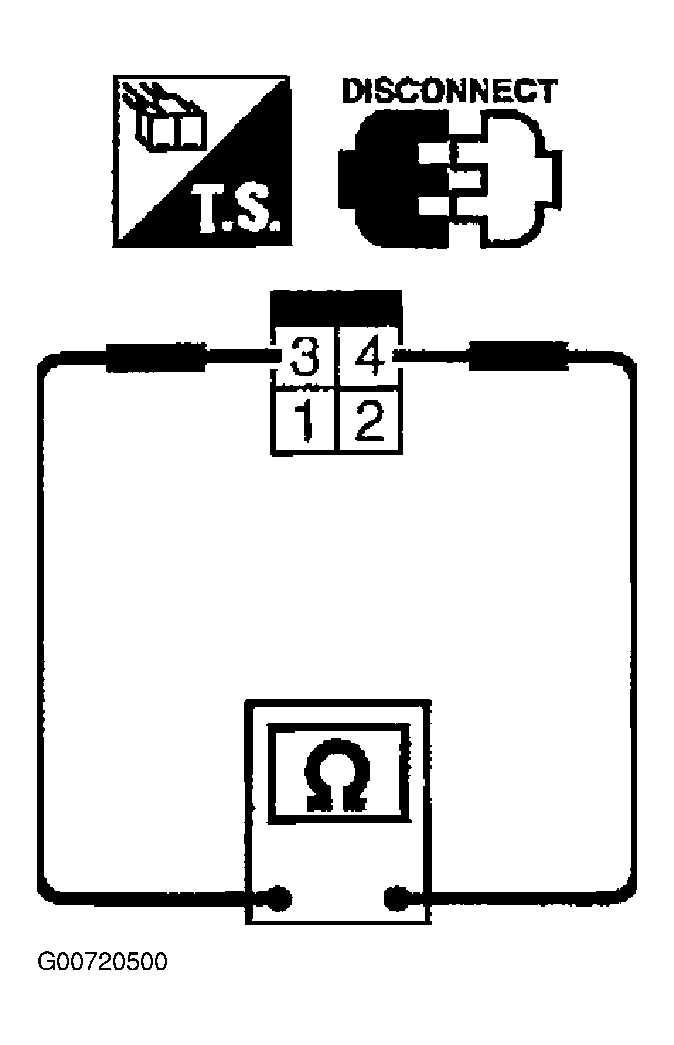

Fig 2: Checking Harness Continuity Between Stop Lamp Switch Terminals 3 And 4
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust stop lamp switch installation, refer to , and perform step 3 again.
