CONSULT-II Reference Value In Data Monitor Mode

Specification data are reference values. See Fig 1 .

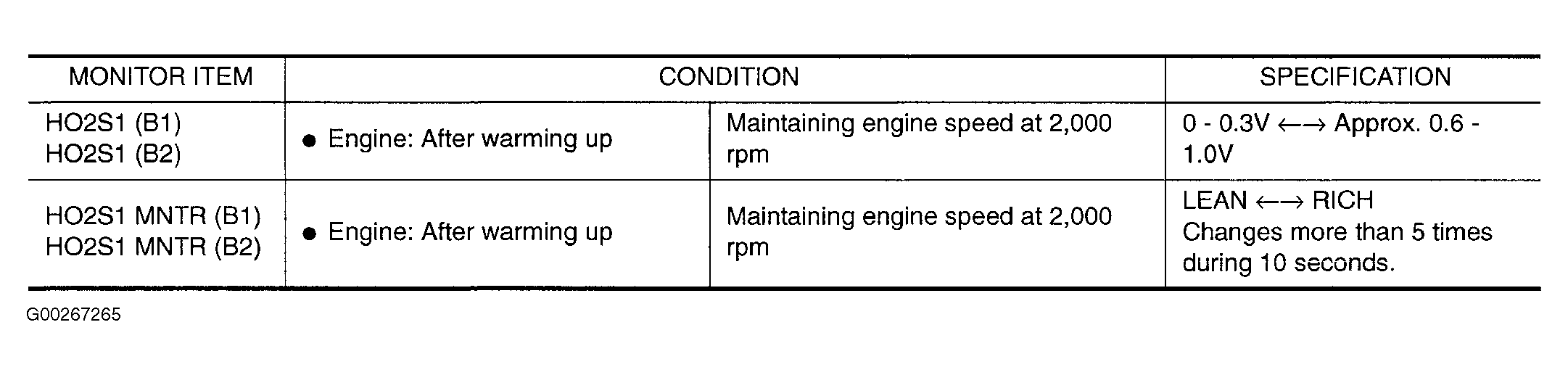

Fig 1: DTCs P0132, P0133, P0152 Or P0153 Data Monitor Mode Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.
