Setting SRT Codes
- If using CONSULT-II, go to next step. If using generic scan tool, go to step 3 .
- Perform corresponding DTC CONFIRMATION TEST one by one based on PRIORITY in SRT PRIORITY table.

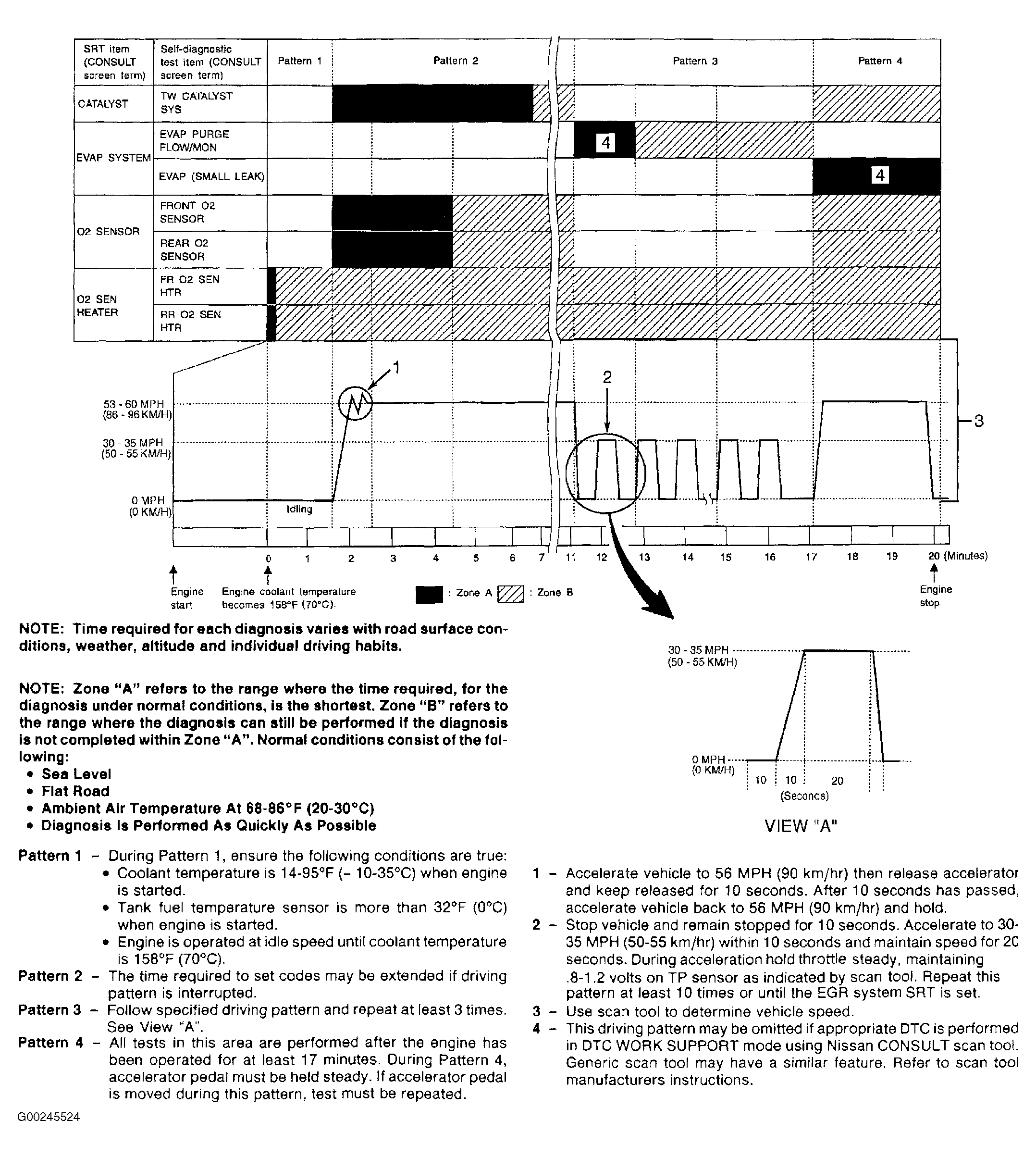

- To set all SRT codes as complete, drive vehicle according to procedure shown in illustration. See Fig 1 . Perform driving procedure one or more times. If driving procedure is interrupted, repeat procedure.
SRT PRIORITY
| SRT Item (Display On CONSULT-II) | Priority | Corresponding DTC Confirmation Test(s) |
|---|---|---|
| CATALYST | 2 | P0420 & P0430 |
| EVAP SYSTEM | 1 | P0442 |
| EVAP SYSTEM | 2 | P0441 & P0456 |
| O2 SENSOR | 2 | P0132, P0133, P0134, P0138, P0139, P0152, P0153, P0154, P0158, P0159, P1143, P1144, P1146, P1147, P1163, P1164, P1166 & P1167 |
| O2 SEN HEATER | 2 | P0031, P0032, P0037, P0038, P0051, P0052, P0057 & P0058 |
