KEYFOB Battery And Function Check

CHECK KEYFOB BATTERY
NOTE: Keyfob does not function if battery is not set correctly.

Remove battery and measure voltage across battery positive and negative terminals, (+) and (-).
1. Voltage [V]:
  1. 2.5 - 3.0

    Fig 1: Checking Keyfob Battery
    Courtesy of NISSAN MOTOR CO., U.S.A.
1. OK or NG
OK GO TO 2.

NG Replace battery.
CHECK KEYFOB FUNCTION
With CONSULT-II

Check keyfob function ("LK BUTTON/SIG", "UN BUTTON/SIG", "TRUNK BTN/SIG", "PANIC BTN", "UN BUTTON ON" and "LK/UN BTN ON") in "DATA MONITOR" mode with CONSULT-II.

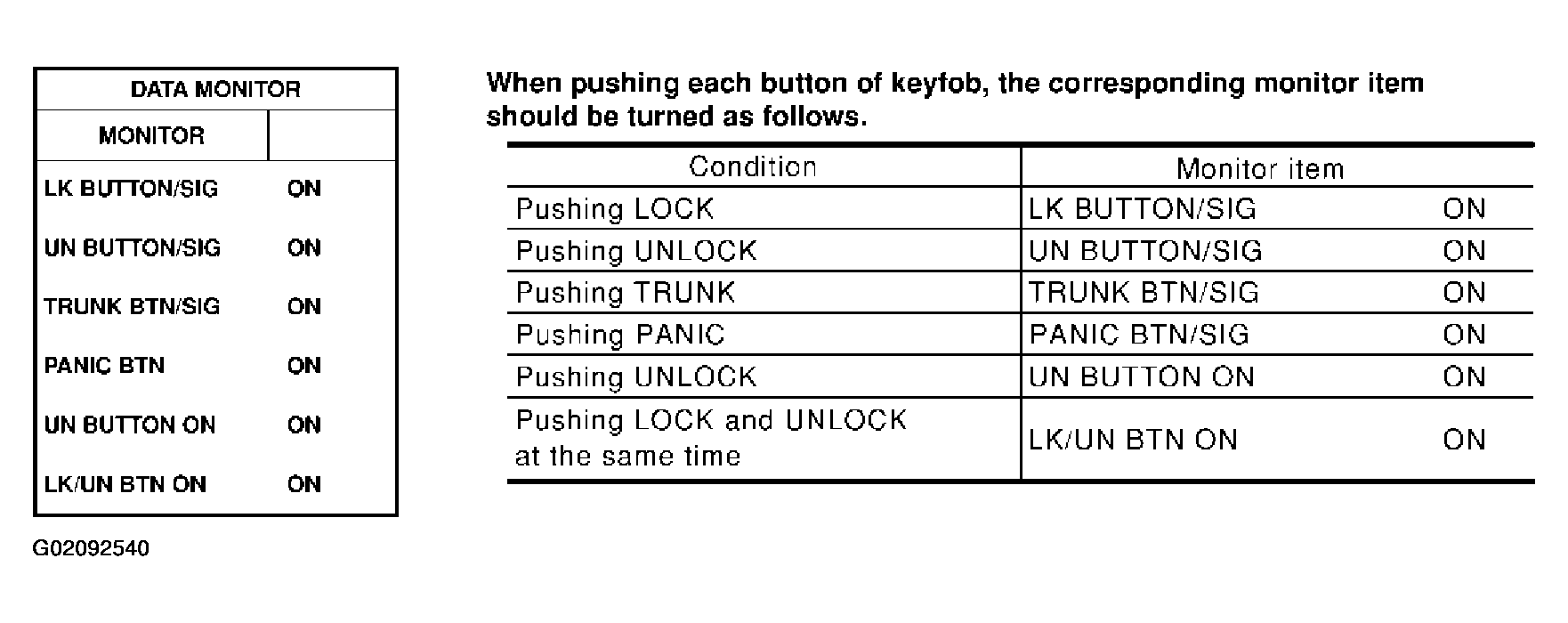

Fig 2: Checking Keyfob Function
Courtesy of NISSAN MOTOR CO., U.S.A.
1. OK or NG
OK Keyfob is OK. Further inspection is necessary. Refer to "SYMPTOM CHART ".

NG Replace keyfob. Refer to ID Code Entry Procedure.
