Reference Area: Notes

The Reference Area of the wiring diagram contains references to additional electrical reference pages at the end of the article. If connector numbers and titles are shown in the Reference Area of the wiring diagram, these connector symbols are not shown in the Connector Area.

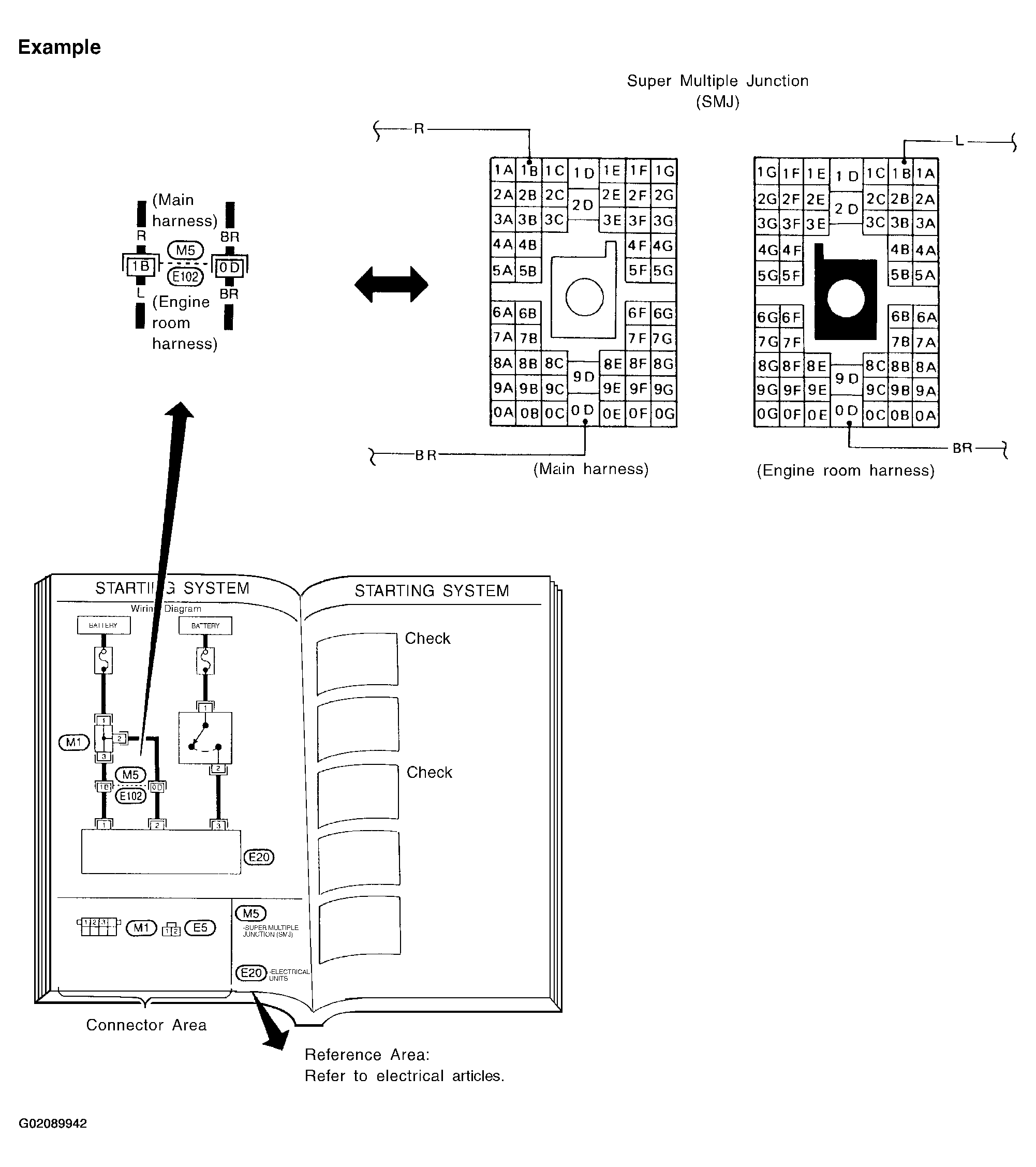

Fig 1: Locating Reference Area Example
