Door Lock/Unlock Switch LH Check

CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL
With CONSULT-II

Check door lock/unlock switch ("LOCK SW DR/AS"/" UNLK SW DR/AS") in "DATA MONITOR" mode with CONSULT-II.

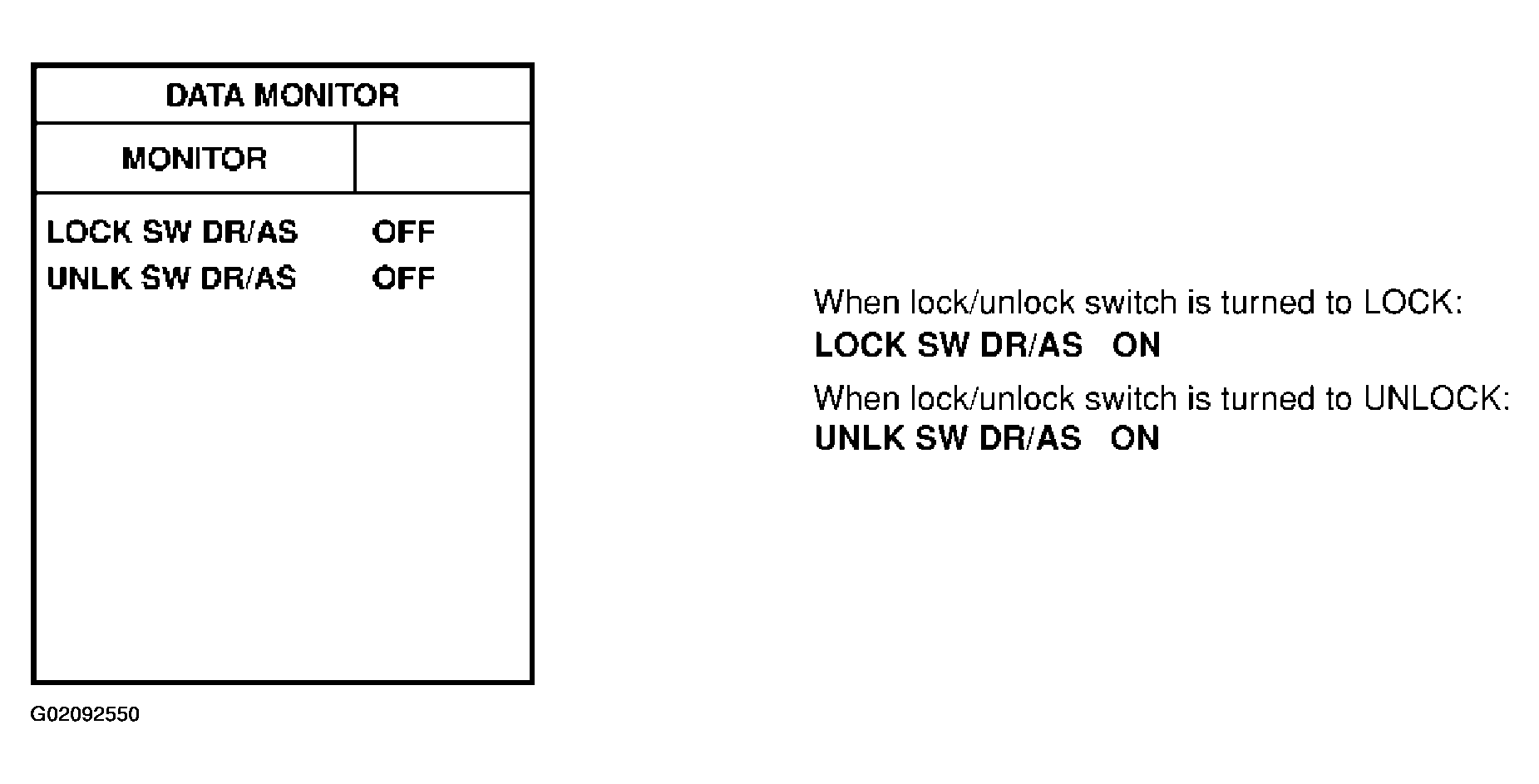

Fig 1: Checking Door Lock/Unlock Switch Input Signal With CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Remove key from ignition switch.
2. Check the signal between smart entrance control unit harness connector M144 terminal 33 (L) and ground with oscilloscope when door lock/unlock switch is turned "LOCK" or "UNLOCK".
3. Make sure signals which are shown in the figure below can be detected during 10 sec. just after door lock/unlock switch is turned "LOCK" or "UNLOCK".

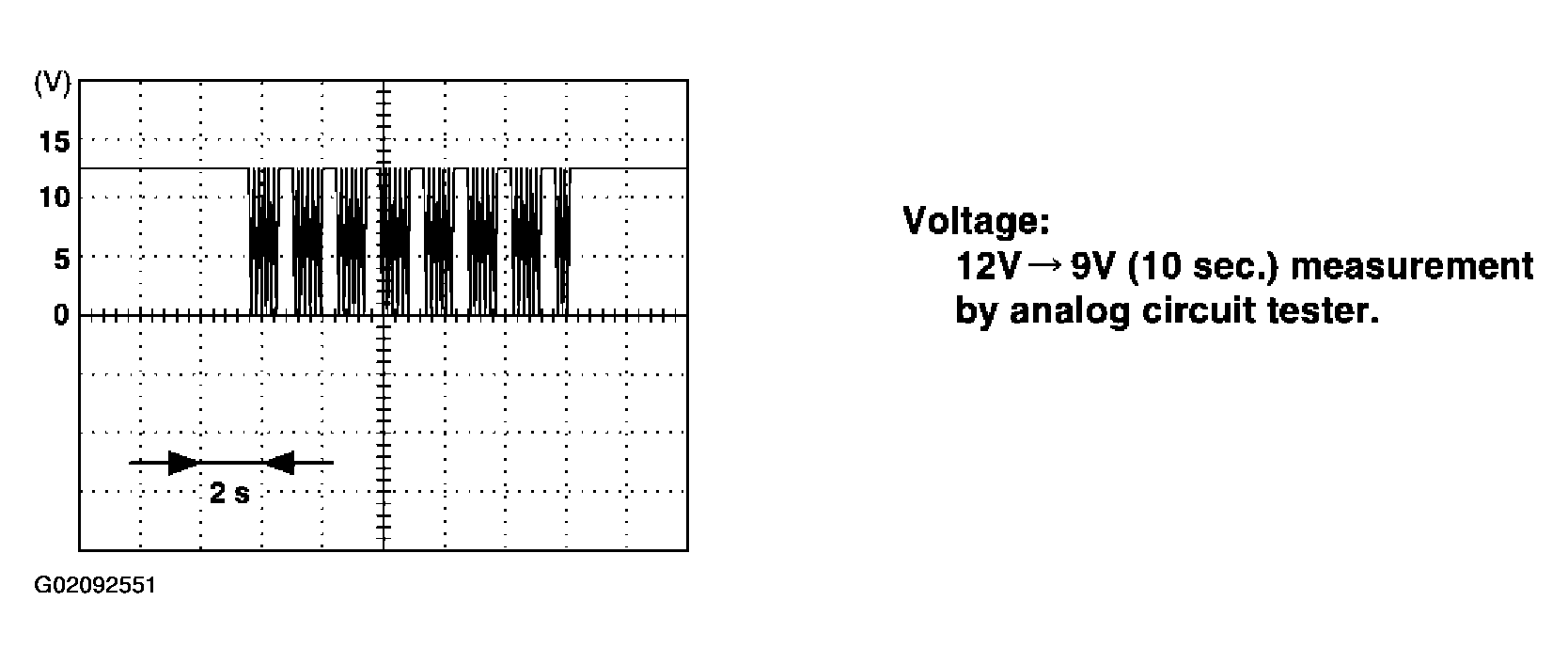

  Fig 2: Checking Door Lock/Unlock Switch Input Signal Without CONSULT-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to WIRING DIAGRAM - KEYLESS - .
1. OK or NG
OK Door lock/unlock switch is OK.

NG Check the following.
- Ground circuit for each front power window switch.
- Harness for open or short between each front power window switch and smart entrance control unit connector
  If above systems are normal, replace the front power window switch.
