"Display Auto Open" Mode

  1. Start the engine.
  2. Push "OPEN/CLOSE" switch and then open the display.
  3. Push "SETTING" switch.
  4. Select "System Setting".

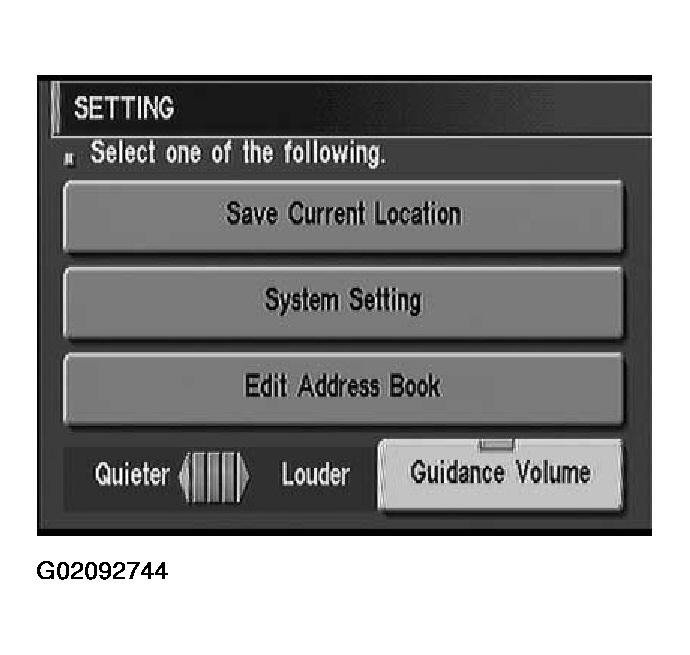

    Fig 1: Selecting "System Setting"
    G02092744Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Select "Display Auto Open".

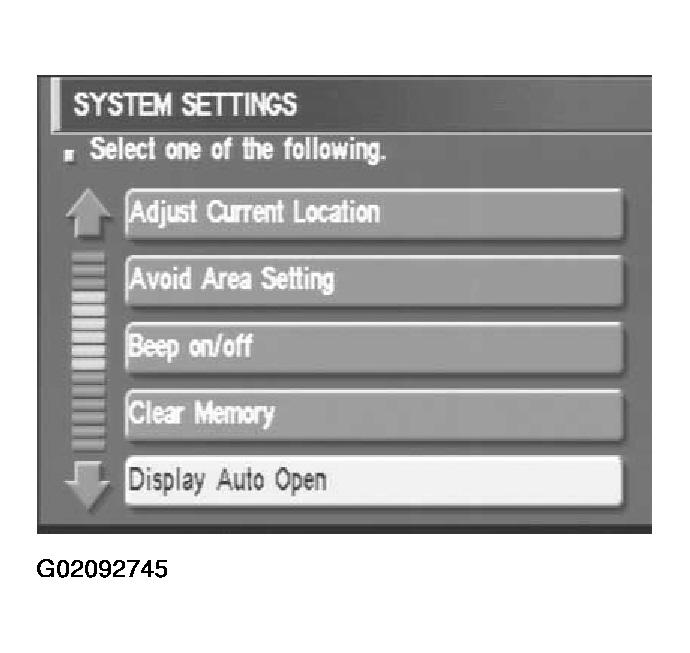

    Fig 2: Selecting "Display Auto Open"
    G02092745Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select "Auto" or "Manual" icon.
    • To manually open the display, select "Manual".
    • To automatically open the display, select "Auto".
  7. Push "MAP" switch, then the display will go back to the current location map.

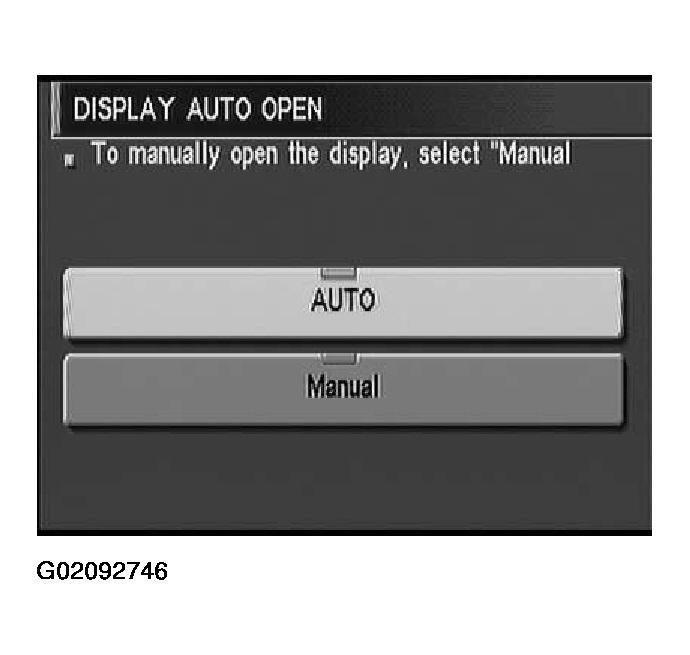

    Fig 3: Selecting "Auto" or "Manual" Icon
    G02092746Courtesy of NISSAN MOTOR CO., U.S.A.
