Input/Output Signal Chart
NOTE:
In
Fig 1
"T" and "R" refer to Transmit and Receive.

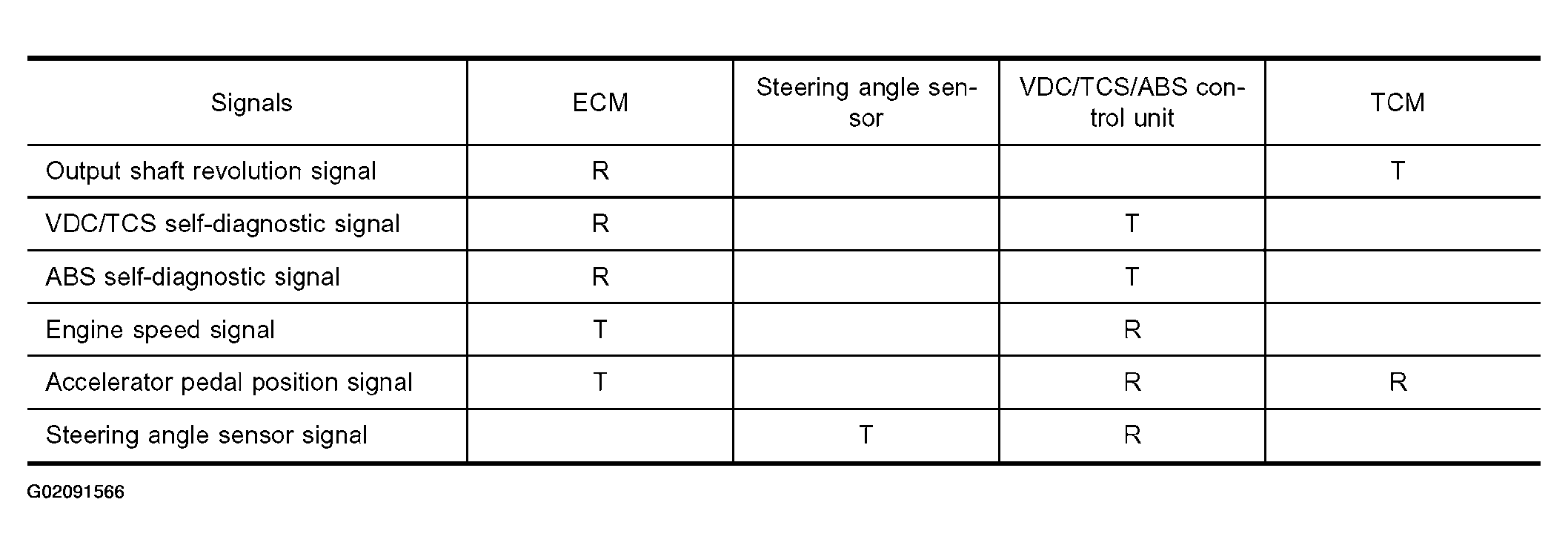

Fig 1: Displaying CAN Communication Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
