System Diagram

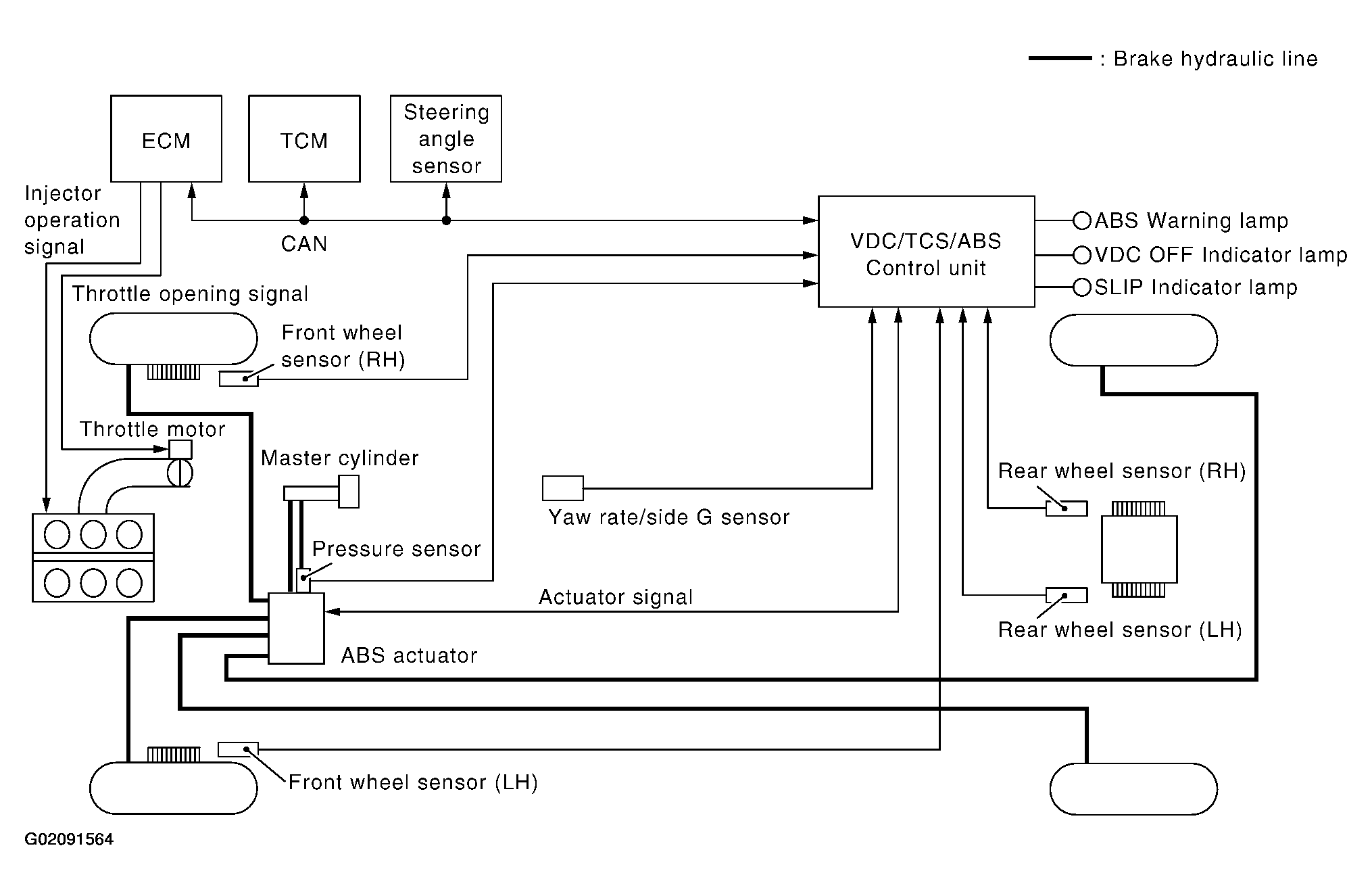

Fig 1: Displaying VDC System Diagram

G02091564

Courtesy of NISSAN MOTOR CO., U.S.A.
