For Harness Repair

Solder the repaired parts, and wrap with tape. [Frays of twisted line must be within 110 mm (4.33 in)]

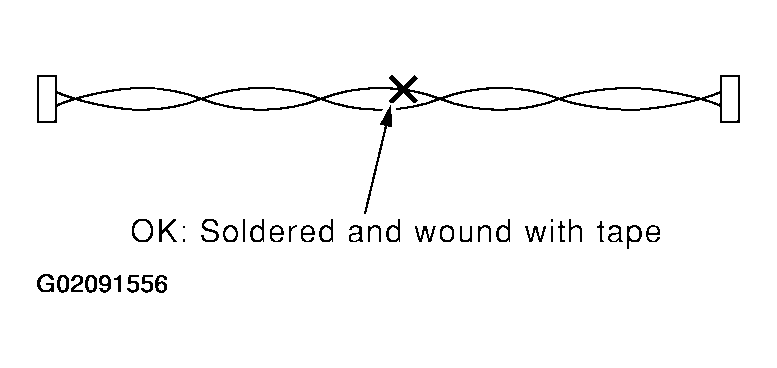

Fig 1: Identifying OK Condition For Harness Repair
Courtesy of NISSAN MOTOR CO., U.S.A.
Do not perform bypass wire connections for the repair parts. (The spliced wire will become separated and the characteristics of twisted line will be lost.)

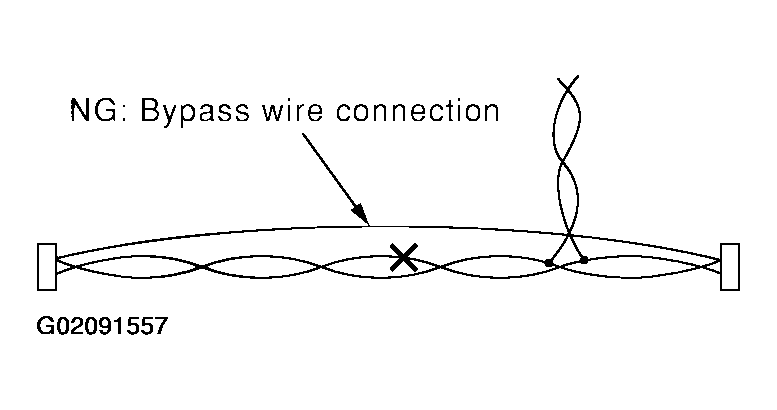

Fig 2: Identifying NG Condition For Harness Repair
Courtesy of NISSAN MOTOR CO., U.S.A.
