CONSULT-II Main Function

In a diagnosis function (main function), there are WORK SUPPORT, SELF- DIAGNOSTIC RESULTS, DATA MONITOR, CAN DIAG SUPPORT MNTR, ACTIVE TEST, FUNCTION TEST, ECU PART NUMBER.

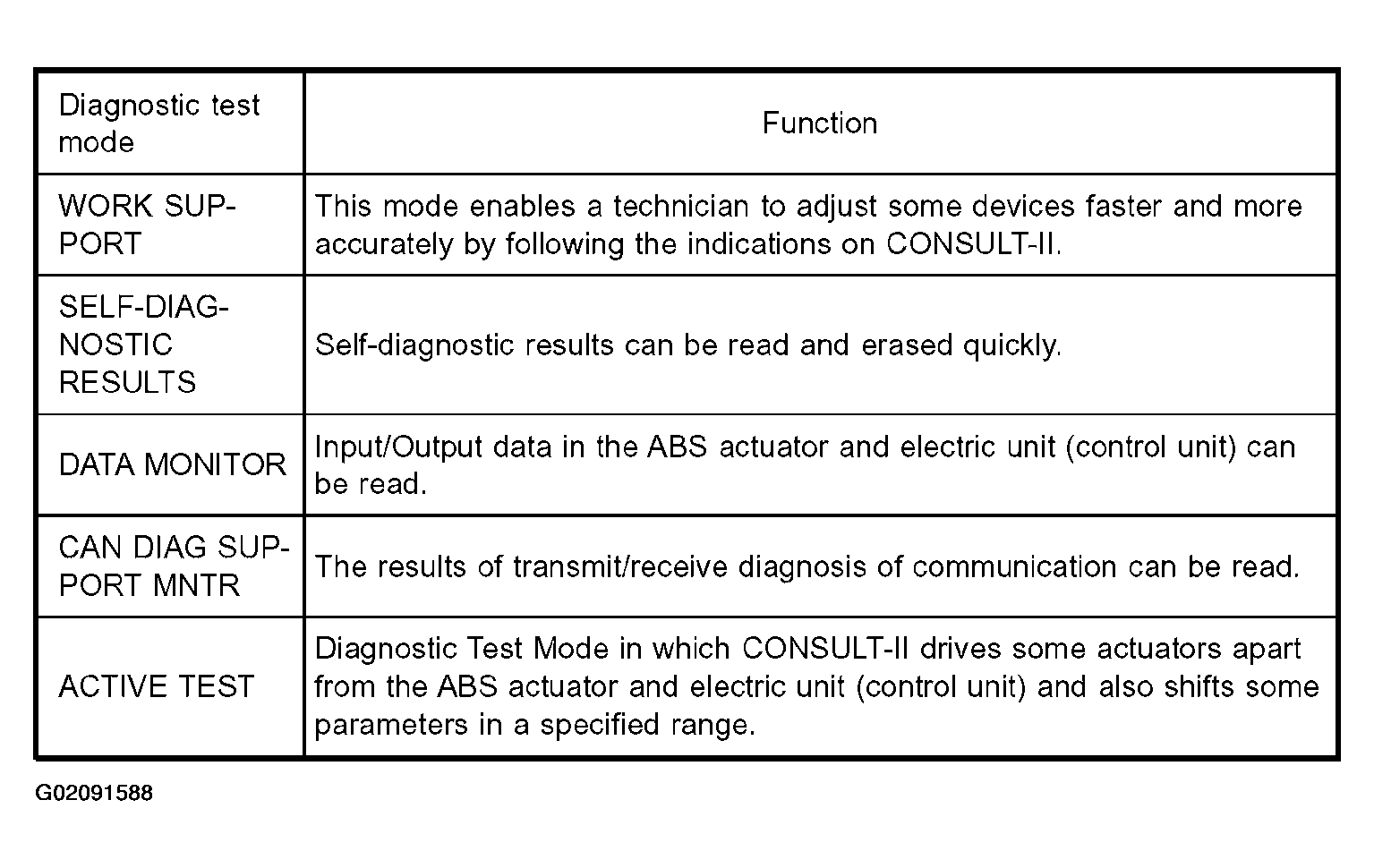

Fig 1: CONSULT-II Main Function Chart (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

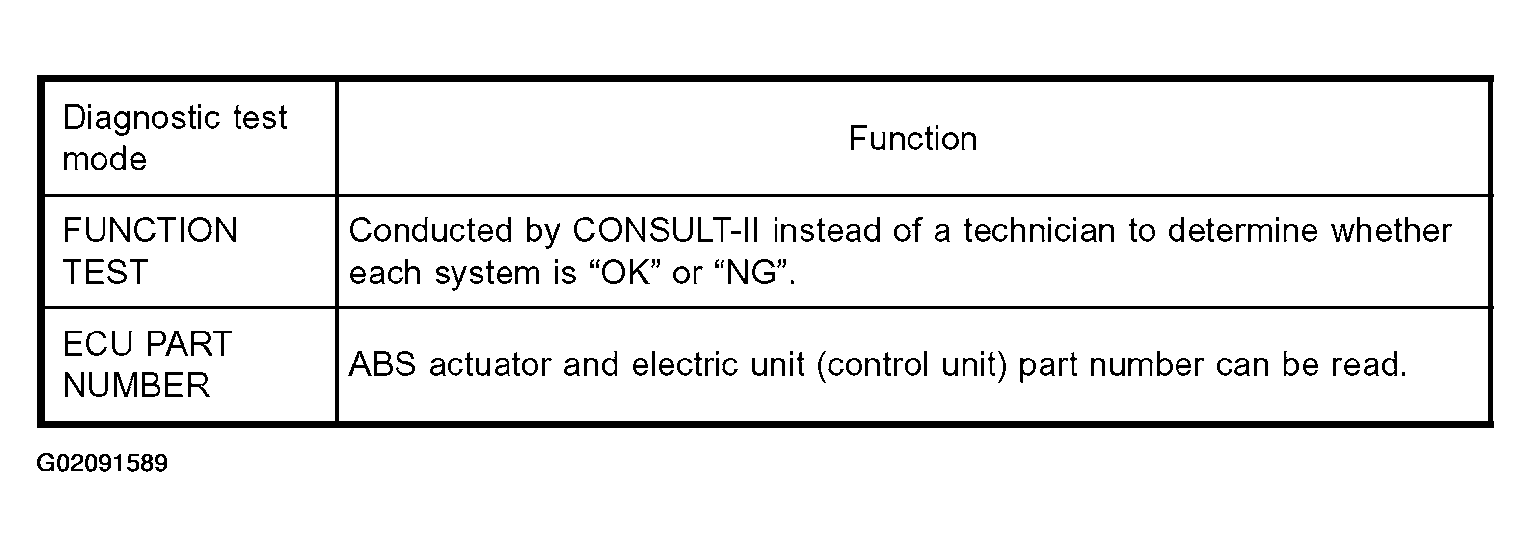

Fig 2: CONSULT-II Main Function Chart (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
