Removal & Installation

The ECM is located behind the glove box. To remove the ECM the glove box must be removed. Remove the ECM harness connector. See Fig 1 . Remove ECM. To install, reverse removal procedure.

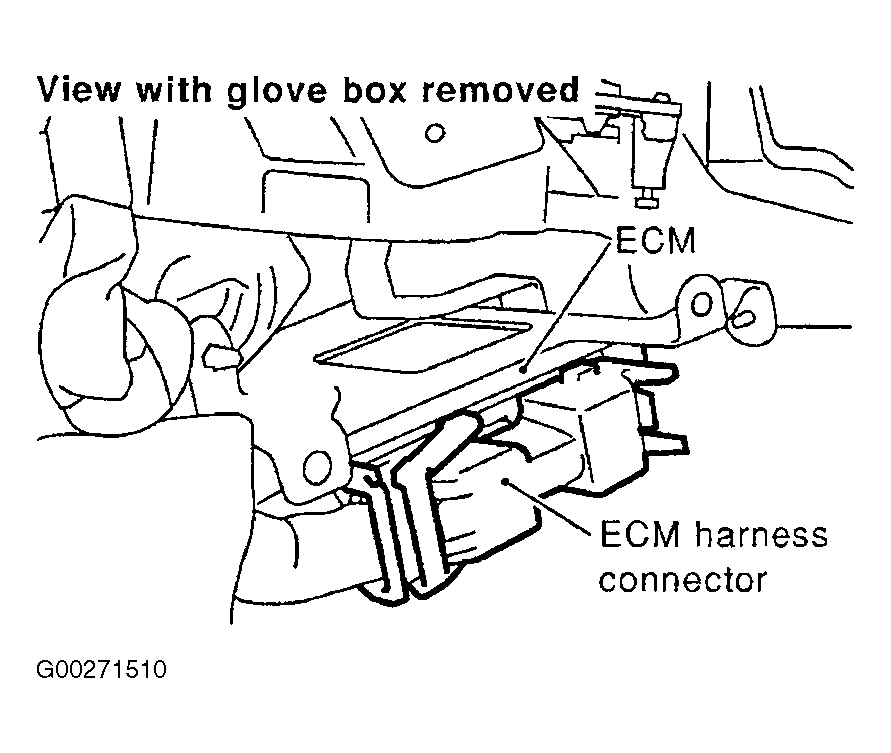

Fig 1: Locating ECM Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.
