Diagnostic Procedure

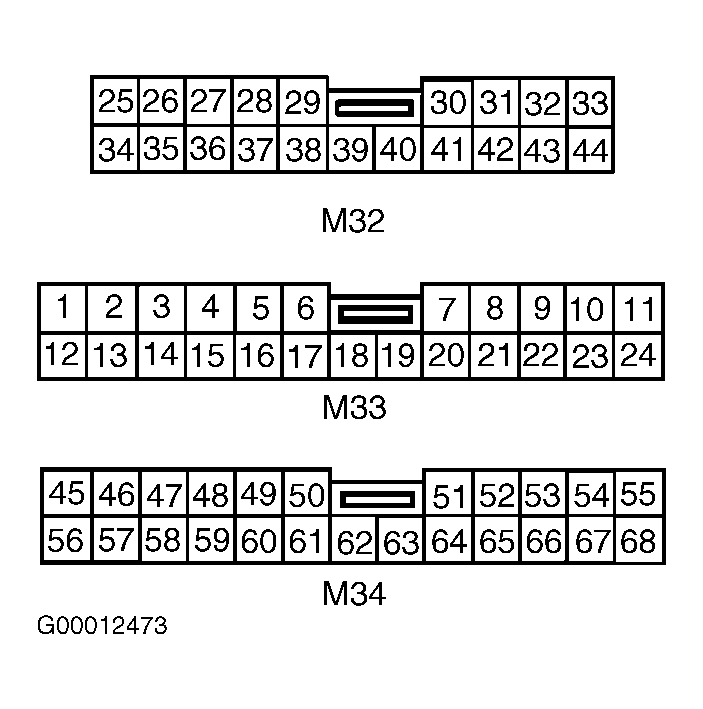

- Turn ignition off. Disconnect instrument cluster harness connectors. Turn ignition on. Measure voltage between ground and Orange wire at instrument cluster harness connector terminal No. 24. See Figure
. If battery voltage exists, go to step 3
. If battery voltage does not exist, go to next step.
- Check the following:
- Check fuse No. 30 (10-amp) located in fuse block under left side of instrument panel.
- Check for poor connection at fuse block connector M19 terminal 1L (Orange wire). See Figure
.
- Check for open or short in Green wire between fuse block and instrument cluster.
Repair as necessary.
- Turn ignition off. Disconnect ECM harness connector. See Figure
. Check continuity of Light Green/Black wire between instrument cluster harness connector terminal No. 45 and ECM harness connector terminal No. 33. See Figure
. Also, check circuit for short to ground and short to voltage. If problem is found, go to next step. If circuit is okay, go to step 5
.
- Check the following:
- Check for poor connection at White, 18-pin harness connector F66 terminal No. 5 (Light Green/Black wire). See Figure
. Connector is located under instrument panel. See Figure
.
- Check for open or short between instrument cluster and ECM.
Repair as necessary.
- No problem is indicated at this time. Problem may be intermittent. See INTERMITTENTS
in TROUBLE SHOOTING - NO CODES article.
