2 Check Harness For Open Circuit

WARNING: This page is about a different car, the 2004 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ABS/TCS control unit connector.
  2. Check resistance between ABS/TCS control unit harness connector E162 terminals 30 (L) and 29 (R).

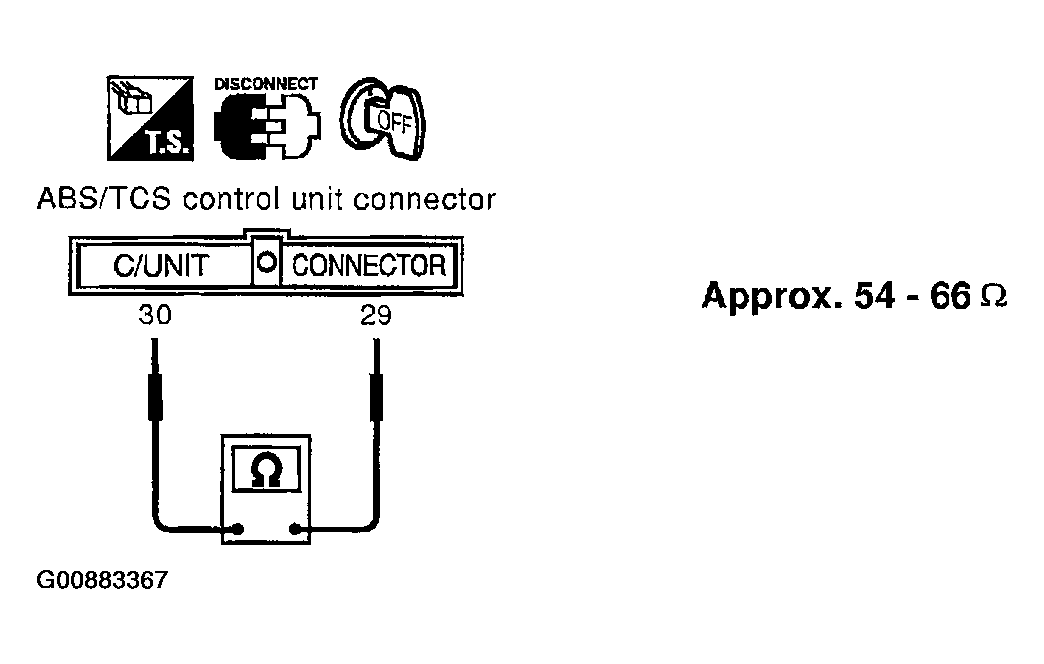

Fig 1: Checking For Harness Open Circuit
G00883367Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace ABS/TCS control unit.

NG: Repair harness between ABS/TCS control unit and harness connector E81.
