2 Check Harness For Open Circuit
WARNING: This page is about a different car, the 2004 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect ECM connector.

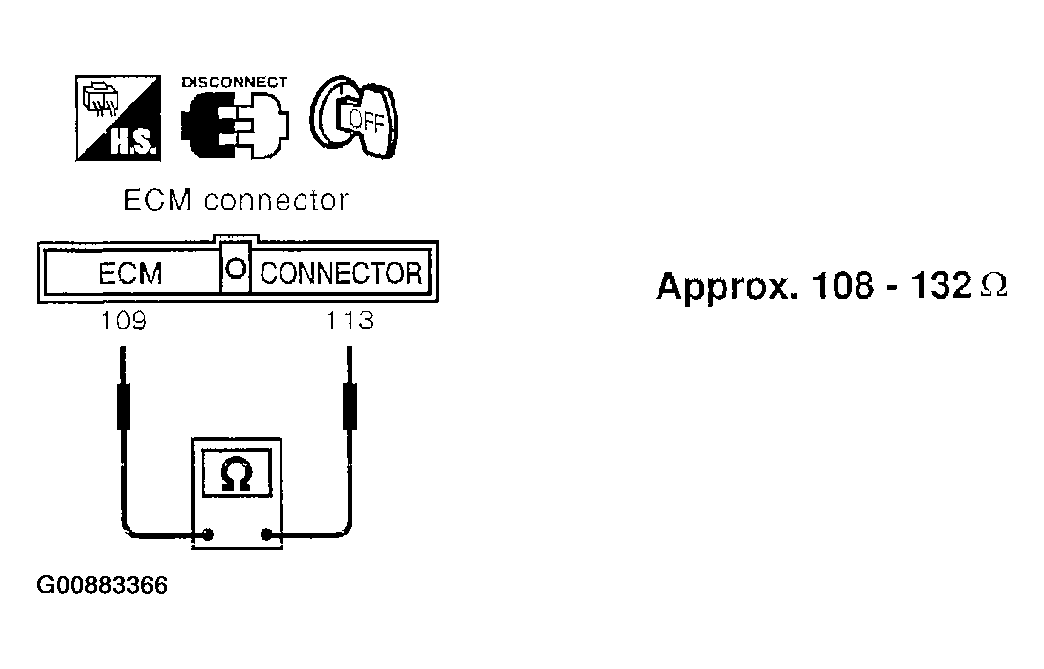

- Check resistance between ECM harness connector F48 terminals 109 (L) and 113 (R).
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
OK: Replace ECM.
NG: Repair harness between ABS/TCS control unit and ECM.
