2 Check Harness For Open Circuit

WARNING: This page is about a different car, the 2004 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect TCM connector.
  2. Check resistance between TCM harness connector F51 terminals 5 (L) and 6 (R).

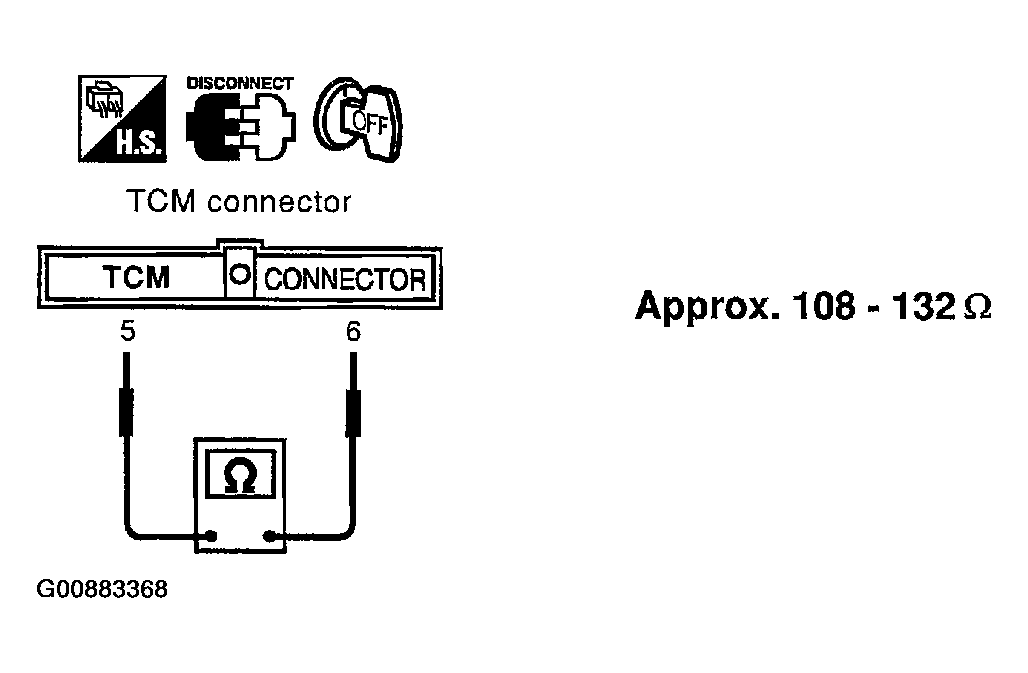

Fig 1: Checking Control Unit Circuit
G00883368Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace TCM.

NG: Repair harness ABS/TCS control unit and TCM.
