Removal and Installation of IPDM E/R

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove 2 bolts and position coolant reservoir aside.
  3. Remove IPDM E/R upper cover.

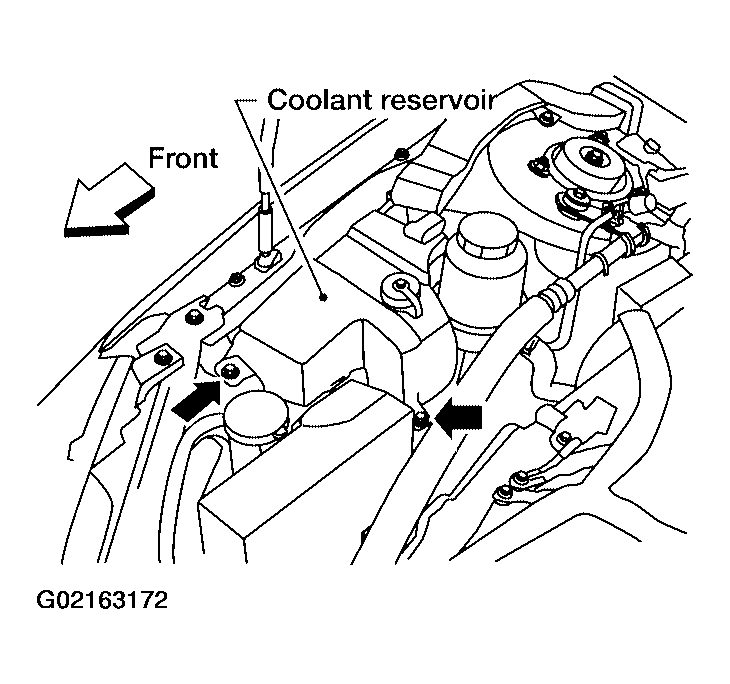

    Fig 1: Identifying Coolant Reservoir
    G02163172Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove IPDM E/R harness cover.

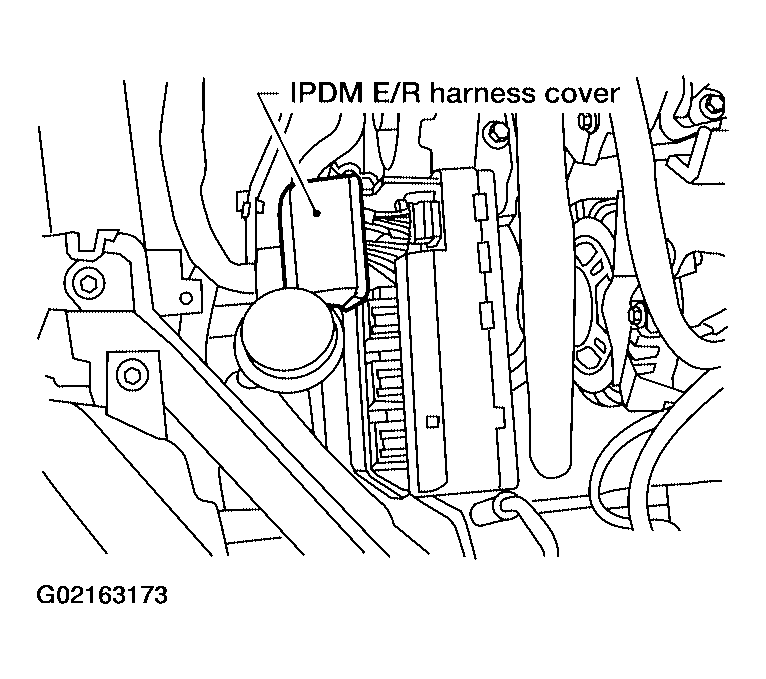

    Fig 2: Identifying IPDM E/R Harness Cover
    G02163173Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Release 2 clips and pull IPDM E/R up from case.
  6. Disconnect IPDM E/R connectors and then remove the IPDM E/R.

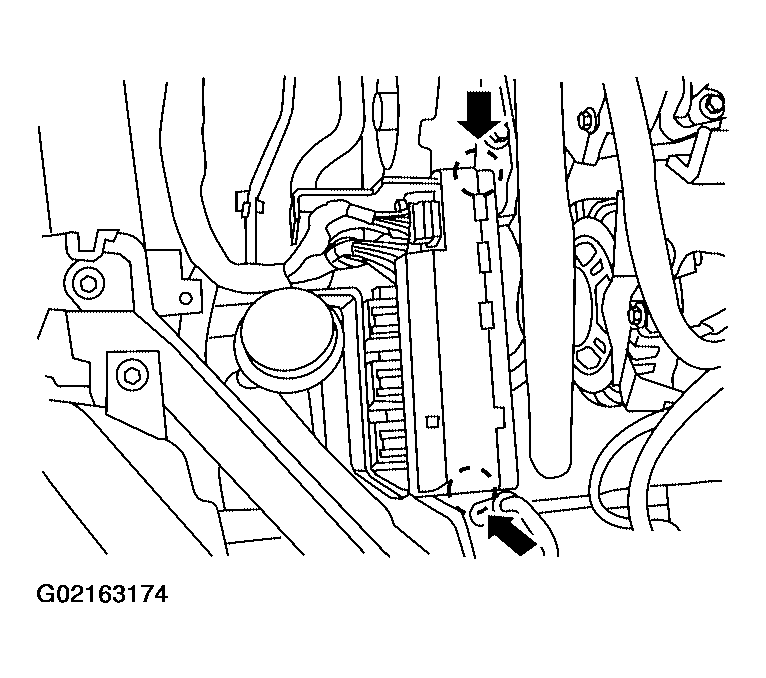

    Fig 3: Identifying IPDM E/R Clips
    G02163174Courtesy of NISSAN MOTOR CO., U.S.A.
