Front Wheel Turning Angle

  1. Rotate steering wheel all the way right and left; measure turning angle.

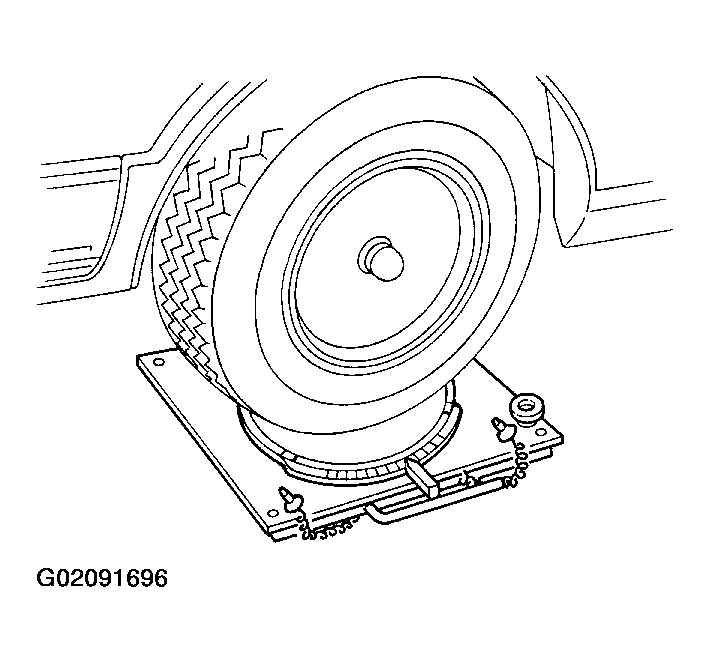

      Fig 1: Measuring Front Wheel Turning Angle
      G02091696Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Turning angle of full turns: Refer to SPECIFICATIONS .
  2. If it is not within specification, check rack stroke.
    1. Rack stroke "S":
    2. Refer to STEERING GEAR AND LINKAGE .
