Disassembly And Assembly

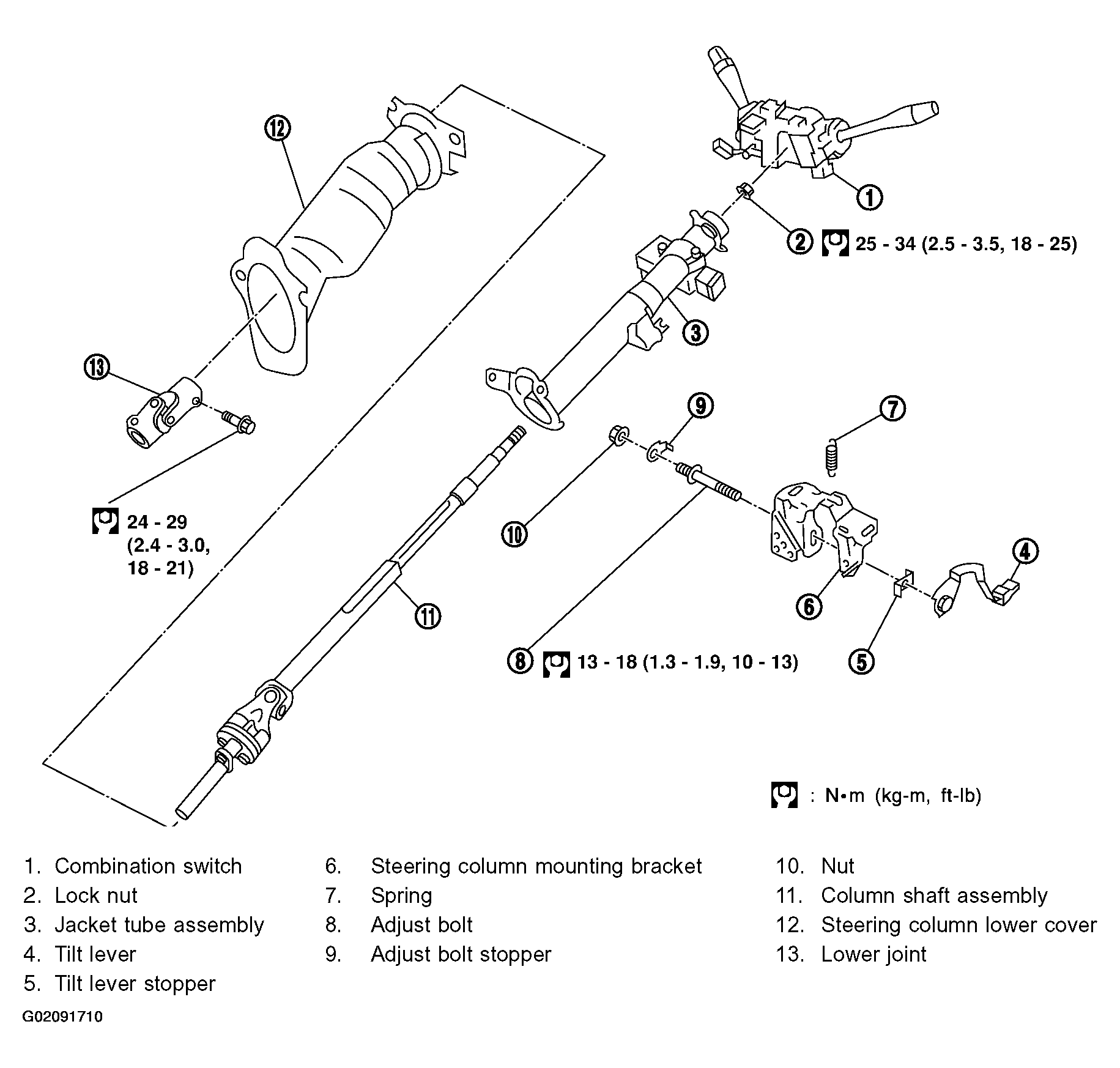

Fig 1: Exploded View Of Steering Column Assembly

G02091710

Courtesy of NISSAN MOTOR CO., U.S.A.

When disassembling and assembling, unlock steering lock with key.
Remove combination switch.
Install lock nut on steering column shaft and tighten the nut.

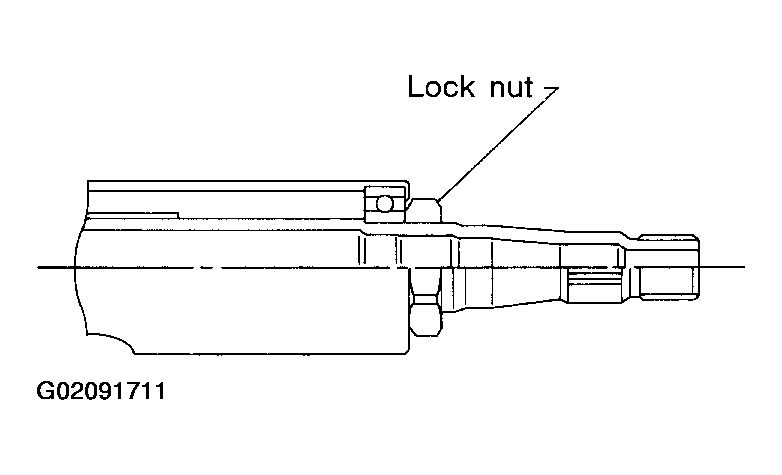

Fig 2: Identifying Lock Nut On Steering Column Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.

Steering lock
1. Break self-shear type screws with a drill or other appropriate tool.

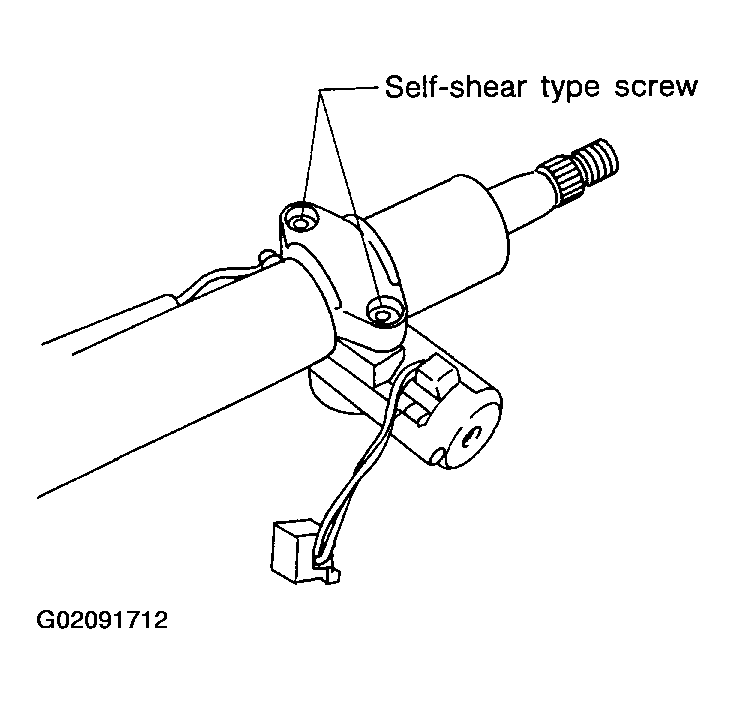

  Fig 3: Identifying Self-Shear Type Screws
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install new self-shear type screws and then cut off self-shear type screw heads.

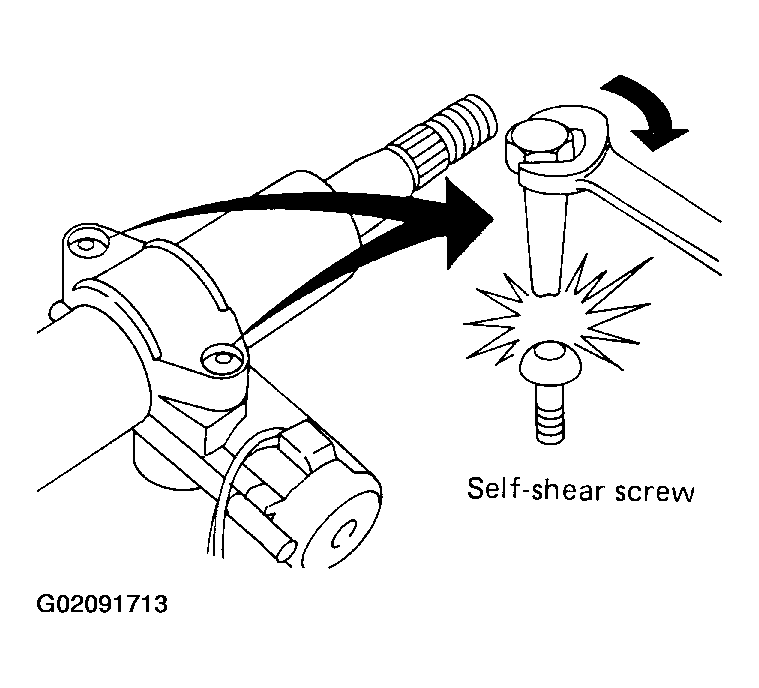

  Fig 4: Locating Cut Off Self-Shear Type Screw Heads
  Courtesy of NISSAN MOTOR CO., U.S.A.
