Shift Lock Solenoid
Check operation by applying battery voltage to control device connector.
CAUTION:
Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may be damaged.

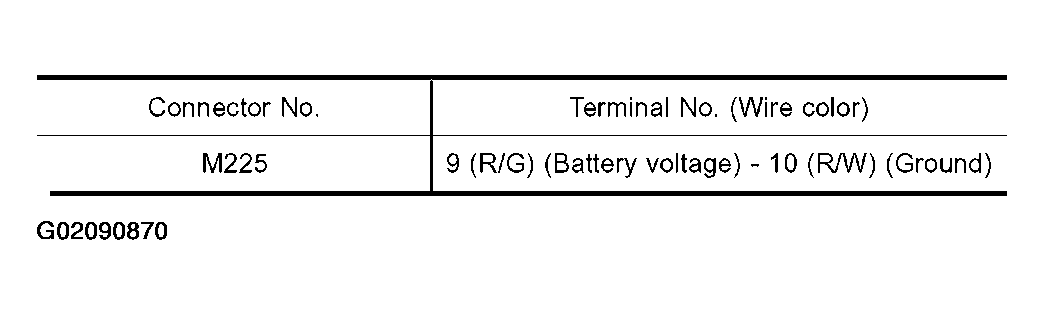

Fig 1: Connector & Terminal No. Table Of Shift Lock Solenoid
Courtesy of NISSAN MOTOR CO., U.S.A.

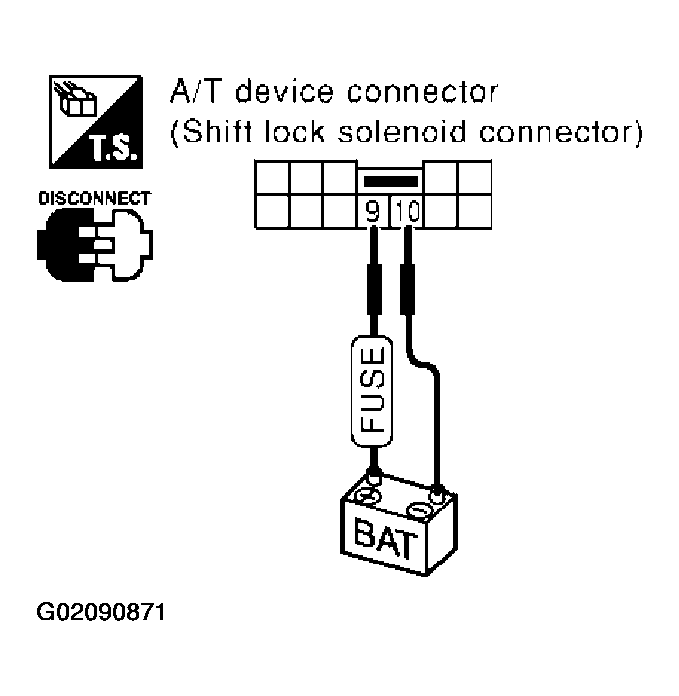

Fig 2: Checking Shift Lock Solenoid
Courtesy of NISSAN MOTOR CO., U.S.A.
