Stop Lamp Switch

• Check continuity between terminals of the stop lamp switch connector.

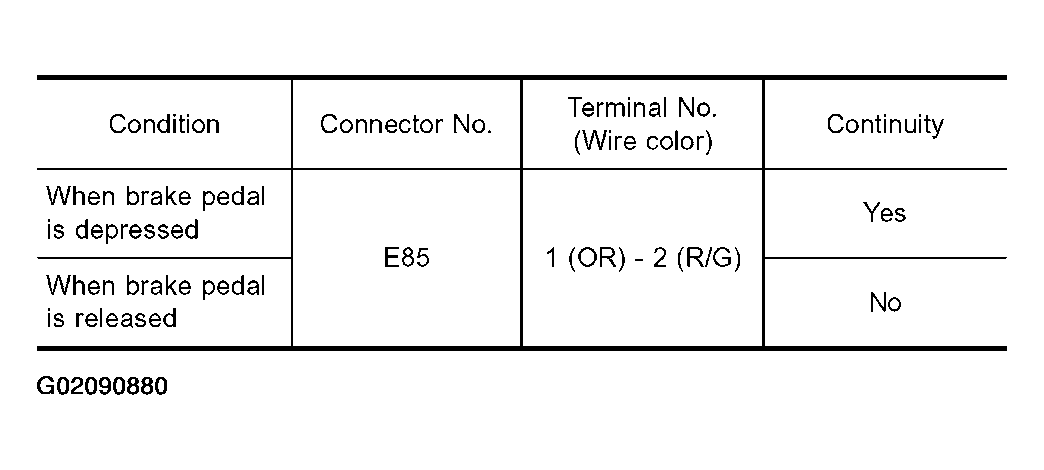

  Fig 1: Terminal Continuity Table Of Stop Lamp Switch

  Courtesy of NISSAN MOTOR CO., U.S.A.

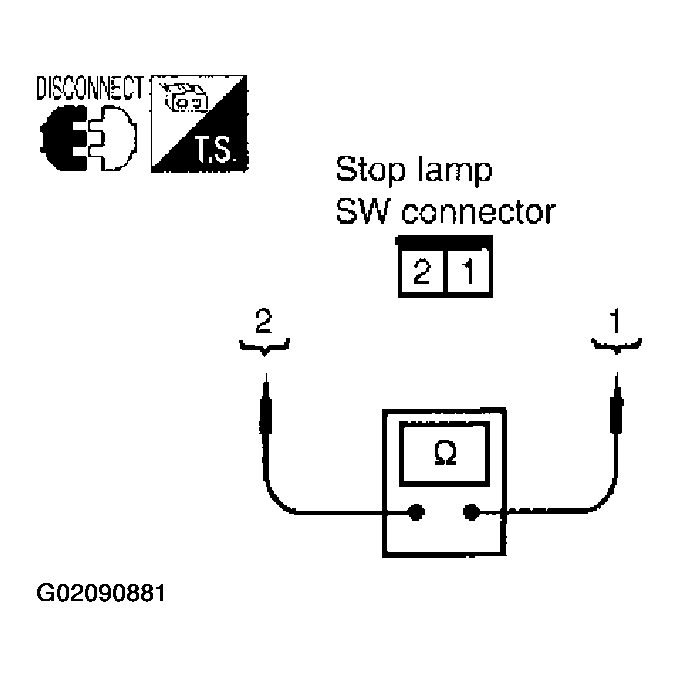

  Fig 2: Checking Stop Lamp Switch

  Courtesy of NISSAN MOTOR CO., U.S.A.

Check stop lamp switch after adjusting brake pedal. Refer to BRAKE PEDAL & BRACKET .
