Shift Lock System Electrical Parts Location

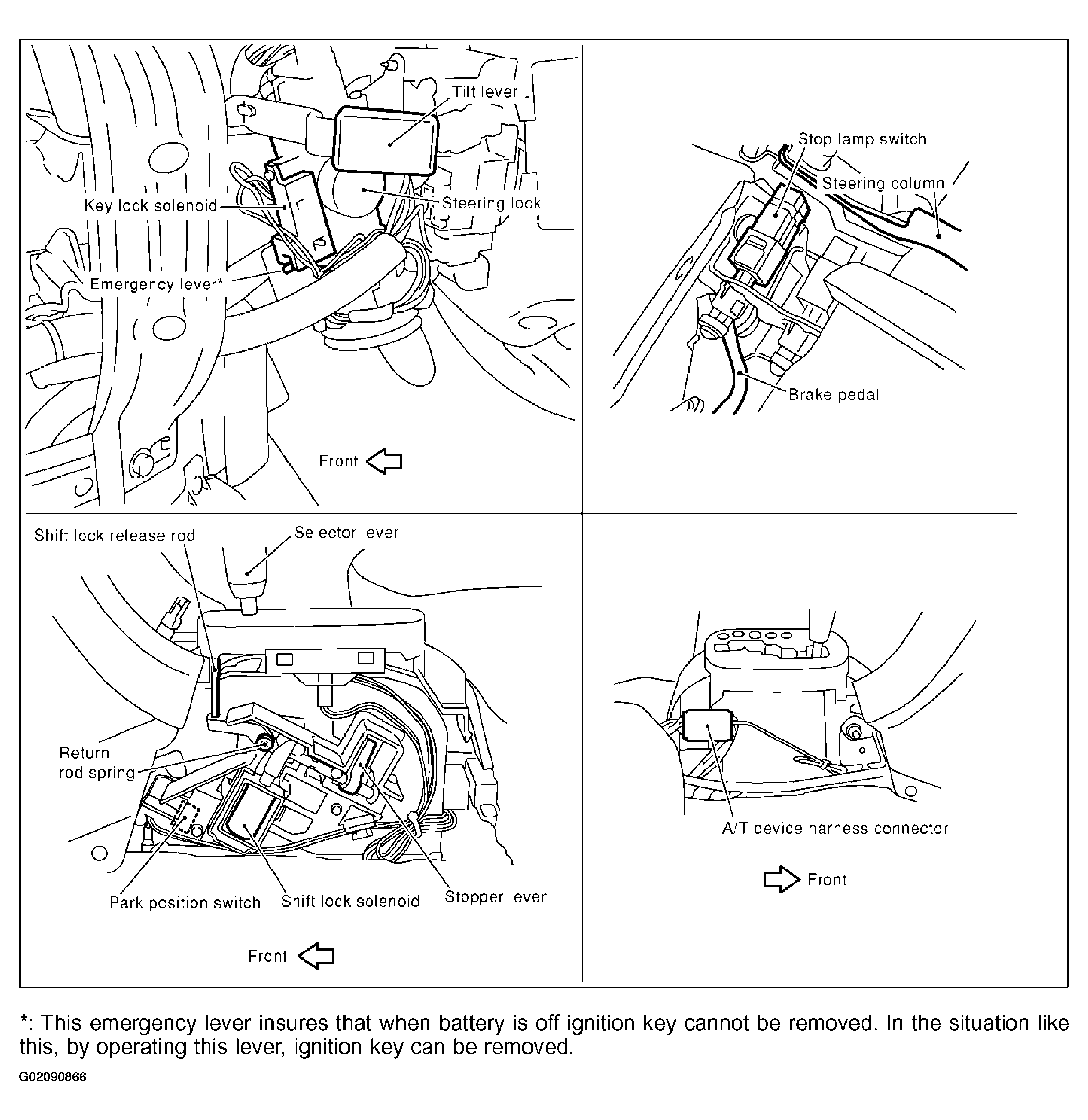

Fig 1: Shift Lock System Electrical Parts Location
G02090866Courtesy of NISSAN MOTOR CO., U.S.A.

*: This emergency lever insures that when battery is off ignition key cannot be removed. In the situation like this, by operating this lever, ignition key can be removed.
