Assembly (3)

Install anchor end pin and lock nut on transmission case.
Place brake band on outside of reverse clutch drum. Tighten anchor end pin just enough so that brake band is evenly fitted on reverse clutch drum.

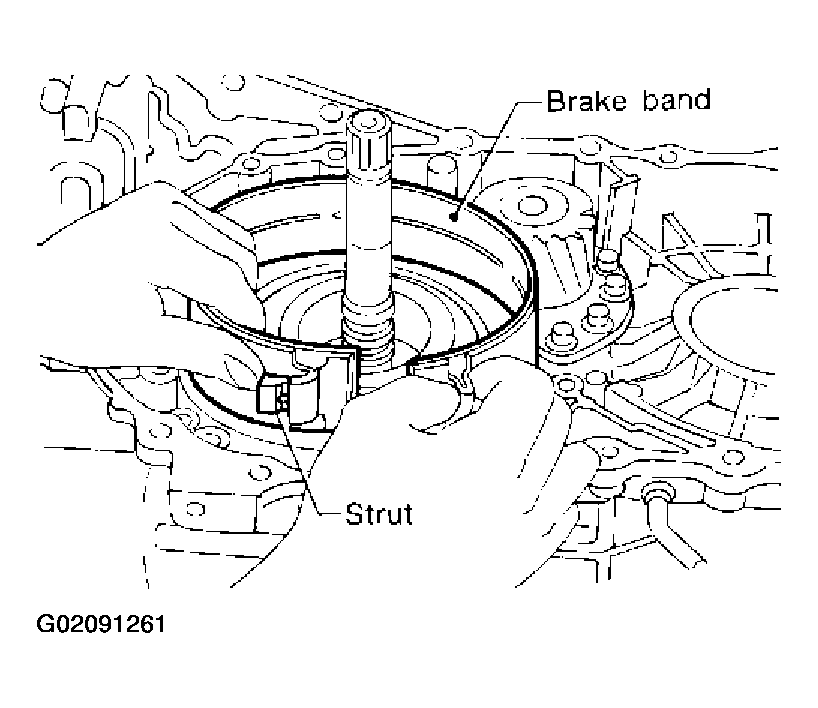

Fig 1: Placing Brake Band On Outside Of Reverse Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Place bearing race selected in total end play adjustment step on oil pump cover.

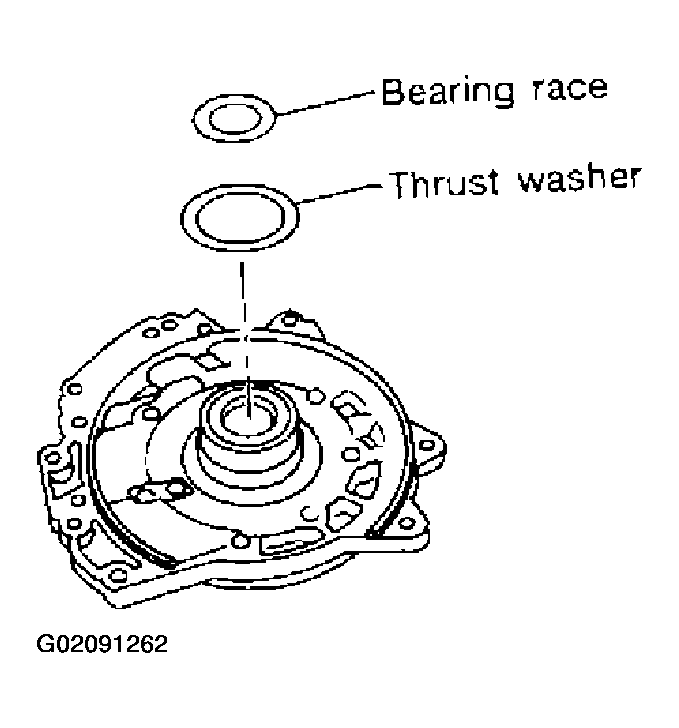

Fig 2: Identifying Thrust Washer & Bearing Race
Courtesy of NISSAN MOTOR CO., U.S.A.
- Apply petroleum jelly to bearing race.
Place thrust washer selected in reverse clutch end play step on reverse clutch drum.
- Apply petroleum jelly to thrust washer.
Install oil pump assembly, baffle plate and gasket on transmission case.

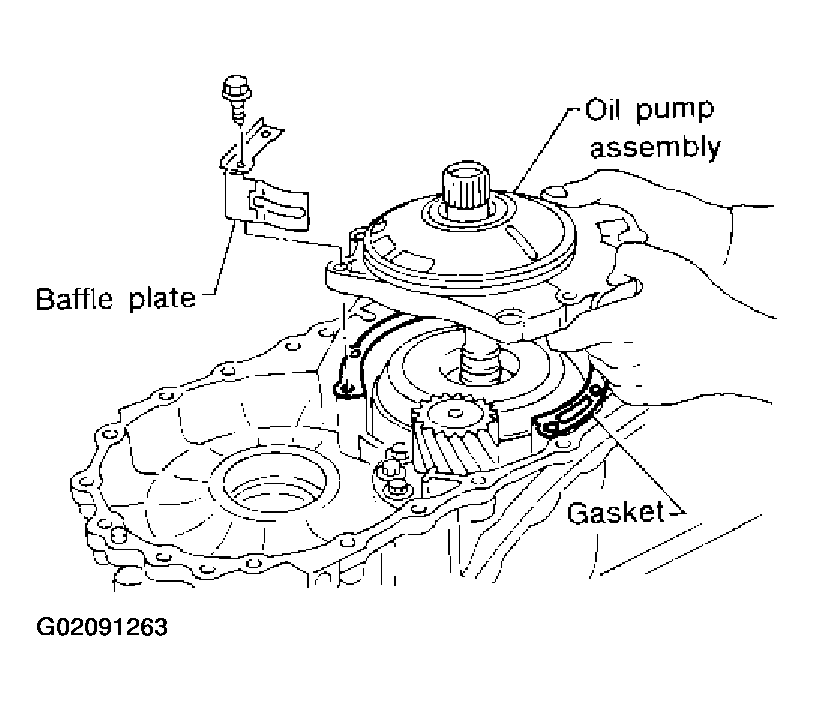

Fig 3: Installing Oil Pump Assembly, Baffle Plate & Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten oil pump fixing bolts to the specified torque.
Install O-ring to input shaft.

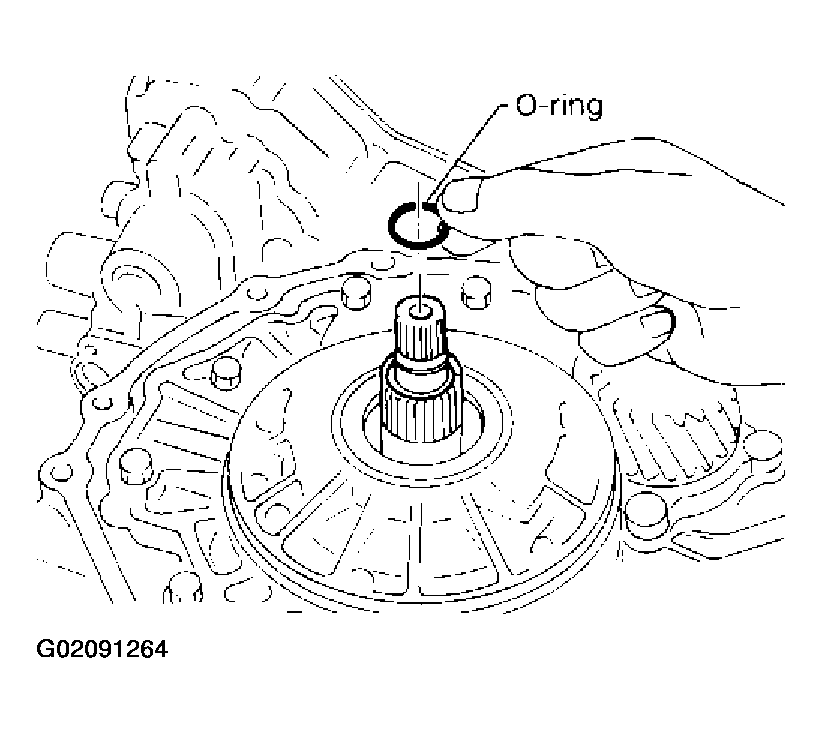

Fig 4: Installing O-Ring To Input Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
- Apply ATF to O-ring.
Adjust brake band.
1. Tighten anchor end pin to the specified torque.
  1. Anchor end pin:
    1. Refer to SDS BRAKE BAND .
2. Back off anchor end pin two and a half turns.
3. While holding anchor end pin, tighten lock nut.

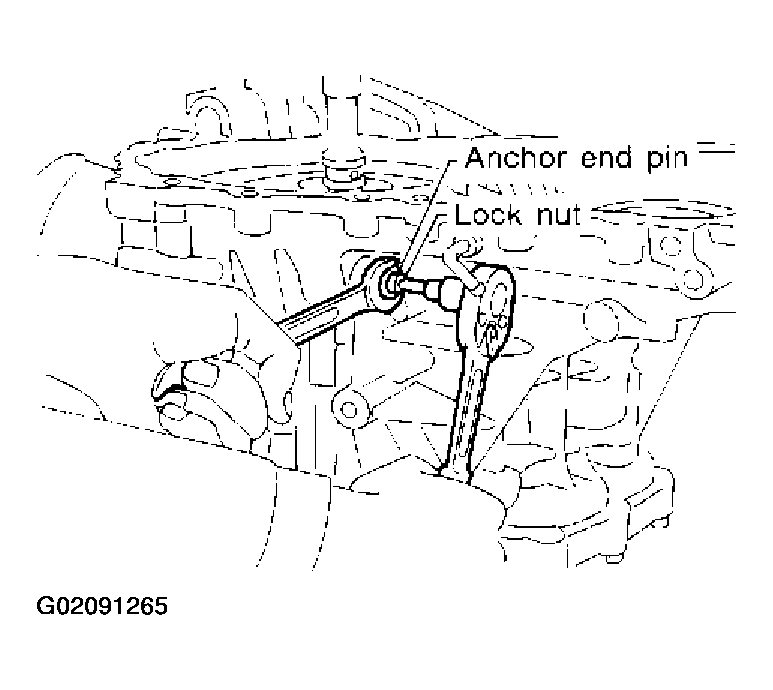

  Fig 5: Tightening Anchor End Pin To Specified Torque
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Lock nut:
    1. Refer to SDS LOW & REVERSE BRAKE .
Apply compressed air to oil holes of transmission case and check operation of brake band.

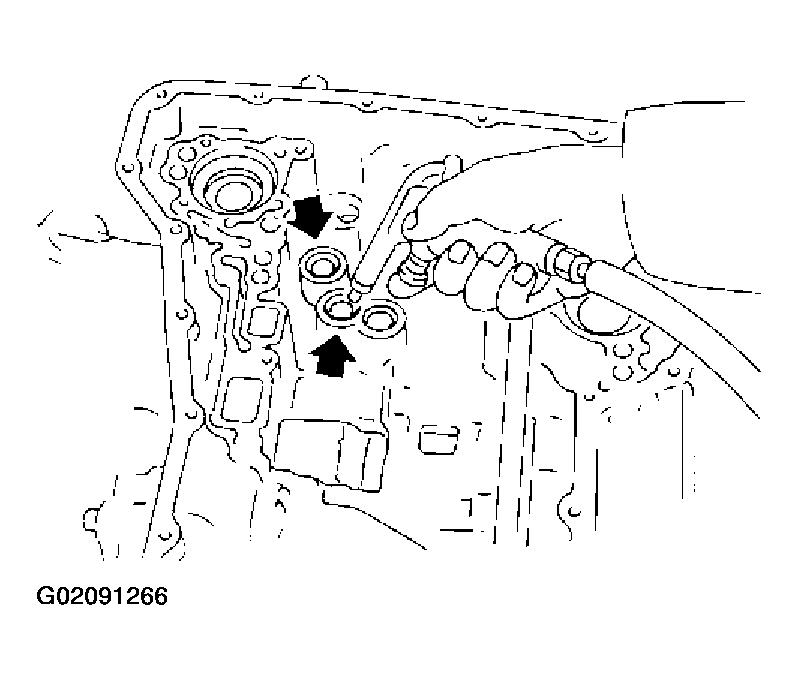

Fig 6: Applying Compressed Air To Oil Holes Of Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install final drive assembly on transmission case.

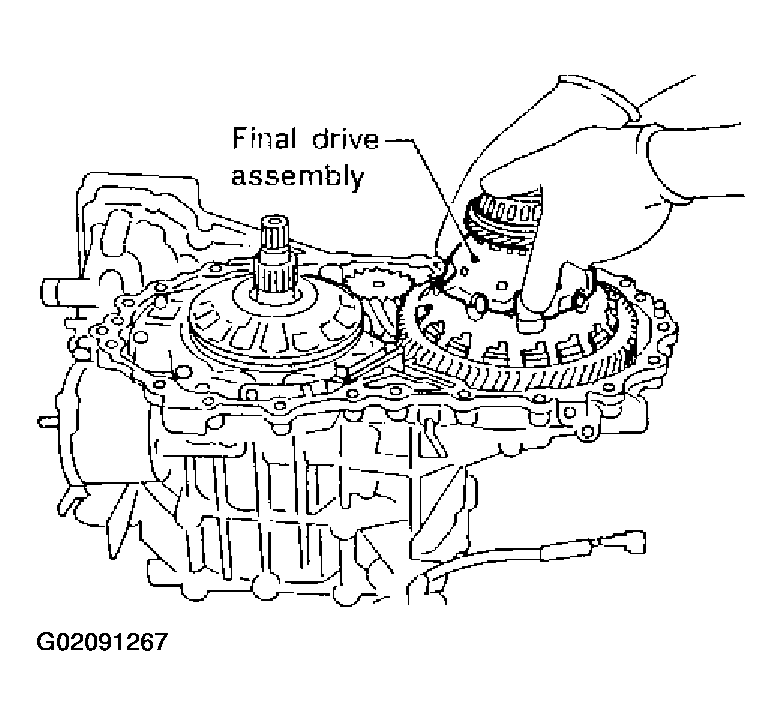

Fig 7: Installing Final Drive Assembly On Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install differential lubricant tube on converter housing. Tighten differential lubricant tube bolts to the specified torque. Refer to OVERHAUL .

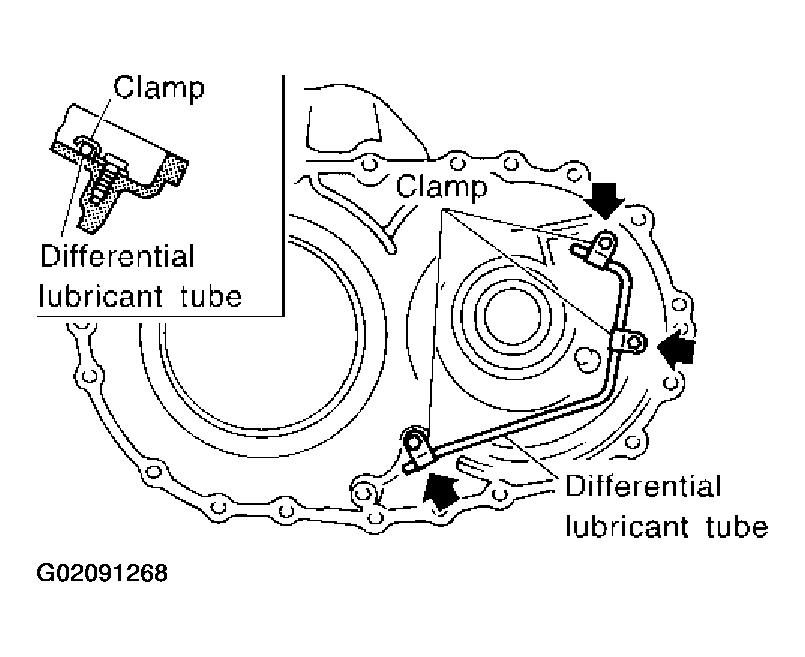

Fig 8: Installing Differential Lubricant Tube
Courtesy of NISSAN MOTOR CO., U.S.A.

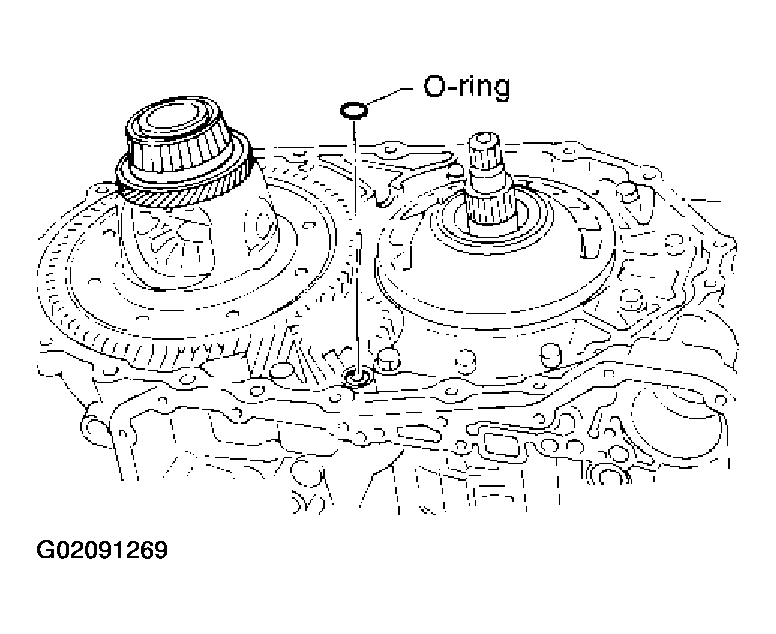

Install O-ring on differential oil port of transmission case.

Fig 9: Installing O-Ring On Differential Oil Port
Courtesy of NISSAN MOTOR CO., U.S.A.
Install converter housing on transmission case.
- Apply locking sealant (Loctite #518) to mating surface of converter housing.

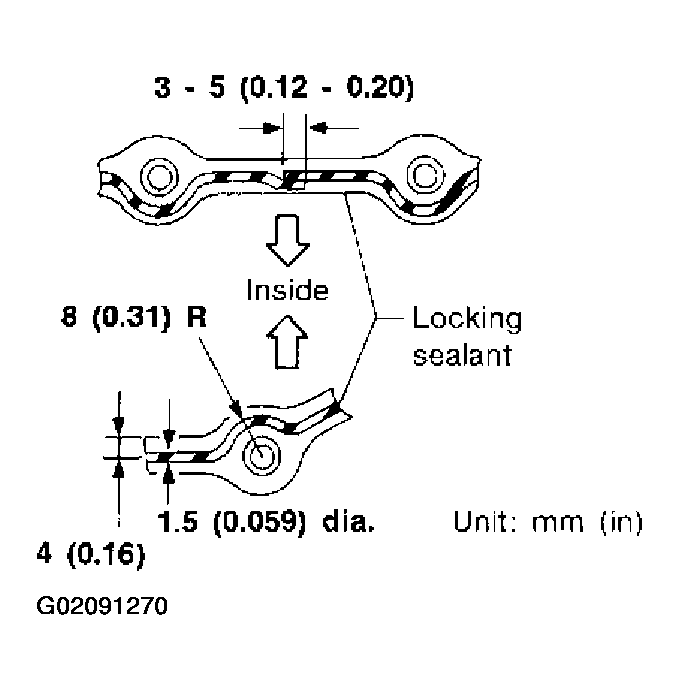

  Fig 10: Identifying Locking Sealant Application Area
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Tighten converter housing bolts to the specified torque. Refer to OVERHAUL .

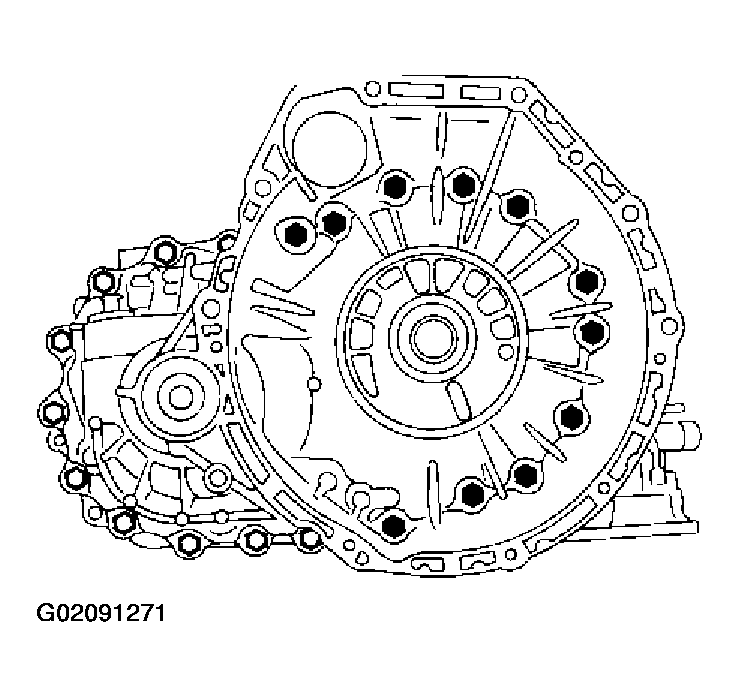

Fig 11: Tighten Converter Housing Bolts To Specified Torque
Courtesy of NISSAN MOTOR CO., U.S.A.
Install accumulator piston.
1. Check contact surface of accumulator piston for damage.

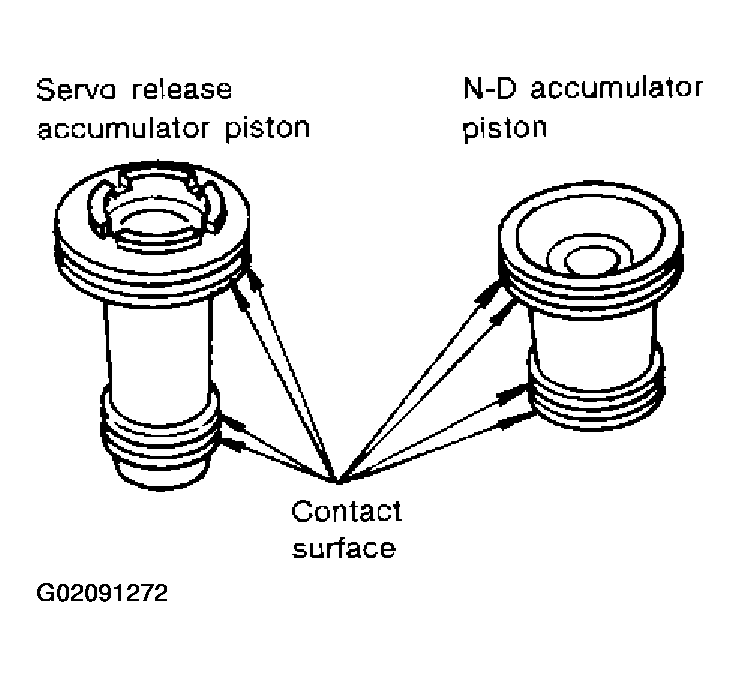

  Fig 12: Checking Contact Surface Of Accumulator Piston For Damage
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install O-rings on accumulator piston.

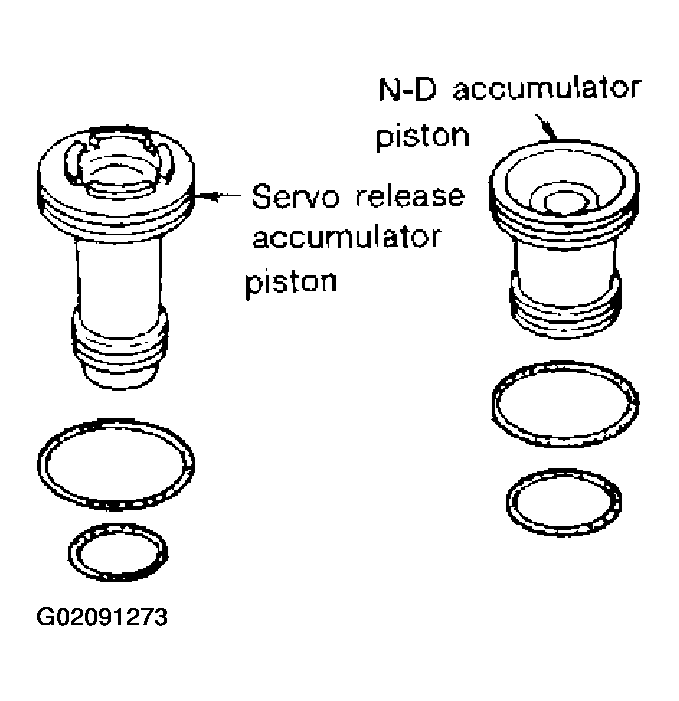

  Fig 13: Installing O-Rings On Accumulator Piston
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - Apply ATF to O-rings.
    1. Accumulator piston O-rings:
      1. Refer to SDS ACCUMULATOR .
3. Install accumulator pistons and return springs on transmission case.

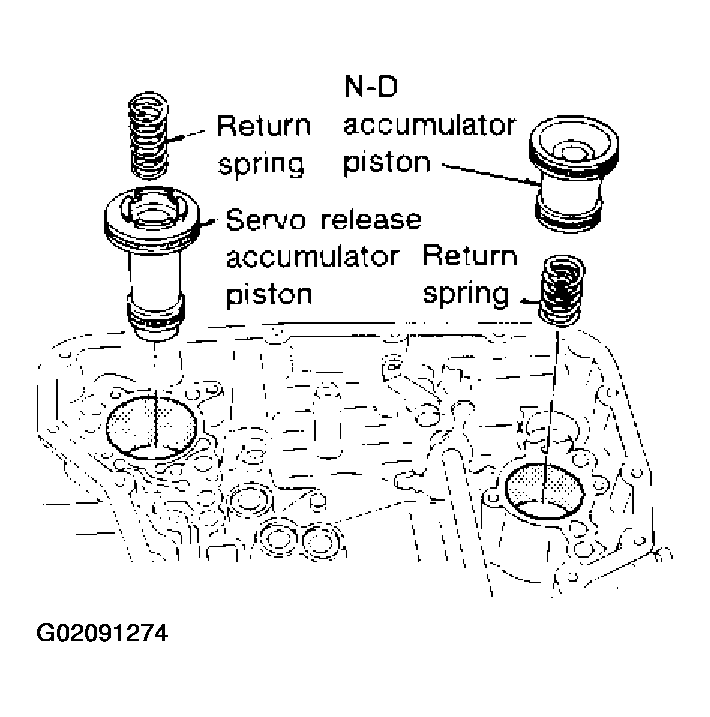

  Fig 14: Installing Accumulator Pistons & Return Springs
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - Apply ATF to inner surface of transmission case.
    1. Return springs:
      1. Refer to SDS RETURN SPRING .
Install lip seals for band servo oil holes on transmission case.

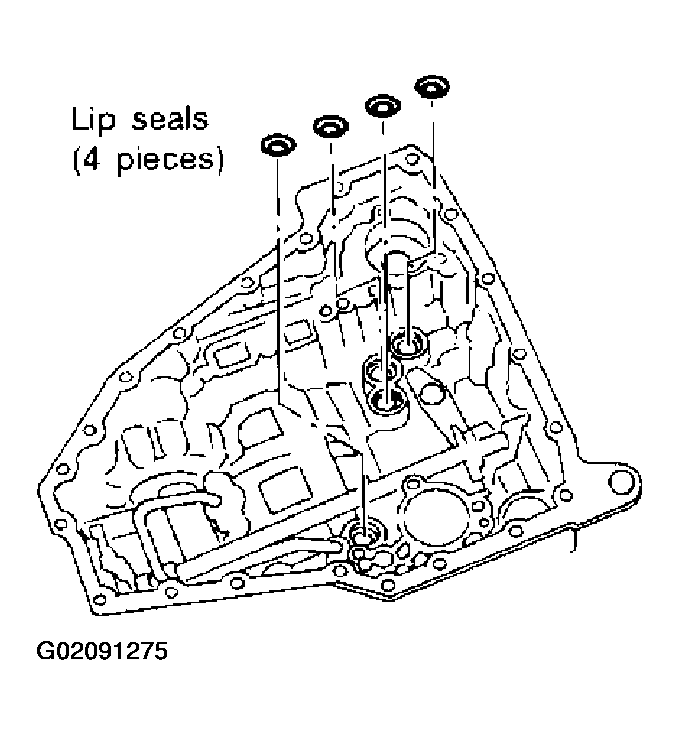

Fig 15: Installing Lip Seals For Band Servo Oil Holes
Courtesy of NISSAN MOTOR CO., U.S.A.
- Apply petroleum jelly to lip seals.

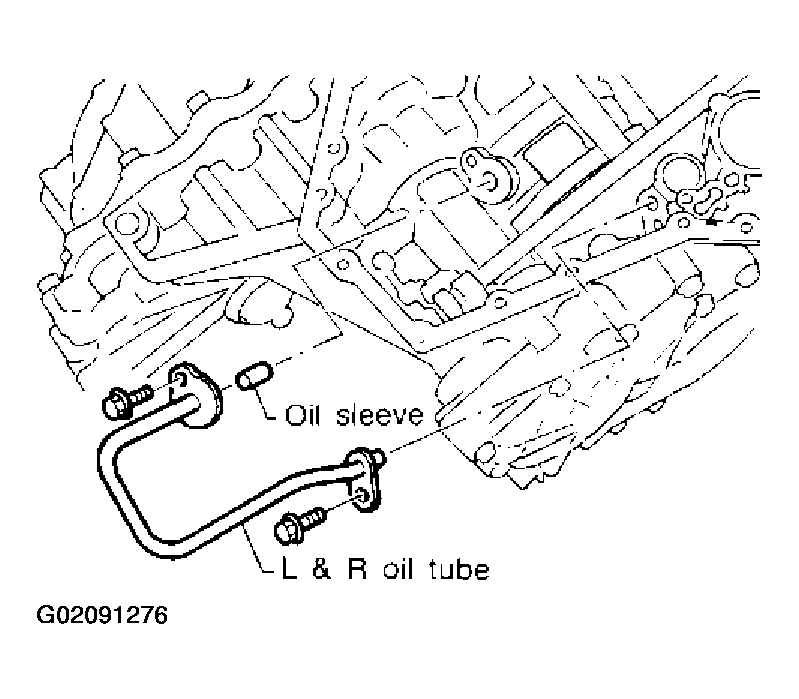

Install L & R oil tube and oil sleeve. Tighten L & R oil tube bolts to the specified torque. Refer to OVERHAUL .

Fig 16: Installing L & R Oil Tube & Oil Sleeve
Courtesy of NISSAN MOTOR CO., U.S.A.
Install control valve assembly.
1. Insert manual valve into control valve assembly.

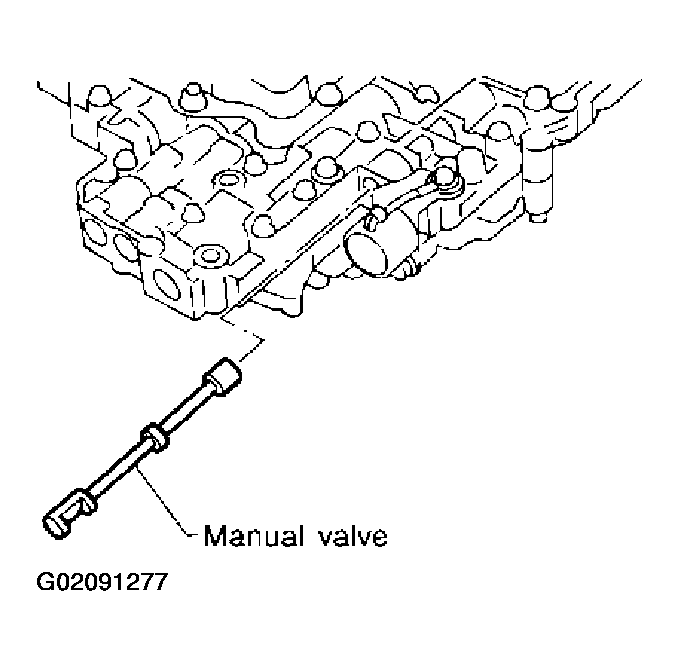

  Fig 17: Inserting Manual Valve Into Control Valve Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - Apply ATF to manual valve.
2. Set manual shaft in Neutral position.

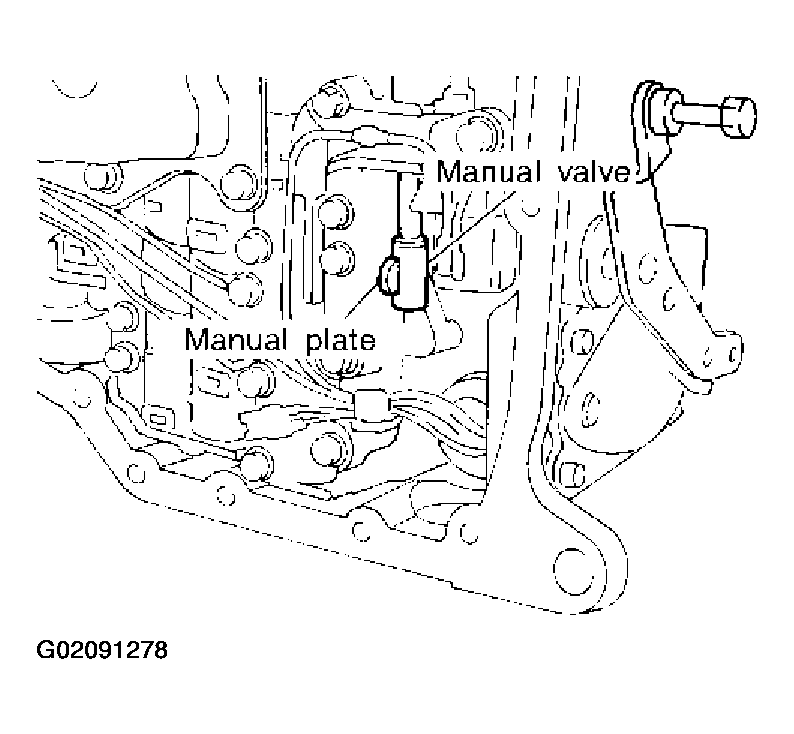

  Fig 18: Identifying Manual Valve & Manual Plate
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install control valve assembly on transmission case while aligning manual valve with manual plate.
4. Pass solenoid harness through transmission case and install terminal body on transmission case by pushing it.
5. Install stopper ring to terminal body.

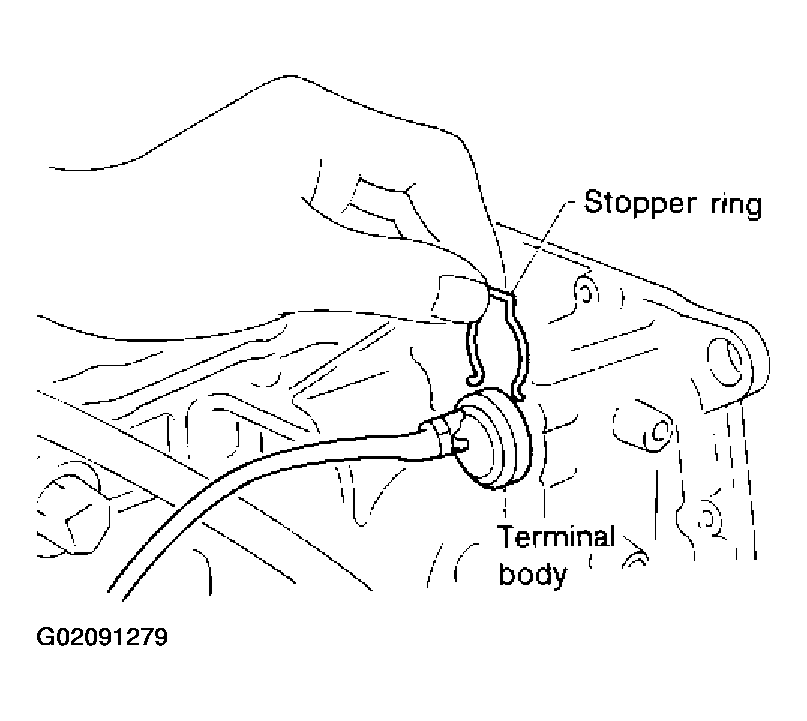

  Fig 19: Installing Stopper Ring To Terminal Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
6. Tighten bolts I, X and uacute .
  Bolt length, number and location:

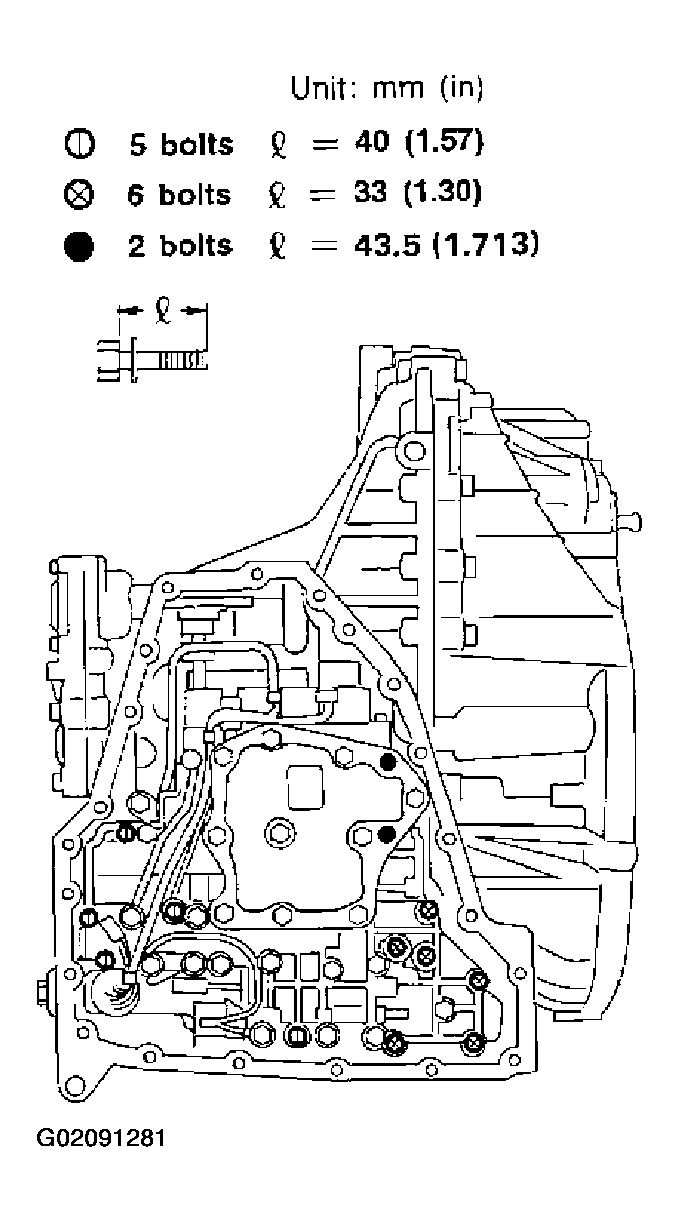

  Fig 20: Identifying Bolt Locations
  Courtesy of NISSAN MOTOR CO., U.S.A.

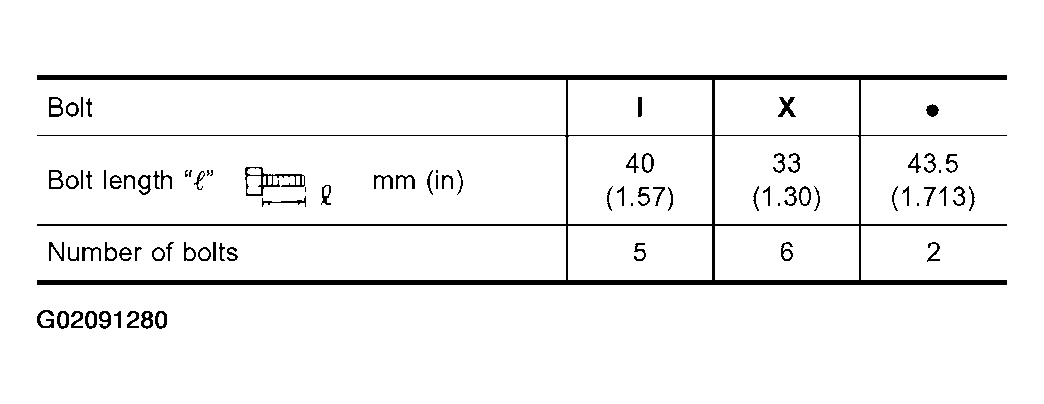

  Fig 21: Bolt Length, Number And Location Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pan.
1. Attach a magnet to oil pan.

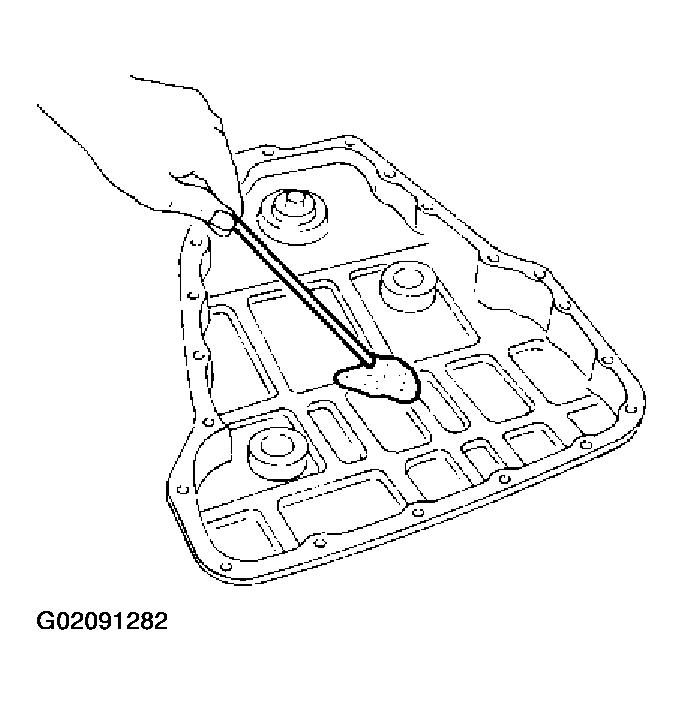

  Fig 22: Attaching Magnet To Oil Pan
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install new oil pan gasket on transmission case.
3. Install oil pan on transmission case.
  - Always replace oil pan bolts as they are self-sealing bolts.
  - Tighten four bolts in a criss-cross pattern to prevent dislocation of gasket.
4. Tighten oil pan bolts and drain plug to the specified torque. Refer to AT- 289.
Install park/neutral position (PNP) switch.
1. Set manual shaft in P position.
2. Temporarily install park/neutral position (PNP) switch on manual shaft.
3. Move selector lever to N position.

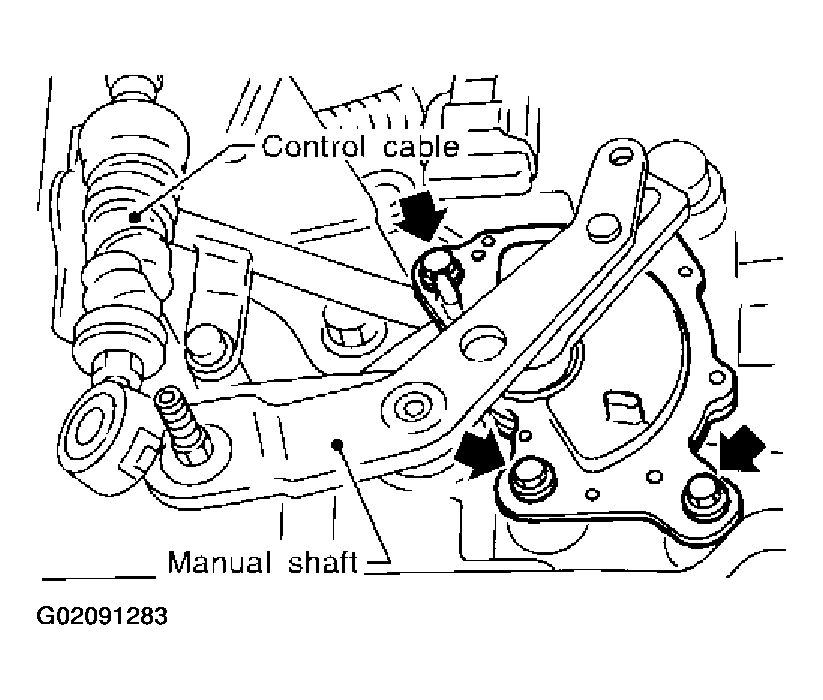

  Fig 23: Identifying Control Cable & Manual Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Use a 4 mm (0.16 in) pin for this adjustment.
  1. Insert the pin straight into the manual shaft adjustment hole.

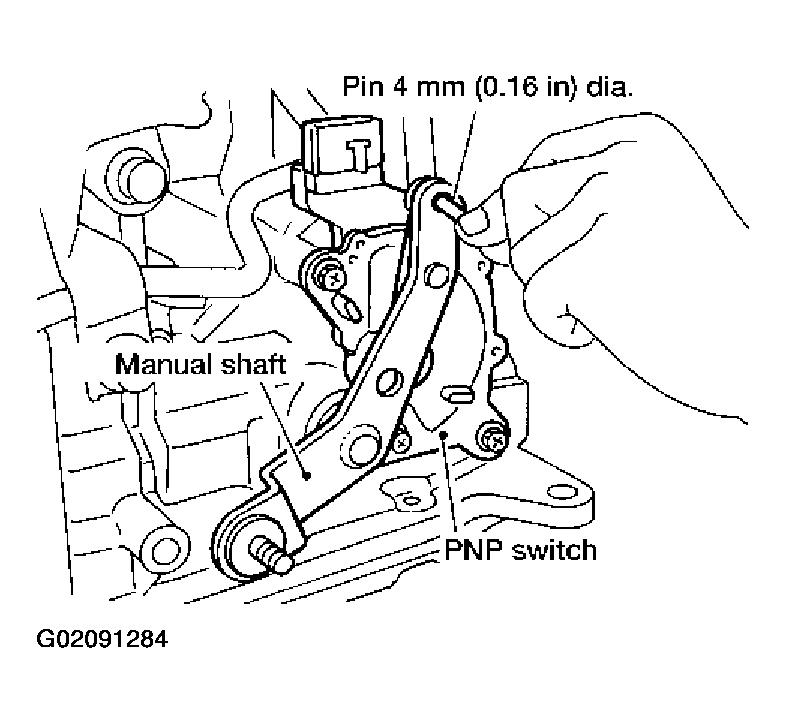

    Fig 24: Inserting Pin Straight Into Manual Shaft Adjustment Hole
    Courtesy of NISSAN MOTOR CO., U.S.A.
  2. ii. Rotate park/neutral position (PNP) switch until the pin can also be inserted straight into hole in park/neutral position (PNP) switch.
5. Tighten park/neutral position (PNP) switch fixing bolts. Refer to OVERHAUL .
6. Remove pin from adjustment hole after adjusting park/neutral position (PNP) switch.
Install A/T fluid charging pipe and fluid cooler tube to transmission case. Tighten A/T fluid charging pipe and fluid cooler tube bolts to the specified torque. Refer to OVERHAUL .

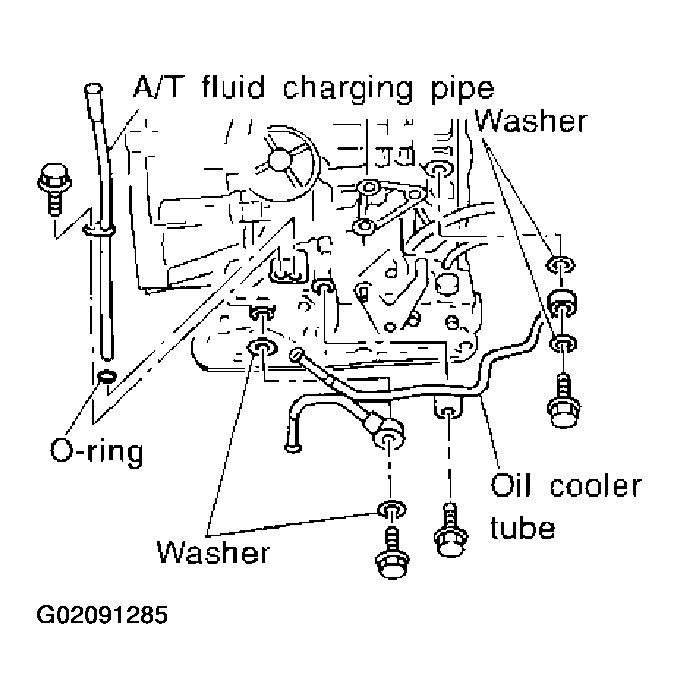

Fig 25: Installing A/T Fluid Charging Pipe & Fluid Cooler Tube
Courtesy of NISSAN MOTOR CO., U.S.A.
Install torque converter.

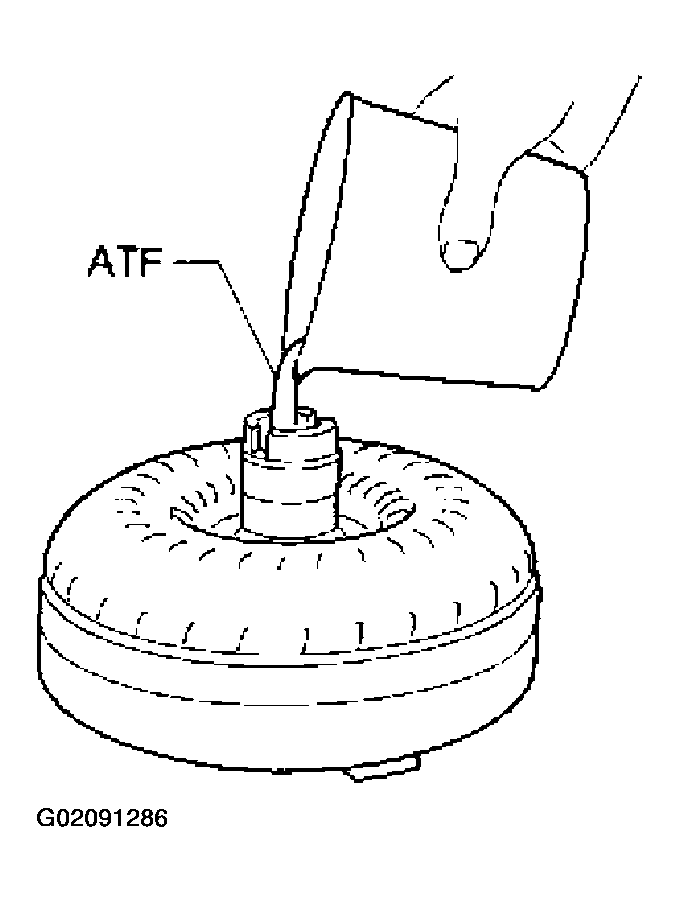

Fig 26: Pouring ATF Into Torque Converter
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Pour ATF into torque converter.
  - Approximately 1 liter (1-1/8 US qt, 7/8 Imp qt) of fluid is required for a new torque converter.
  - When reusing old torque converter, add the same amount of fluid as was drained.
2. Install torque converter while aligning notches of torque converter with notches of oil pump.

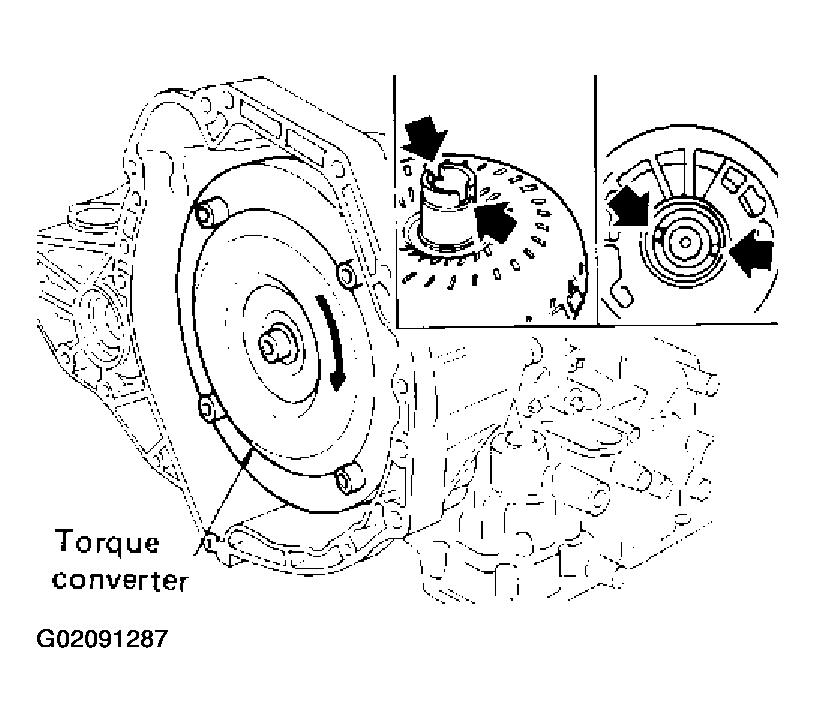

  Fig 27: Installing & Aligning Torque Converter Notches With Oil Pump Notches
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Measure distance "A" to check that torque converter is in proper position.

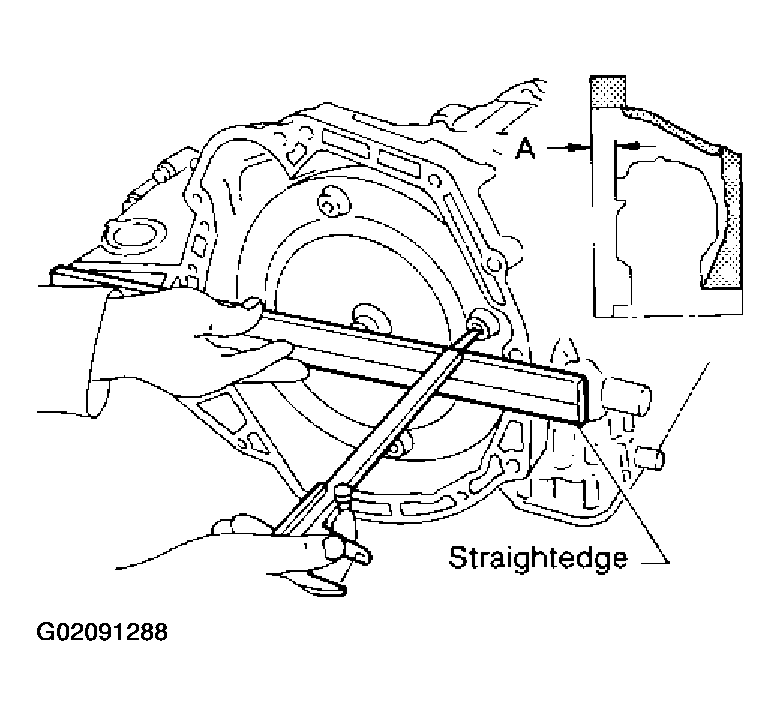

  Fig 28: Measuring Distance A Using Straightedge
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Distance A:
    1. Refer to SDS REMOVAL AND INSTALLATION .
