CONSULT-II Reference Value In Data Monitor Mode

Remarks: Specification data are reference values.

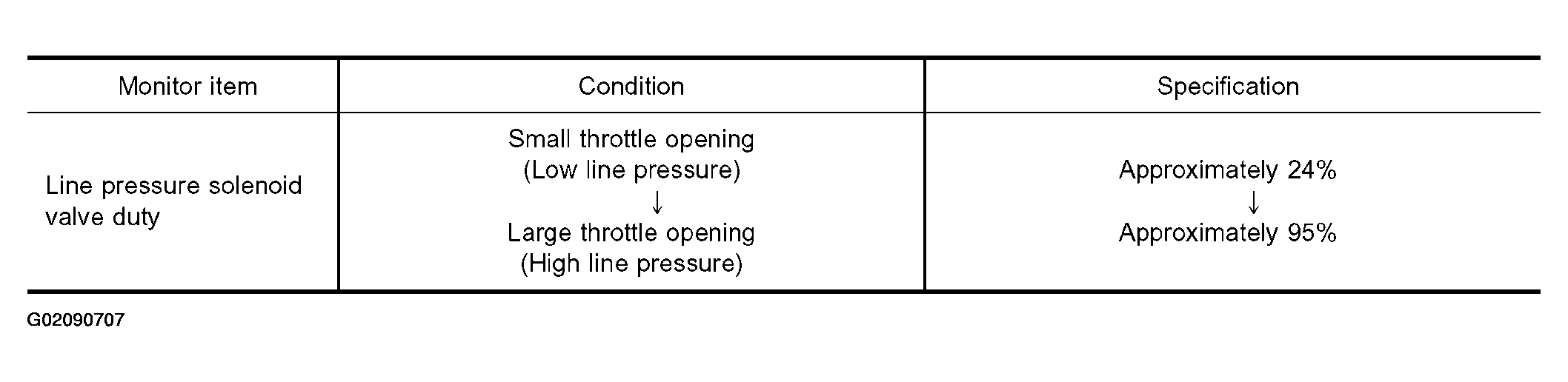

Fig 1: Identifying Consult-II Reference Value In Data Monitor Mode Table

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The line pressure duty cycle value is not consistent when the closed throttle position switch is ON. To confirm the line pressure duty cycle at low pressure, the accelerator (throttle) should be open until the closed throttle position switch is OFF.
