No Tools

  1. Start engine.
  2. Drive vehicle under the following conditions: Selector lever in "D", vehicle speed higher than 40 km/h (25 MPH), engine speed higher than 1,500 rpm, throttle opening greater than 1.0/8 of the full throttle position and driving for more than 5 seconds.

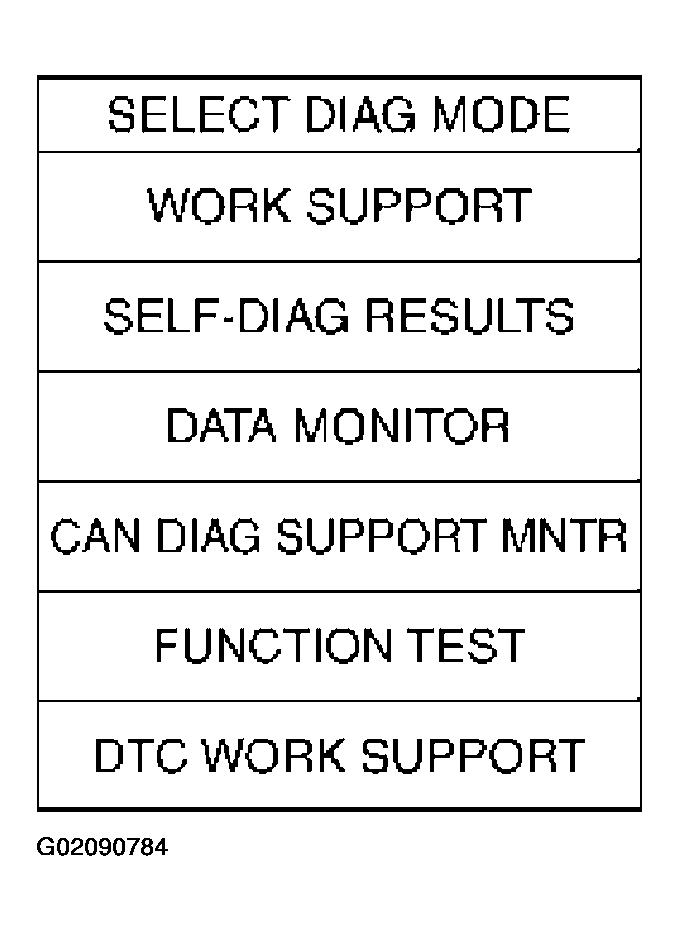

    Fig 1: Displaying Select Diag Mode Screen With Consult-II
    G02090784Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Perform self-diagnosis. Refer to TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) .

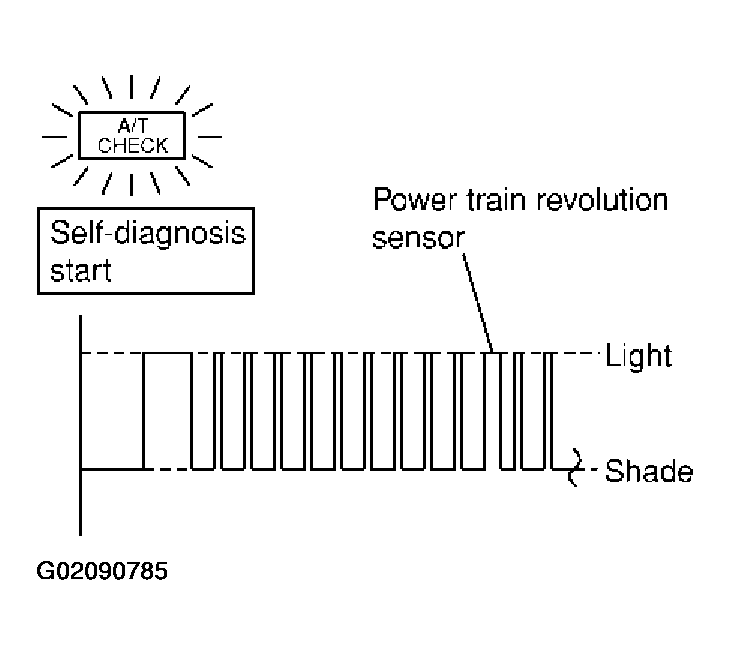

    Fig 2: Identifying Power Train Revolution Sensor
    G02090785Courtesy of NISSAN MOTOR CO., U.S.A.
