WITH Consult-II

  1. Start engine.
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
  3. Drive vehicle under the following conditions: Selector lever in "D", vehicle speed higher than 40 km/h (25 MPH), engine speed higher than 1,500 rpm, throttle opening greater than 1.0/8 of the full throttle position and driving for more than 5 seconds.

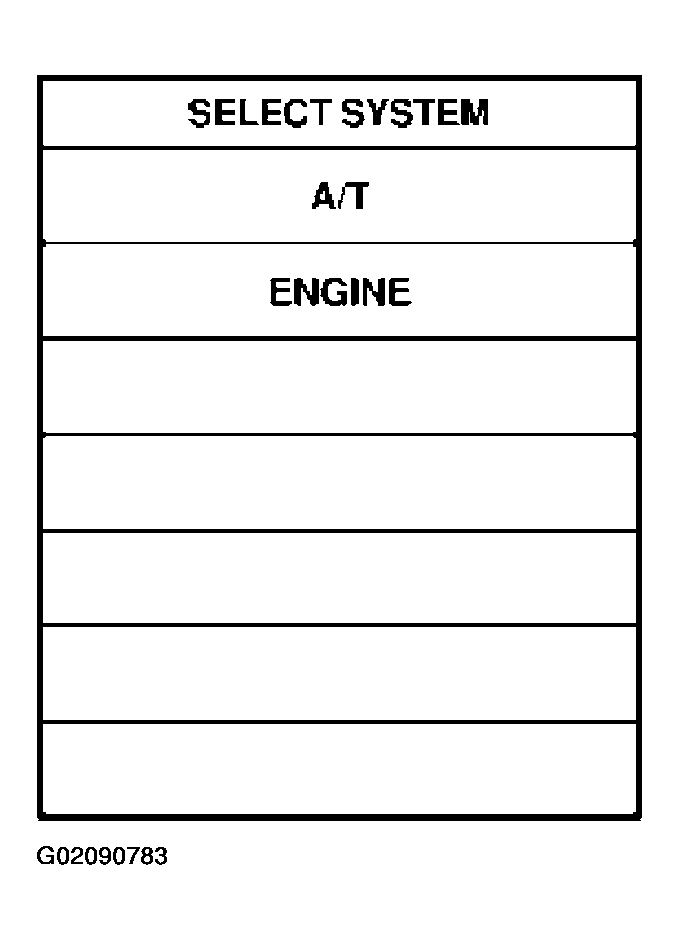

    Fig 1: Displaying Select System Screen With Consult-II
    G02090783Courtesy of NISSAN MOTOR CO., U.S.A.
