Diagnostic Procedure

With CONSULT-II

1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "SELF-DIAG RESULTS" mode for "A/T" with CONSULT-II.
3. The "CAN COMM CIRCUIT" is detected.

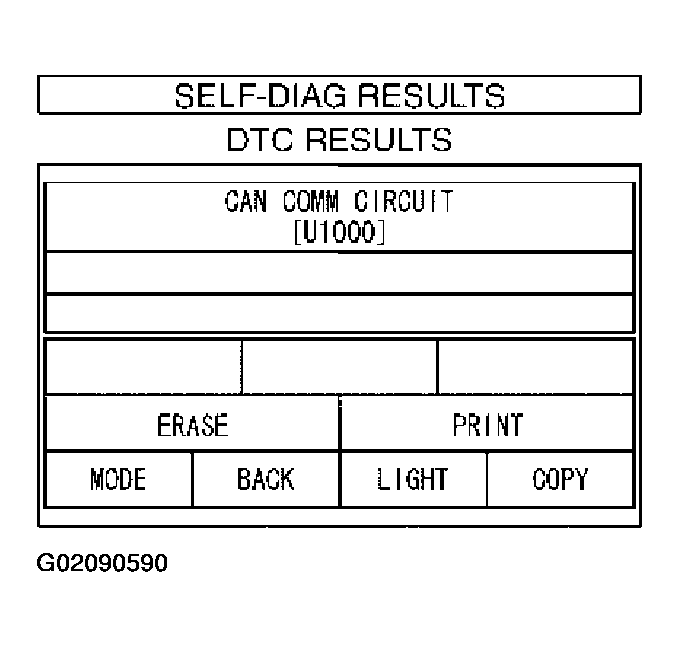

   Fig 1: Identifying Diagnostic Procedure With Consult-II

   Courtesy of NISSAN MOTOR CO., U.S.A.

Yes or No?

Yes: Print out CONSULT-II screen, go to CAN SYSTEM (FOR TCS MODELS) and CAN SYSTEM (FOR VDC MODELS) .

No: Inspection End
