Control Valve Assembly And Accumulators: Installation

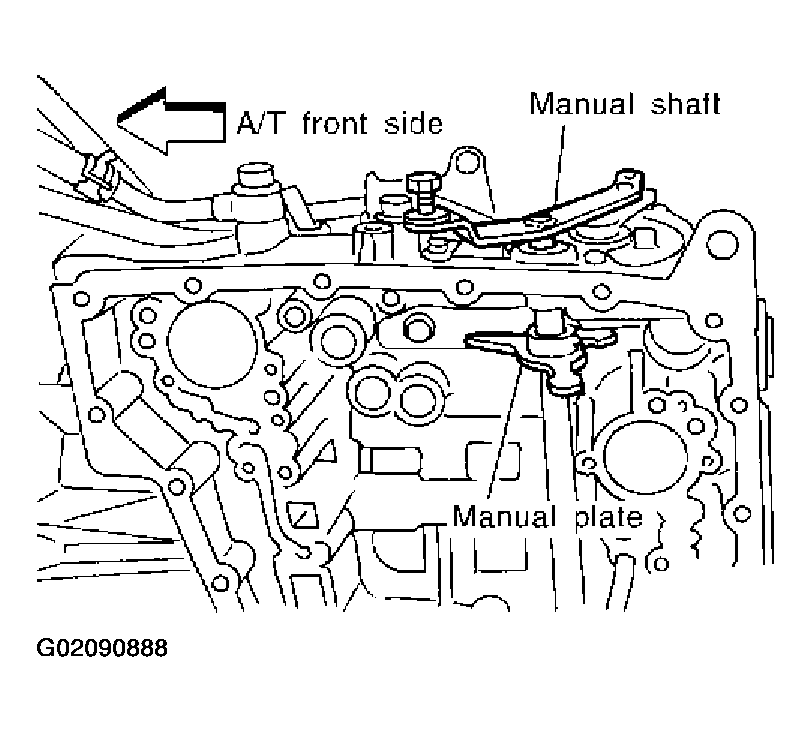

- Set manual shaft in Neutral, then align manual plate with groove in manual valve.
- After installing control valve assembly, make sure that selector lever can be moved to all positions.
Courtesy of NISSAN MOTOR CO., U.S.A.
