D Position

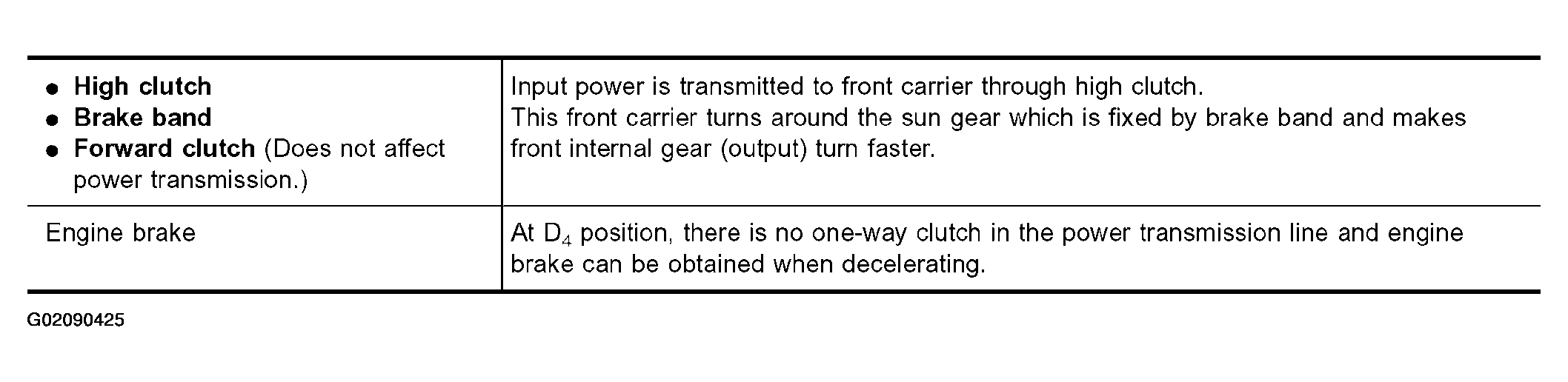

Fig 1: Identifying D
4
Position Table
Courtesy of NISSAN MOTOR CO., U.S.A.

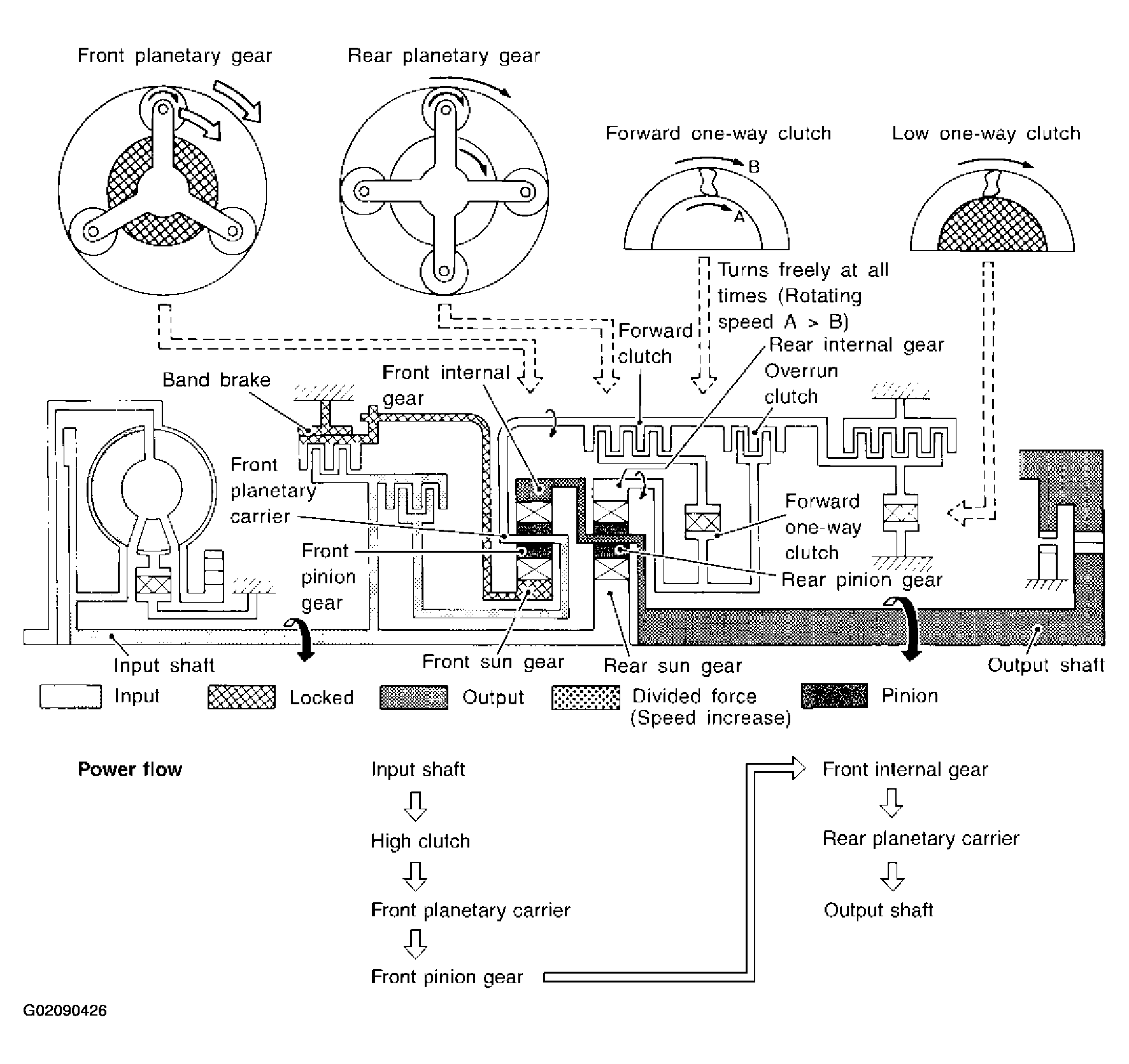

Fig 2: Identifying D
4
Position Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
