R Position

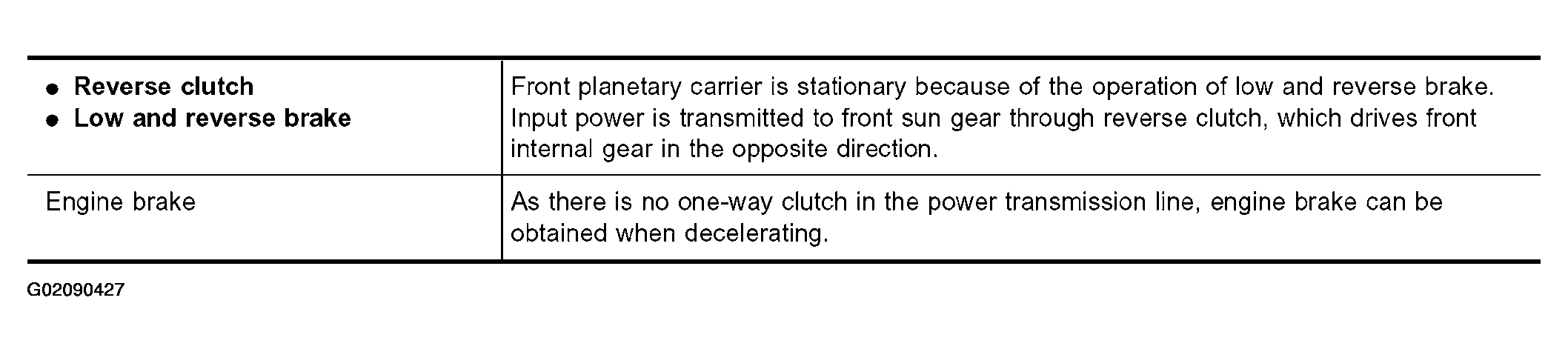

Fig 1: Identifying R Position Table
G02090427Courtesy of NISSAN MOTOR CO., U.S.A.

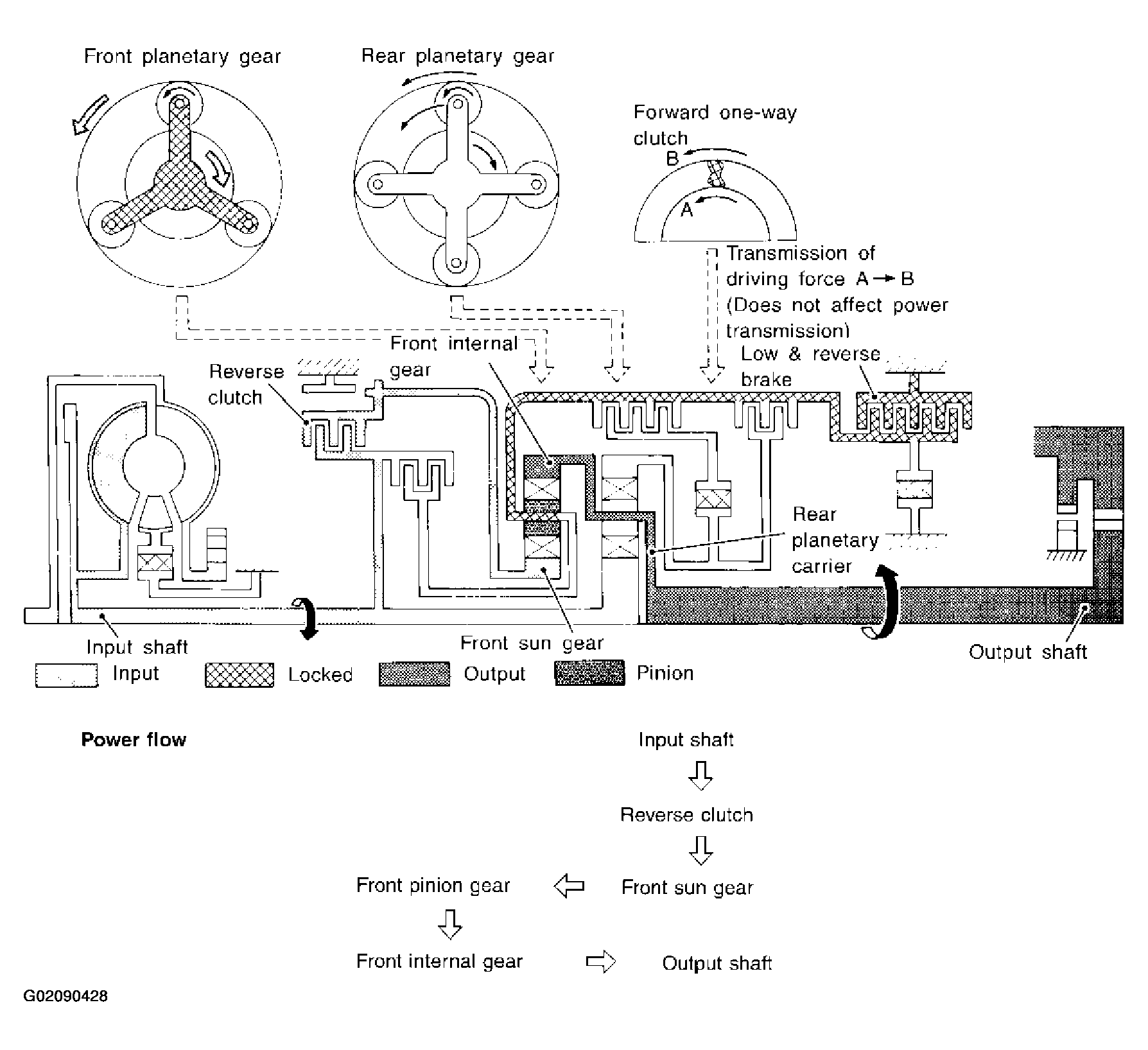

Fig 2: Identifying R Position Of Overall System
G02090428Courtesy of NISSAN MOTOR CO., U.S.A.
