Band Servo Piston Assembly: Components

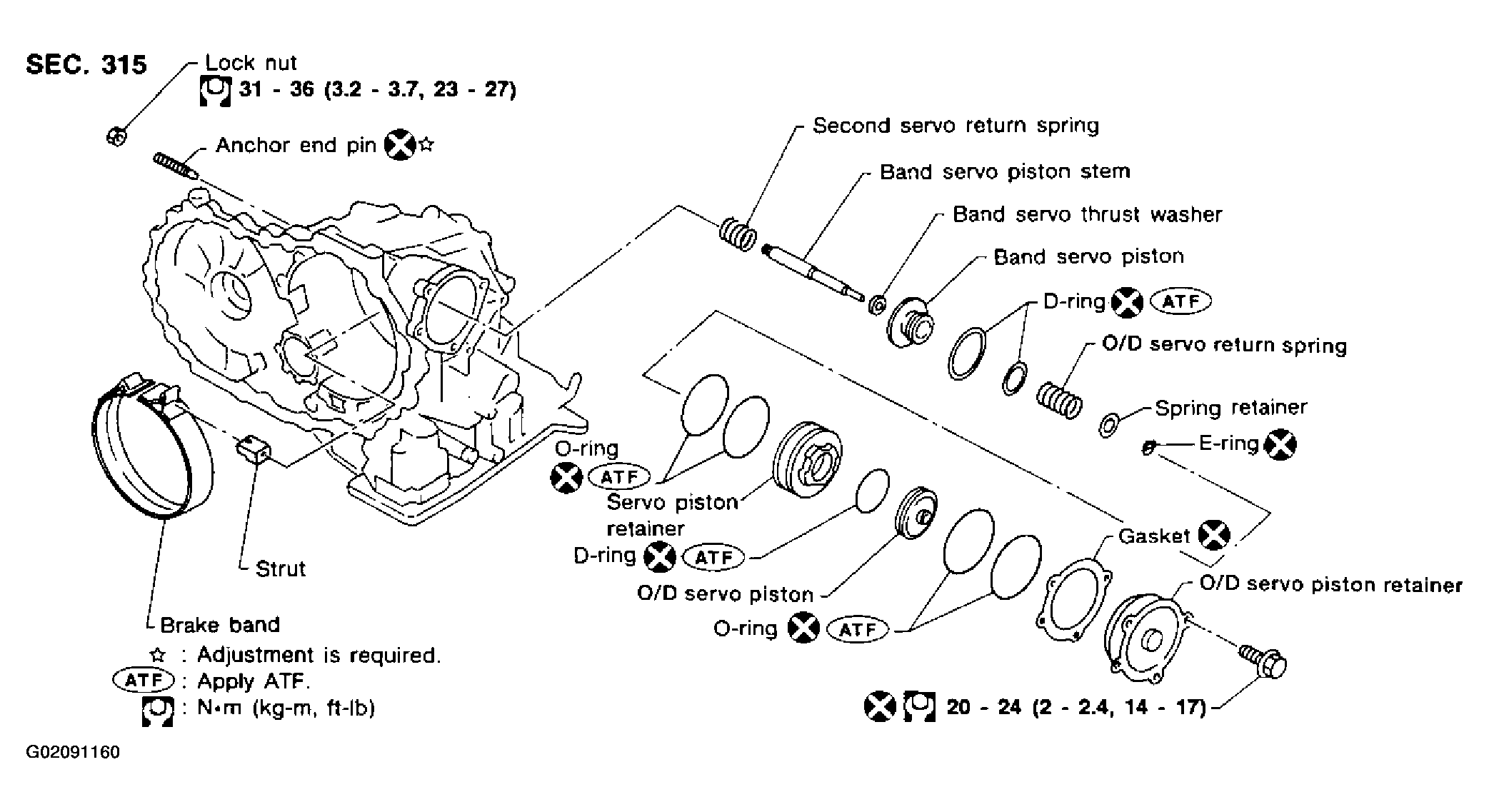

Fig 1: Identifying Band Servo Piston Assembly Components

G02091160

Courtesy of NISSAN MOTOR CO., U.S.A.
