Control Valve Lower Body: Disassembly

Remove valves at retainer plate. For removal procedures, refer to DISASSEMBLY , CONTROL VALVE .

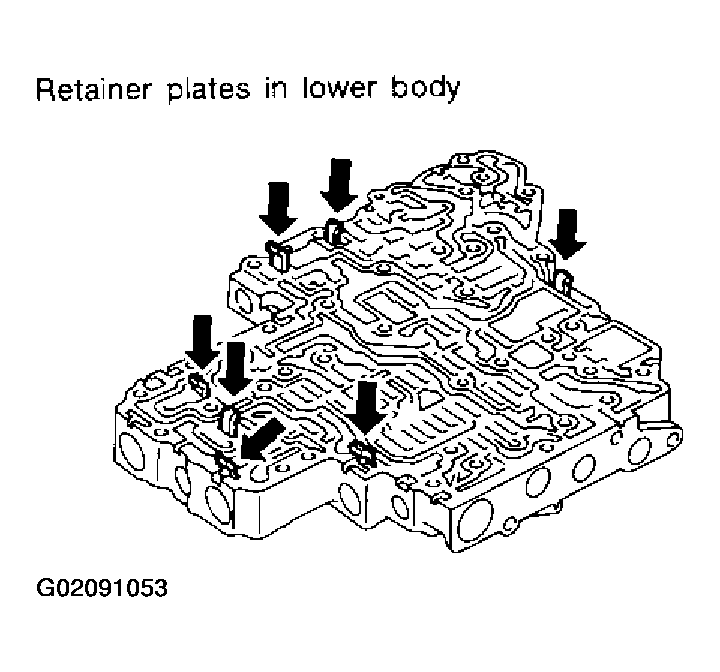

Fig 1: Locating Retainer In Lower Body For Removal
Courtesy of NISSAN MOTOR CO., U.S.A.
