Final Drive: Assembly

Attach side gear thrust washers to side gears, then install pinion mate thrust washers and pinion mate gears in place.

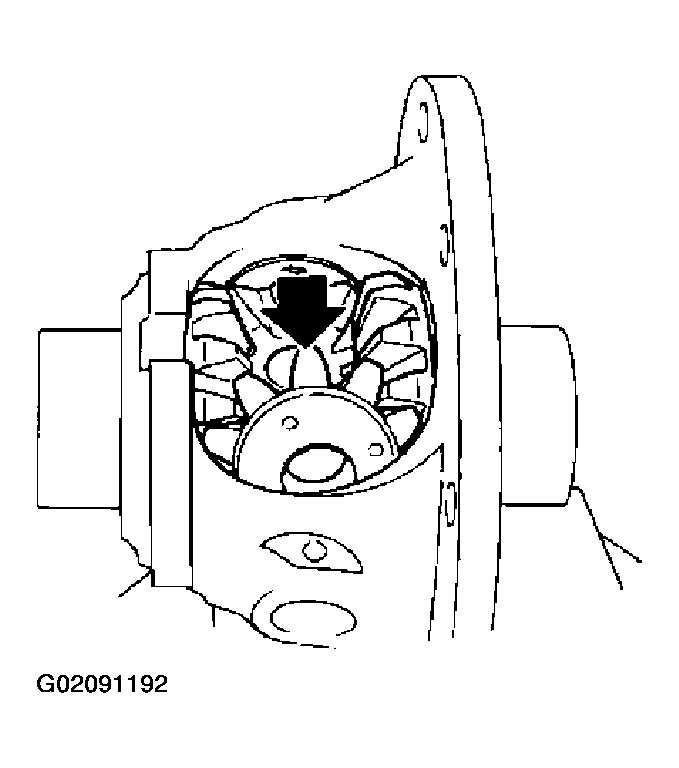

Fig 1: Installing Pinion Mate Thrust Washers & Pinion Mate Gears
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert pinion mate shaft.

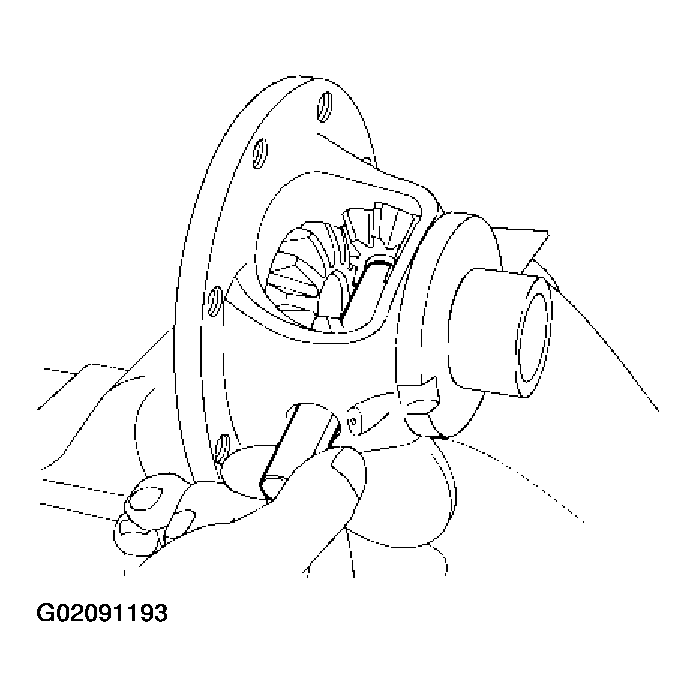

Fig 2: Inserting Pinion Mate Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
- When inserting, be careful not to damage pinion mate thrust washers.
Measure clearance between side gear and differential case with washers following the procedure below:

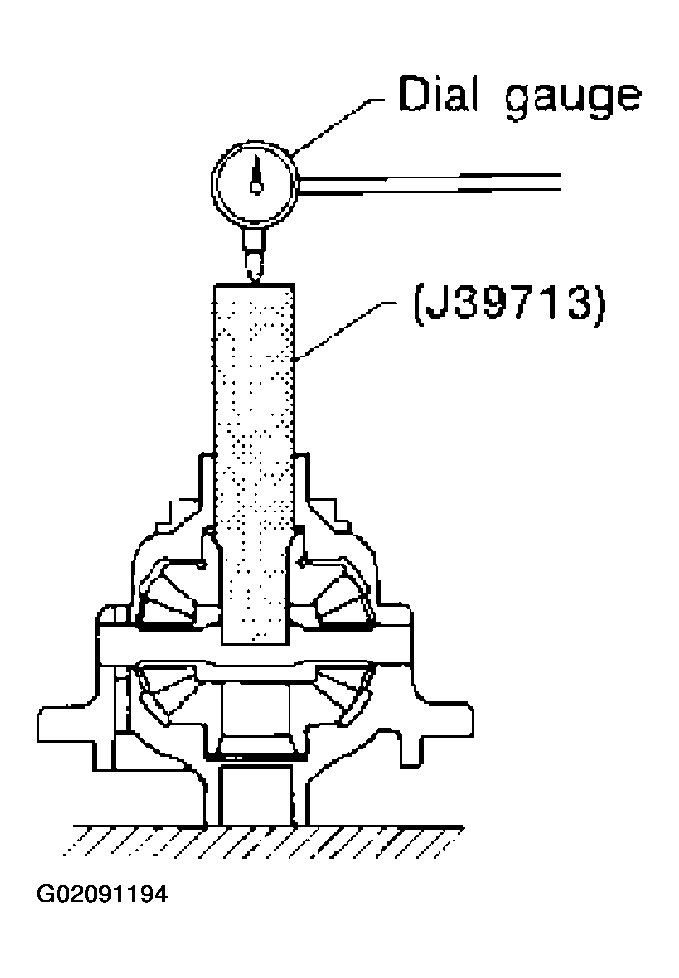

Fig 3: Measuring Clearance Between Side Gear & Differential Case
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Set Tool and dial indicator on side gear.
2. Move side gear up and down to measure dial indicator deflection. Always measure indicator deflection on both side gears.

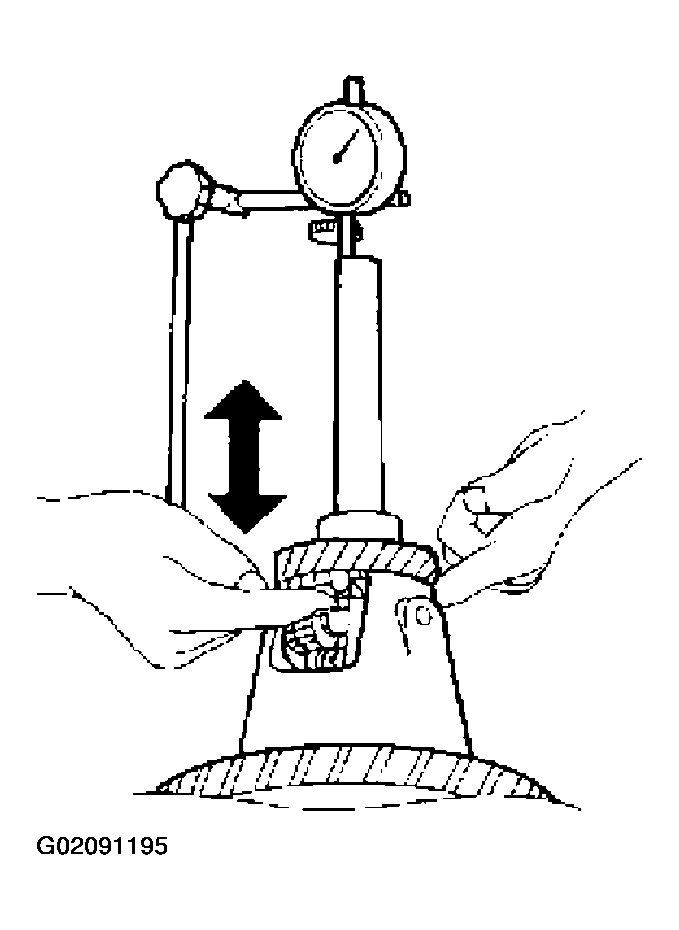

  Fig 4: Using Dial Indicator To Measure Side Gear Up & Down
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Clearance between side gear and differential case with washers:
    1. 0.1 - 0.2 mm (0.004 - 0.008 in)
3. If not within specification, adjust clearance by changing thickness of side gear thrust washers.
  1. Side gear thrust washer:
    1. Refer to SDS LOW & REVERSE BRAKE .
Install lock pin.
- Make sure that lock pin is flush with case.

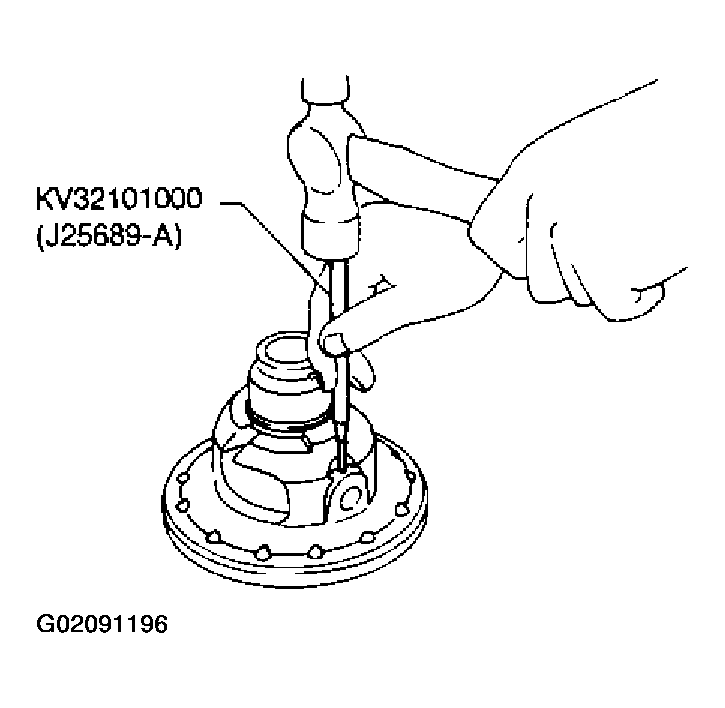

Fig 5: Installing Lock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Install speedometer drive gear on differential case.

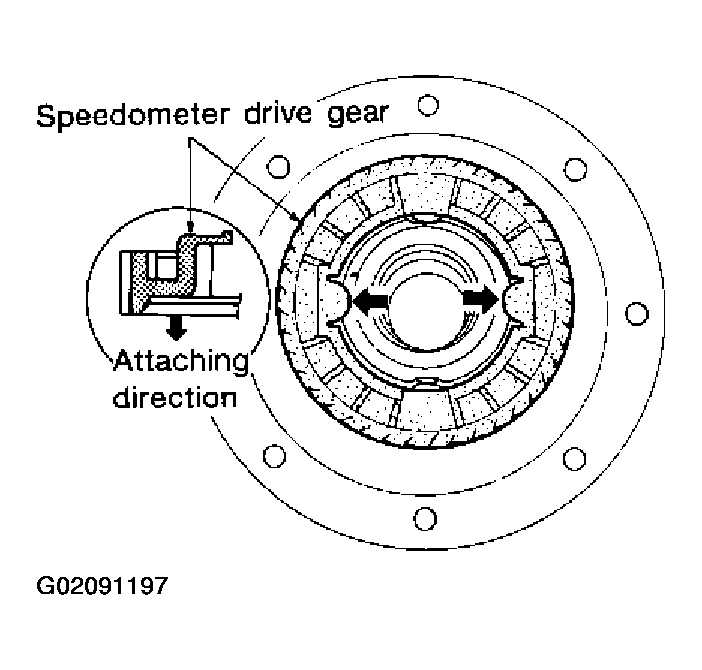

Fig 6: Installing Speedometer Drive Gear On Differential Case
Courtesy of NISSAN MOTOR CO., U.S.A.
- Align the projection of speedometer drive gear with the groove of differential case.
Press on differential side bearings.

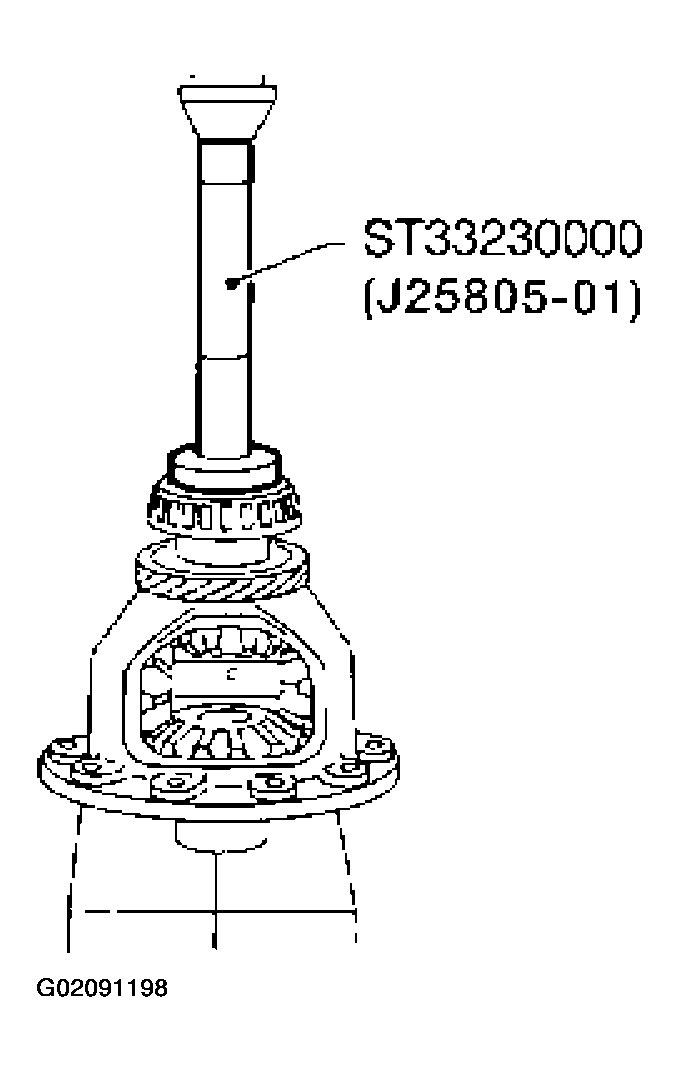

Fig 7: Pressing On Differential Side Bearings
Courtesy of NISSAN MOTOR CO., U.S.A.
Install final gear and tighten fixing bolts in a crisscross pattern.

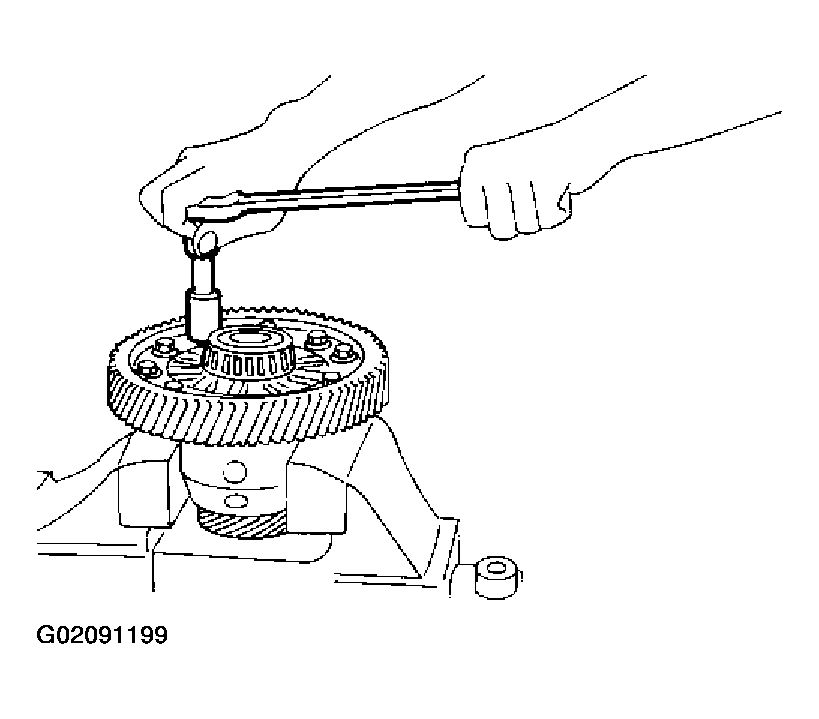

Fig 8: Installing Final Gear & Tighten Fixing Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
