Control Unit Input/Output Signal Standard

The standard values (voltage), measured with an analog tester in contact with control unit terminal, are shown in illustration:

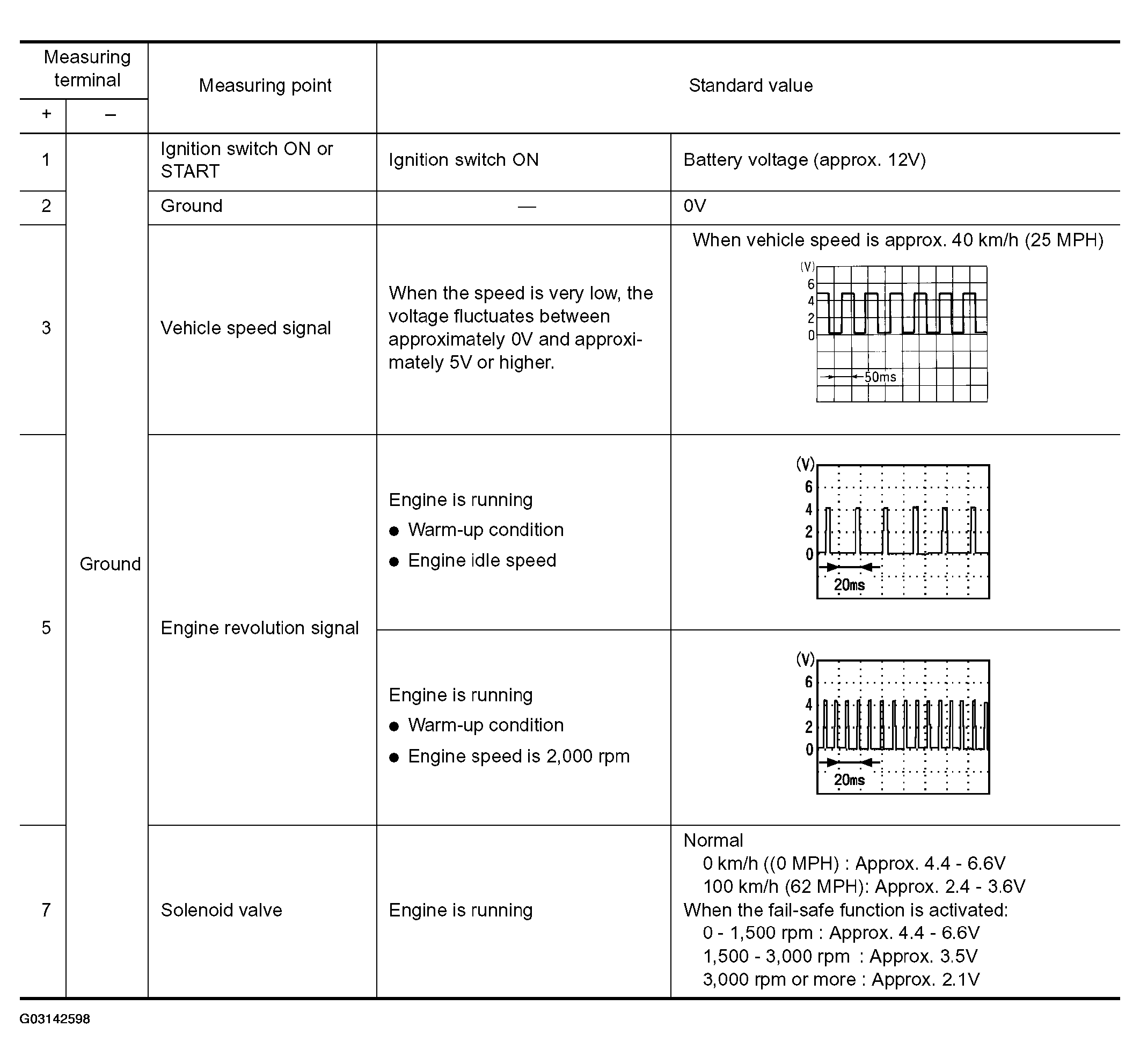

Fig 1: Control Unit Input/Output Signal Standard Data Values Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
