Electronic Key System: Schematic

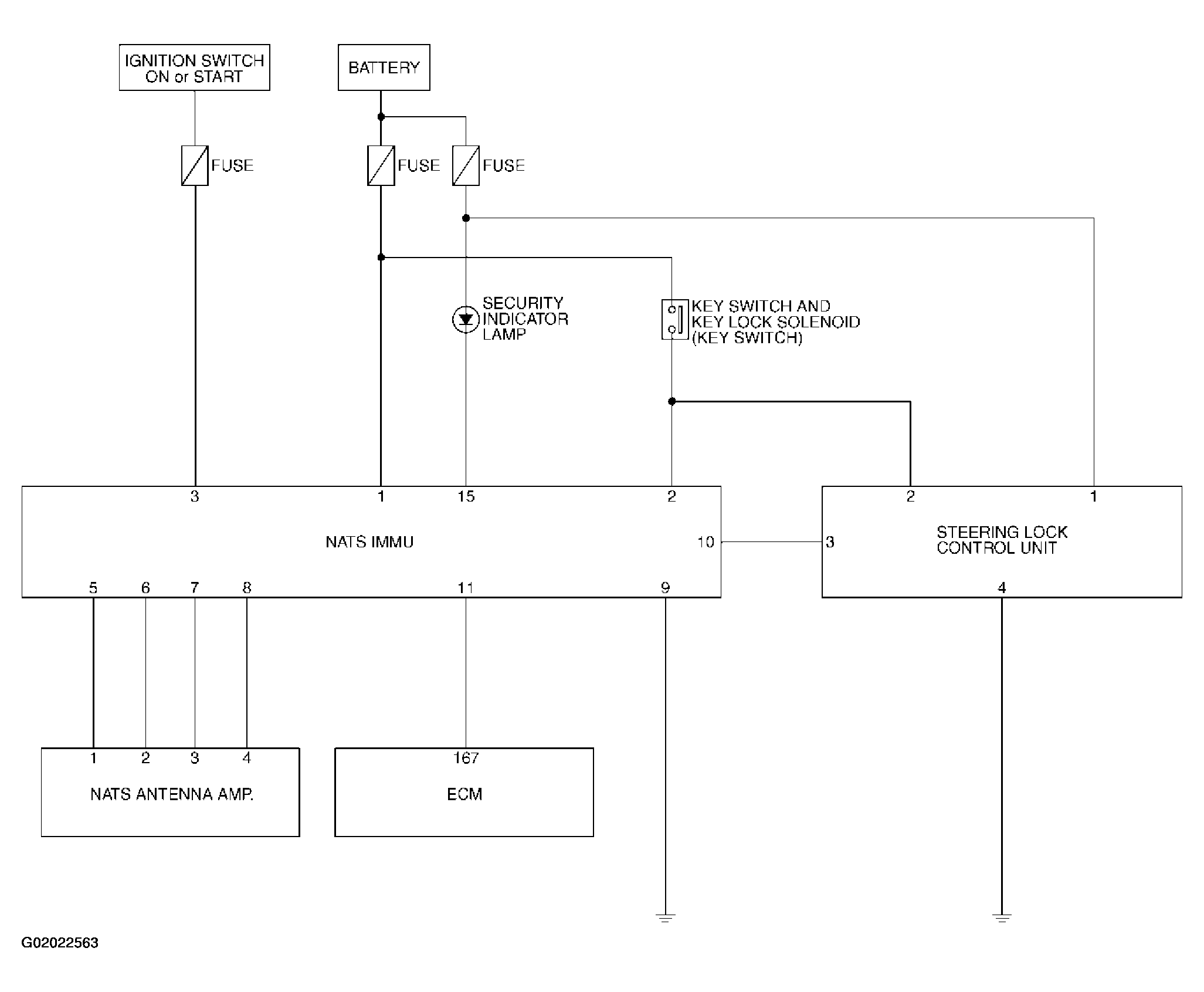

Fig 1: Schematic Diagram Of Electronic Key System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
