Terminals and Reference Value for NATS IMMU

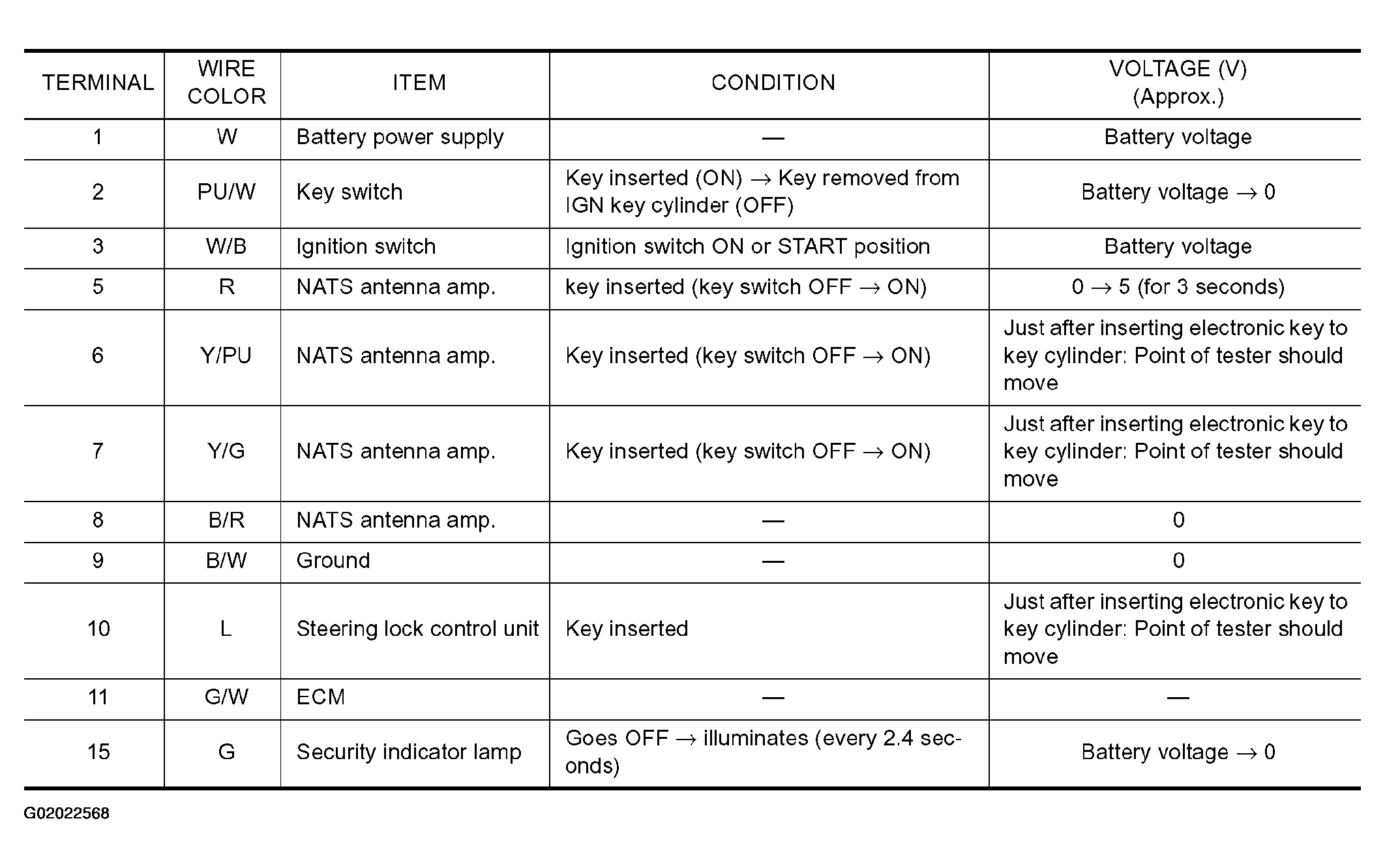

Fig 1: Identifying Terminals And Reference Value For NATS IMMU Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
