Consult-II Basic Operation Procedure

Turn ignition switch OFF.

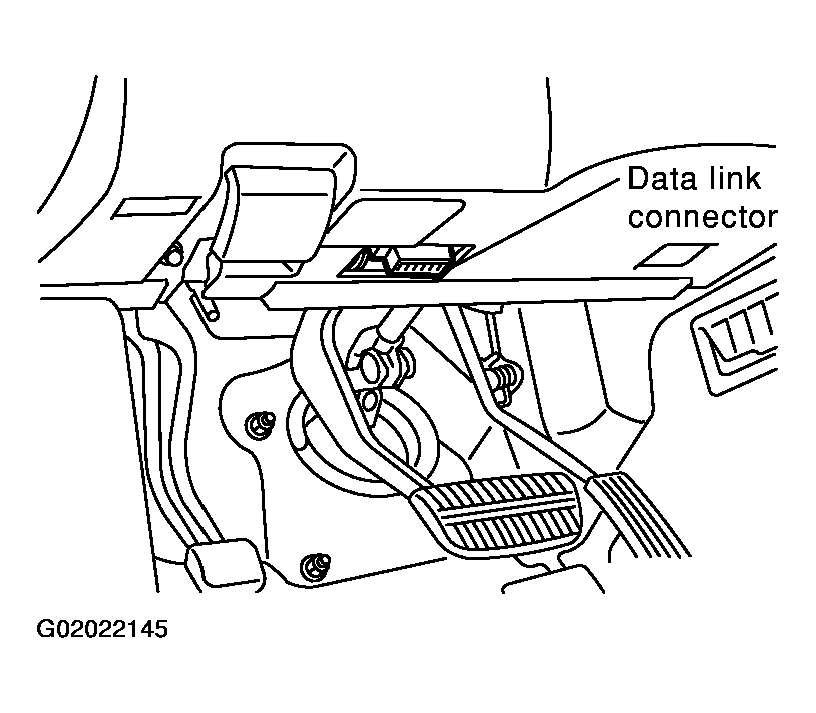

Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
Turn ignition switch ON.

Fig 1: CONSULT-II Basic Operation Procedure (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

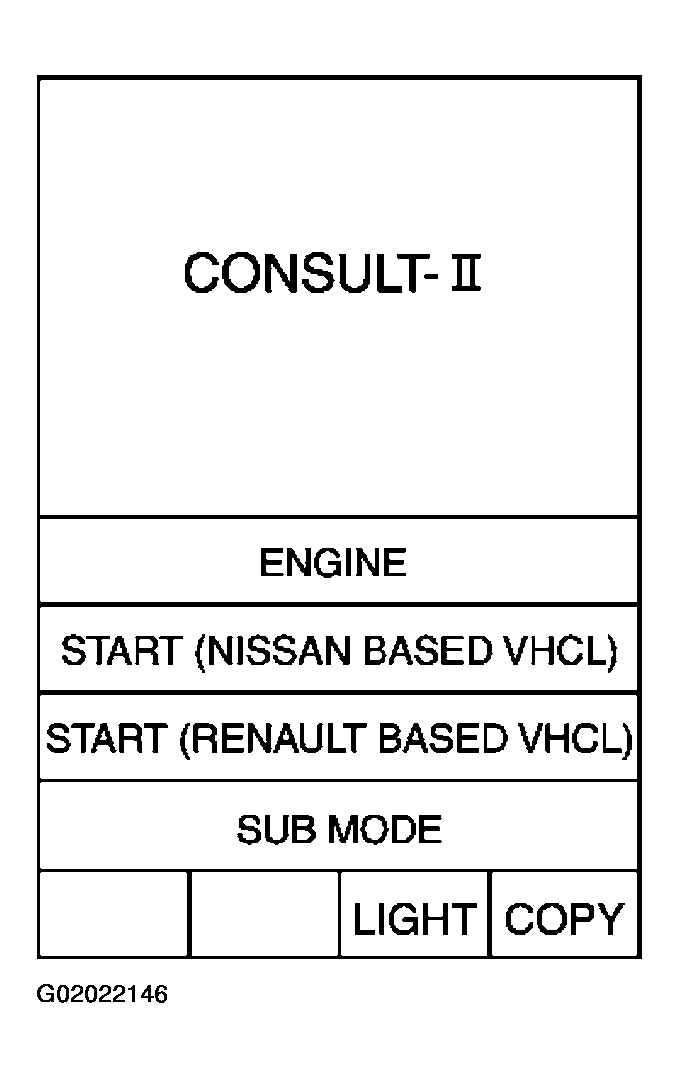

Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Basic Operation Procedure (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

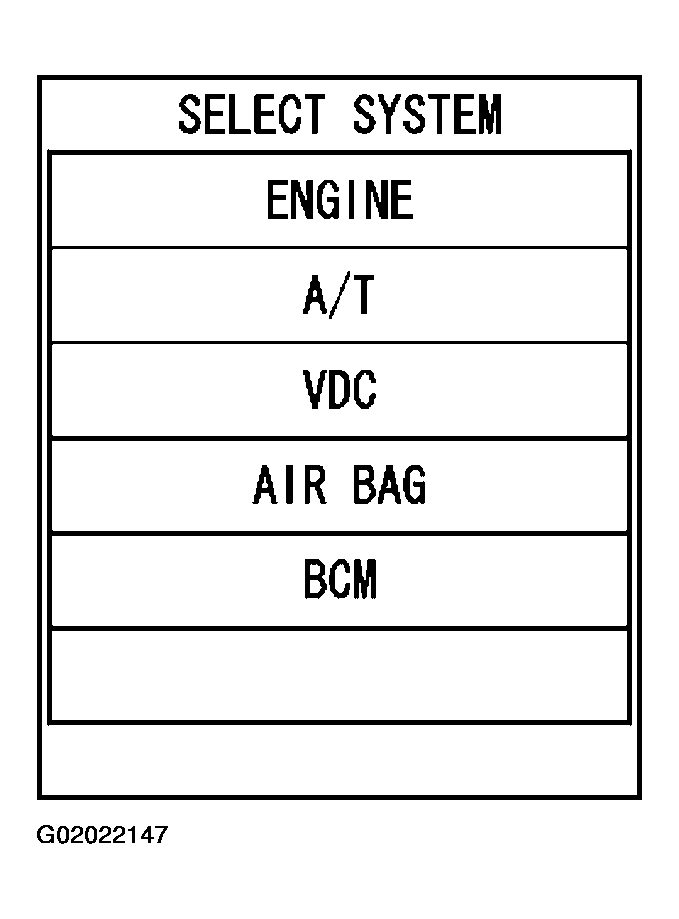

Touch "VDC" in the "Diagnosis System Selection" screen. If "VDC" is not indicated, "CONSULT-II Data Link Connector (DLC) Circuit".

Fig 3: CONSULT-II Basic Operation Procedure (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

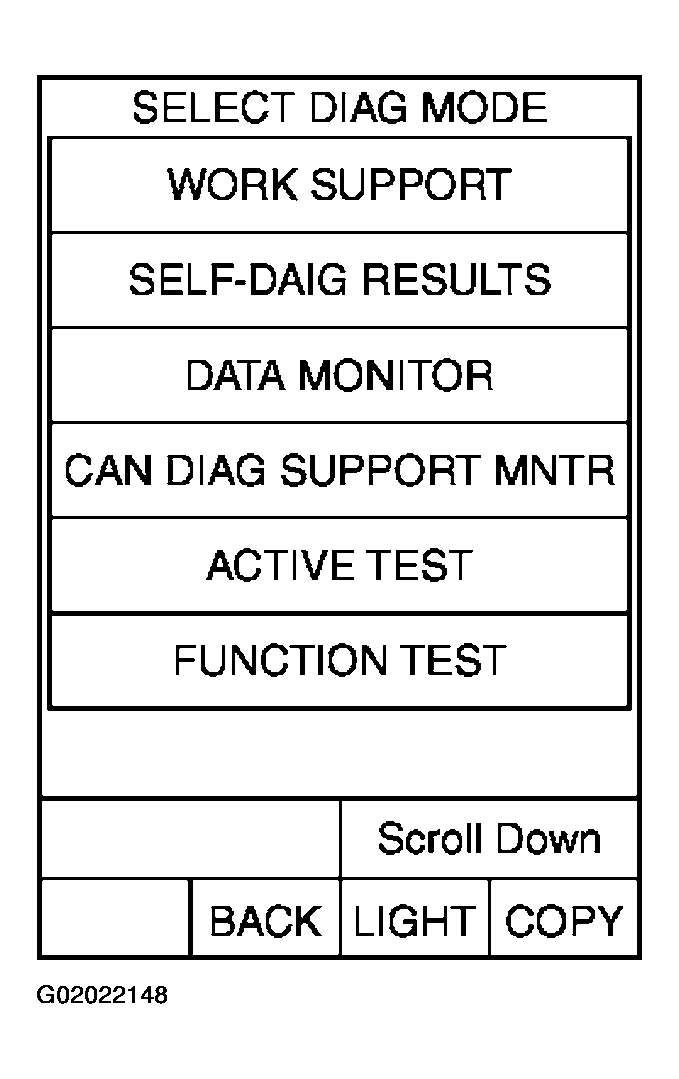

Select the required diagnostic location from the "Diagnosis Mode Selection" screen.
For further information, see the CONSULT-II Operation Manual.

Fig 4: CONSULT-II Basic Operation Procedure (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
