Display Item List

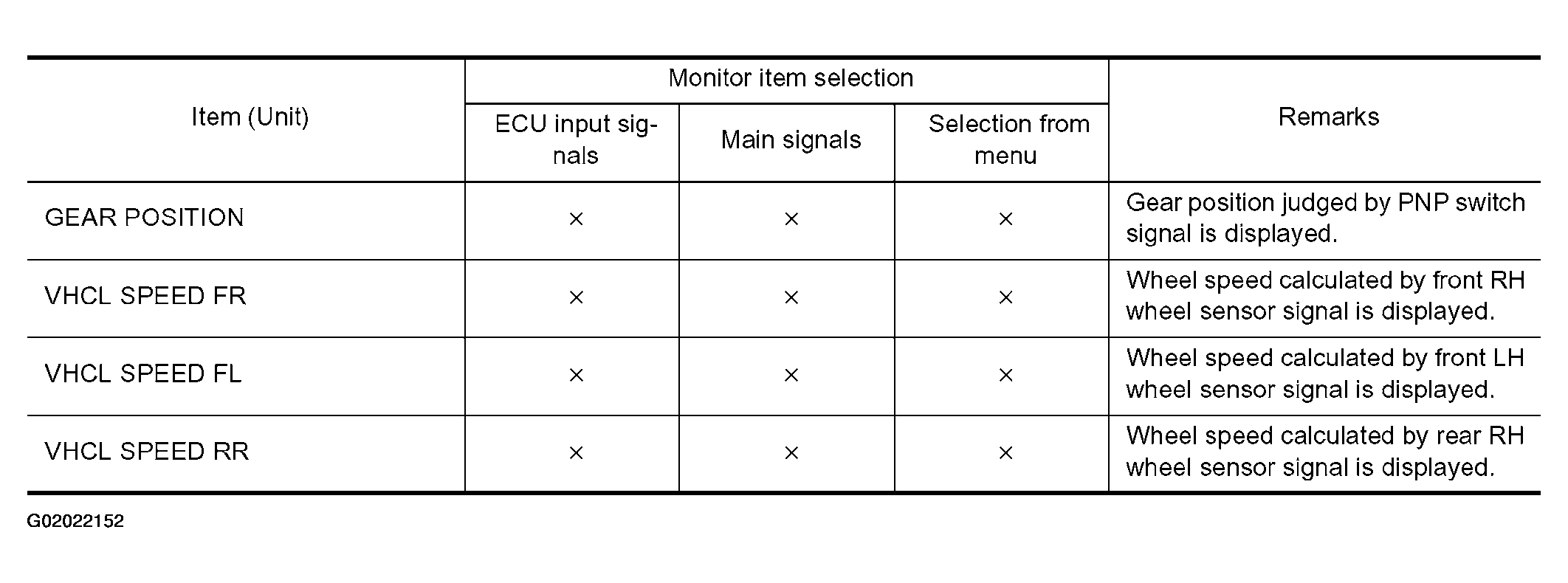

Fig 1: Data Monitor Display Item List (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

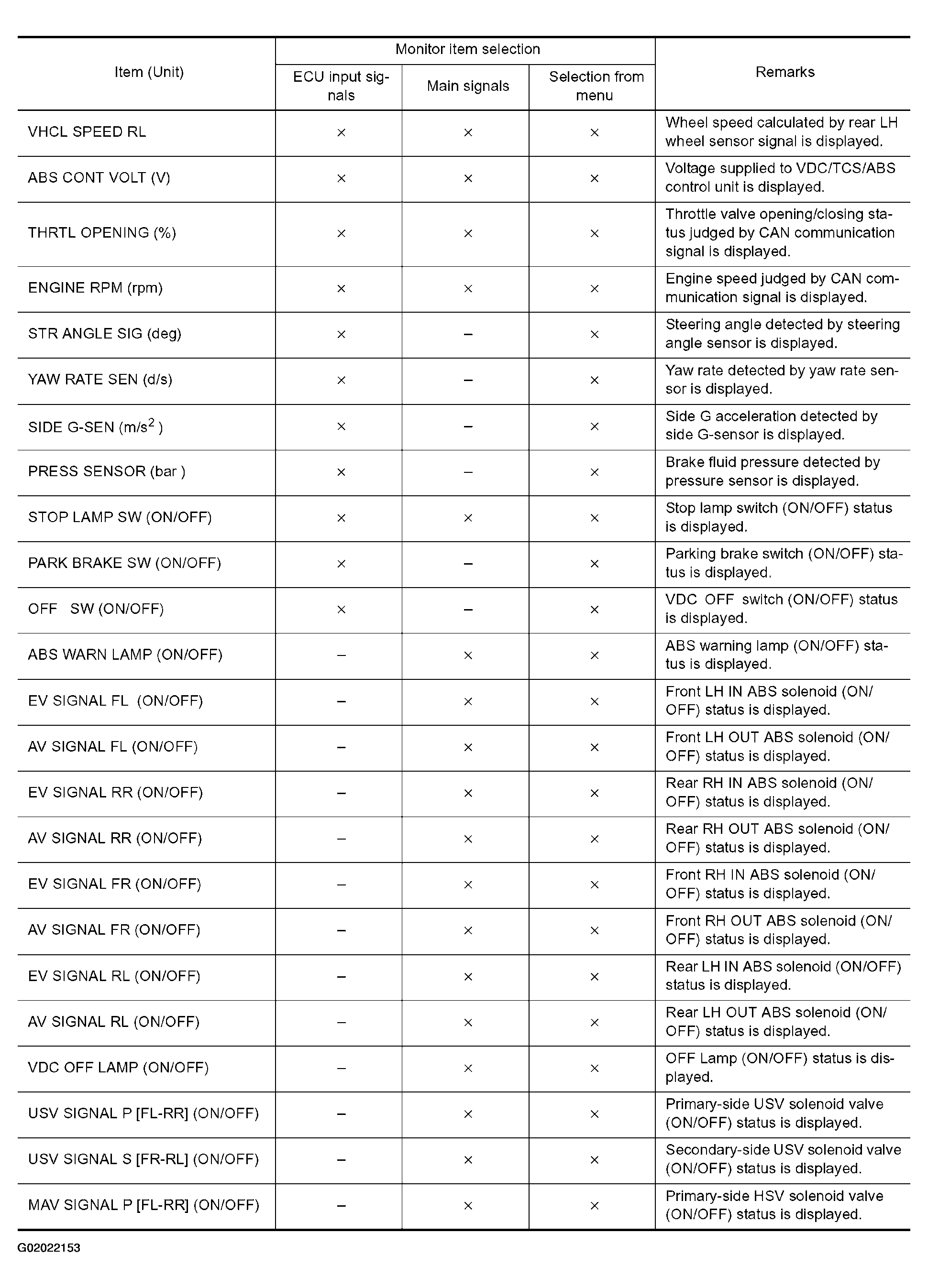

Fig 2: Data Monitor Display Item List (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

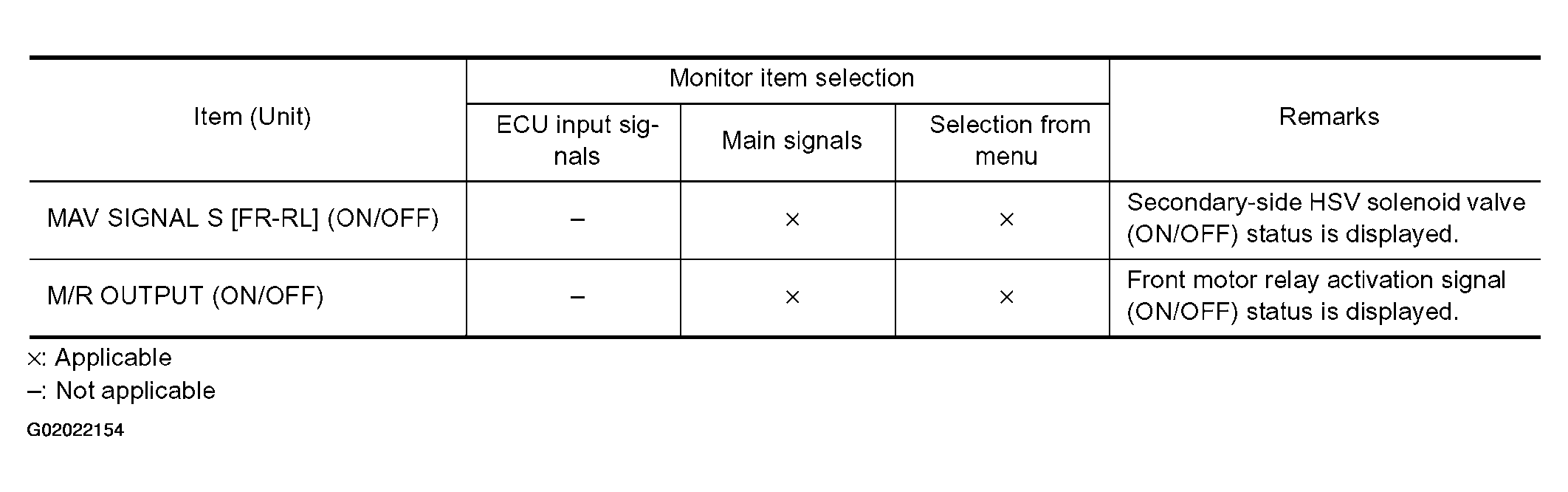

Fig 3: Data Monitor Display Item List (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
