Component Installation Location

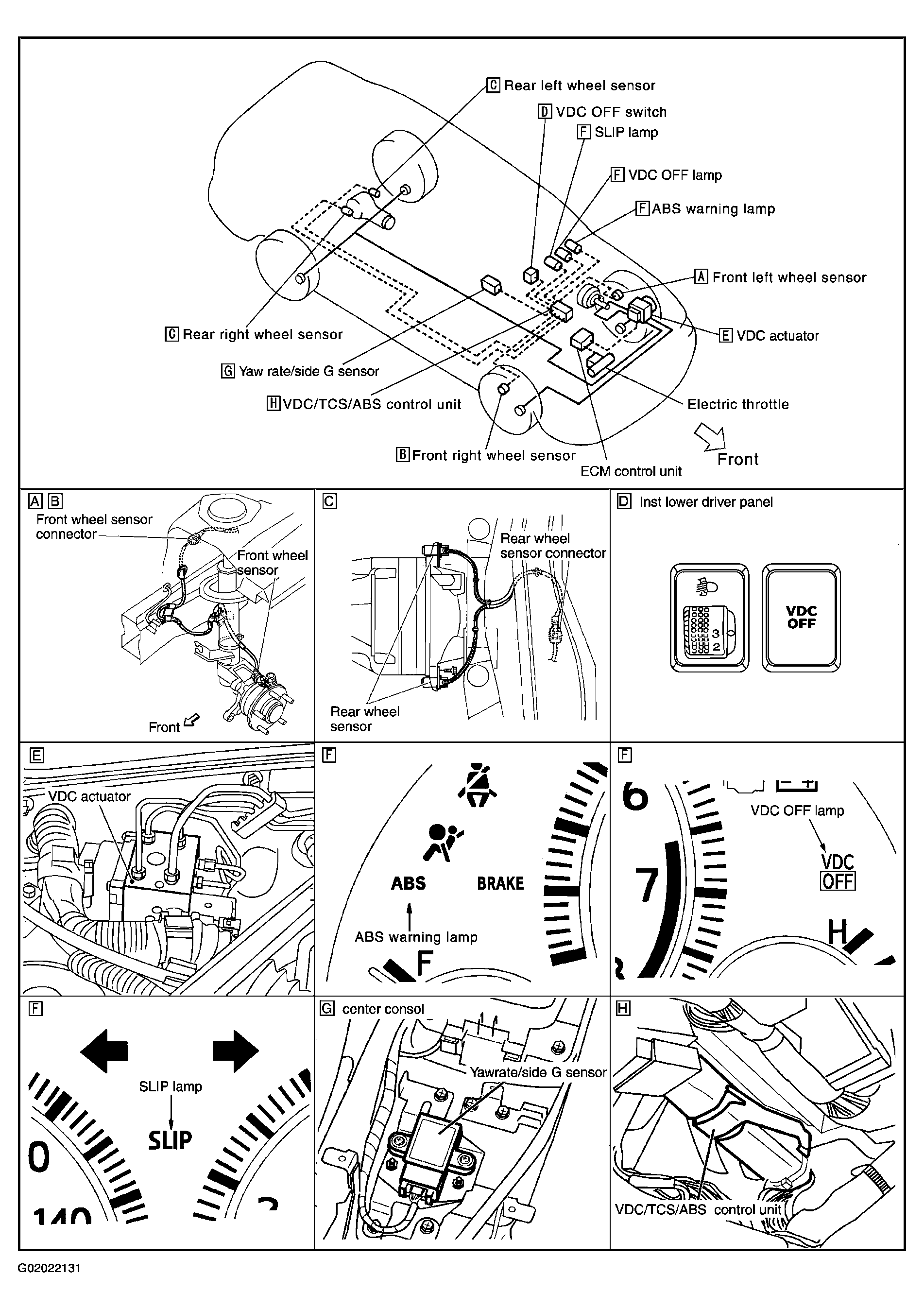

Fig 1: Locating VDC, TCS And ABS Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
