VDC Relay Box: Notes

Disconnect VDC relay box connector E55, E56 and E57. Check continuity, resistance value, and insulation between any pair of terminals in the VDC relay box.

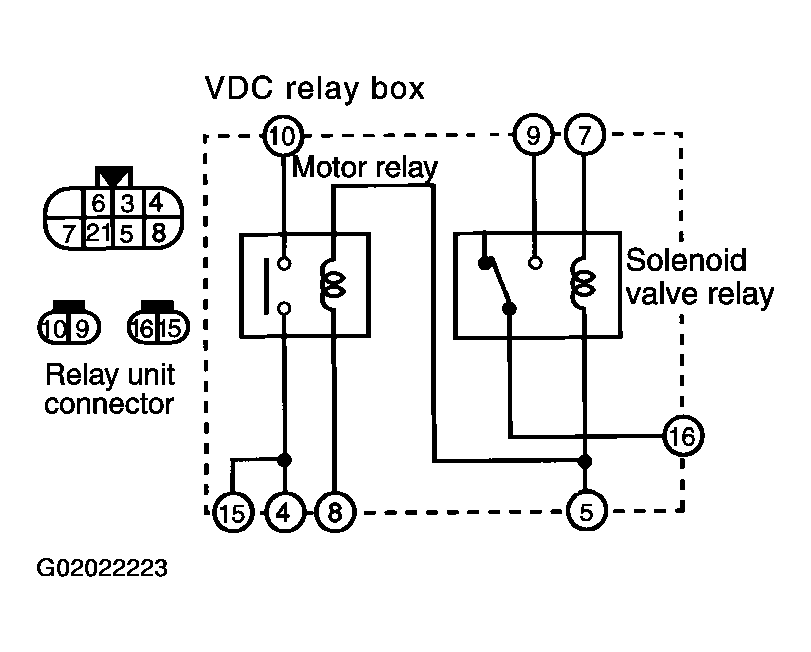

Fig 1: Checking VDC Relay Box

Courtesy of NISSAN MOTOR CO., U.S.A.
