Inspection Procedure

  1. SELF-DIAGNOSIS RESULT CHECK

    Check self-diagnosis results.

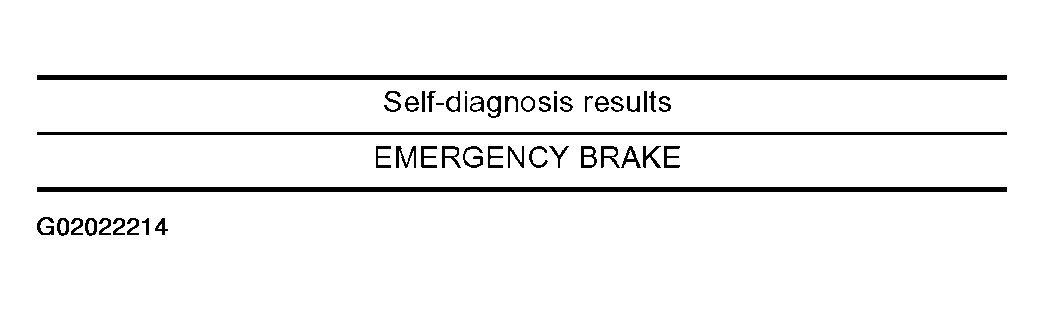

    Fig 1: Checking Self-Diagnosis Result - VDC/TCS/ABS Control Unit 2
    G02022214Courtesy of NISSAN MOTOR CO., U.S.A.

    When any item other that "emergency brake" is indicated in self-diagnosis display, follow the instructions below.

    CAUTION: "Emergency brake" is indicated when control unit itself is detected as an error. If this display item is indicated, replace control unit.

    Is the above displayed in the self-diagnosis display items?

    YES >> Replace the VDC/TCS/ABS control unit and re-conduct the self-diagnosis.

    NO >> Inspection End
