Inspection Procedure

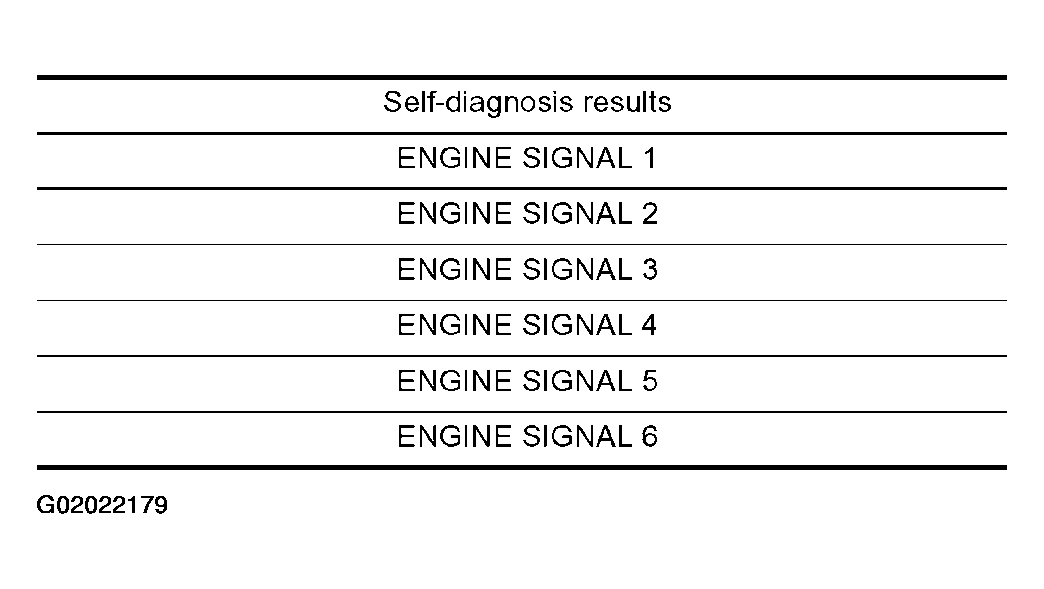

Fig 1: Checking Self-Diagnosis Result - Engine System

Courtesy of NISSAN MOTOR CO., U.S.A.

Is the above displayed in the self-diagnosis display items?

YES >> GO TO 2.

NO >> Inspection End

1. Conduct an ECM self-diagnosis and repair or replace any non-standard items. Re-conduct the ECM self diagnosis.
2. Re-conduct the VDC/TCS/ABS control unit self-diagnosis.

OK or NG

OK >> Inspection End

NG >> Repair or replace any non-standard items. Re-conduct the self-diagnosis.
