Starting The Self-Diagnosis Mode

  1. Turn ignition switch from OFF to ACC.
  2. Within 10 seconds press and hold the function switches "1" and "6" simultaneously for 5 seconds.

    Then the self-diagnosis operates.

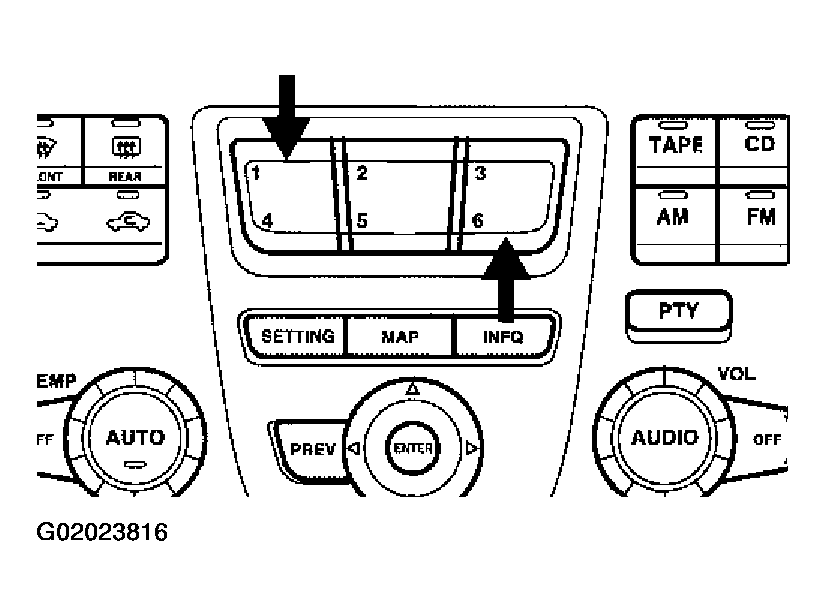

    Fig 1: Starting Self-Diagnosis Mode
    G02023816Courtesy of NISSAN MOTOR CO., U.S.A.
